Description

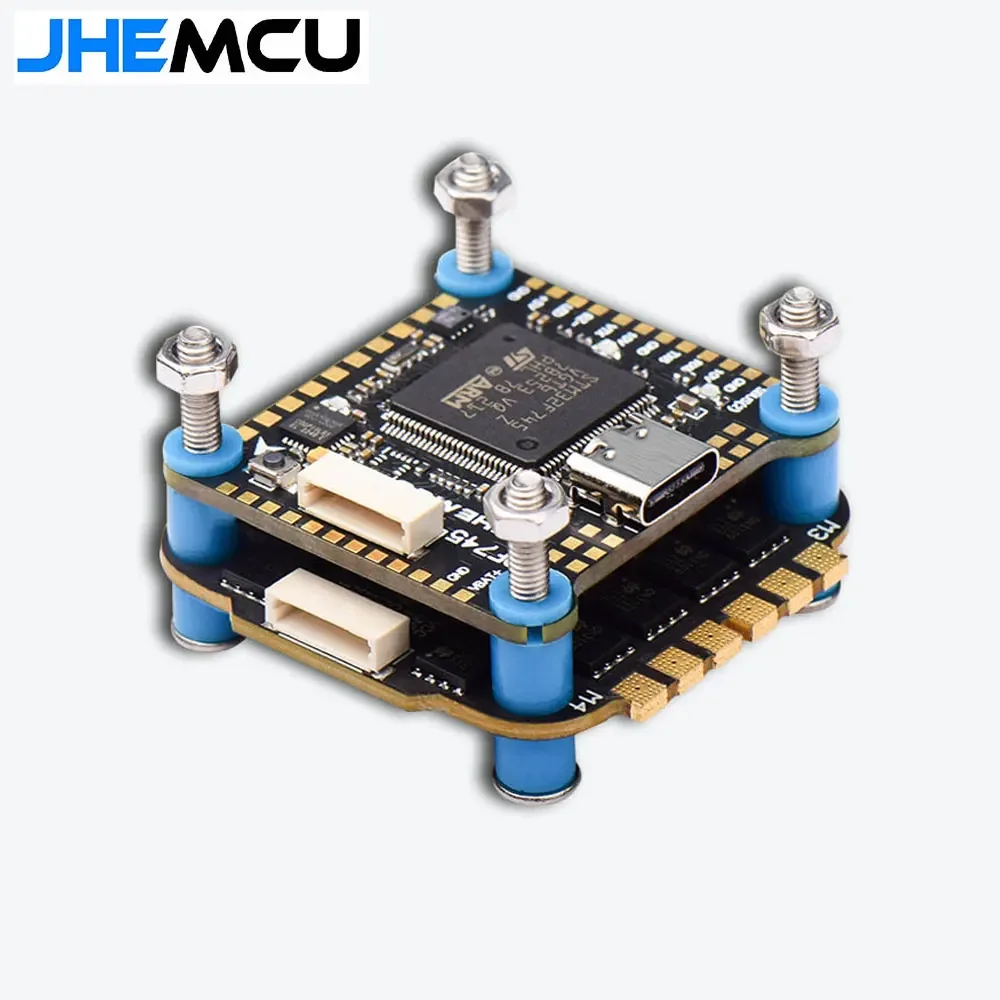

JHEMCU F745 Flight Controller Stack with AM32A60 60A 4-in-1 ESC

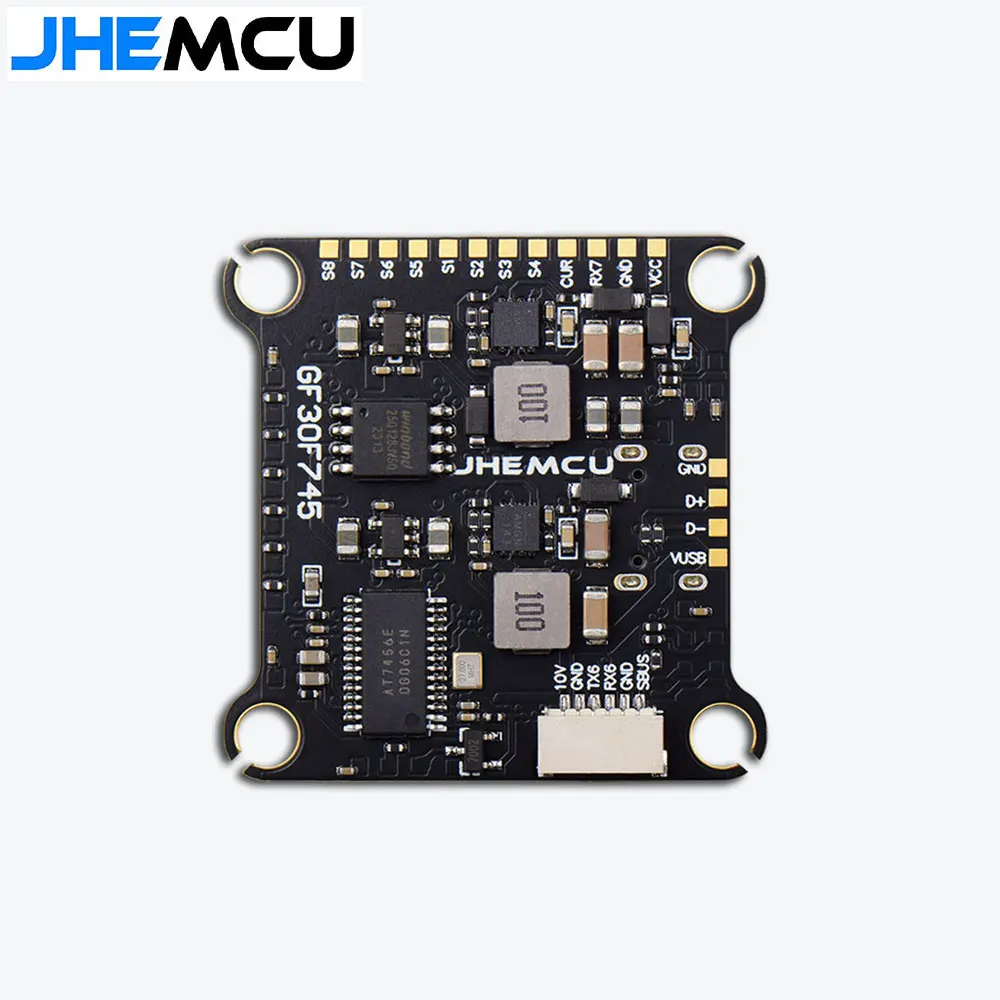

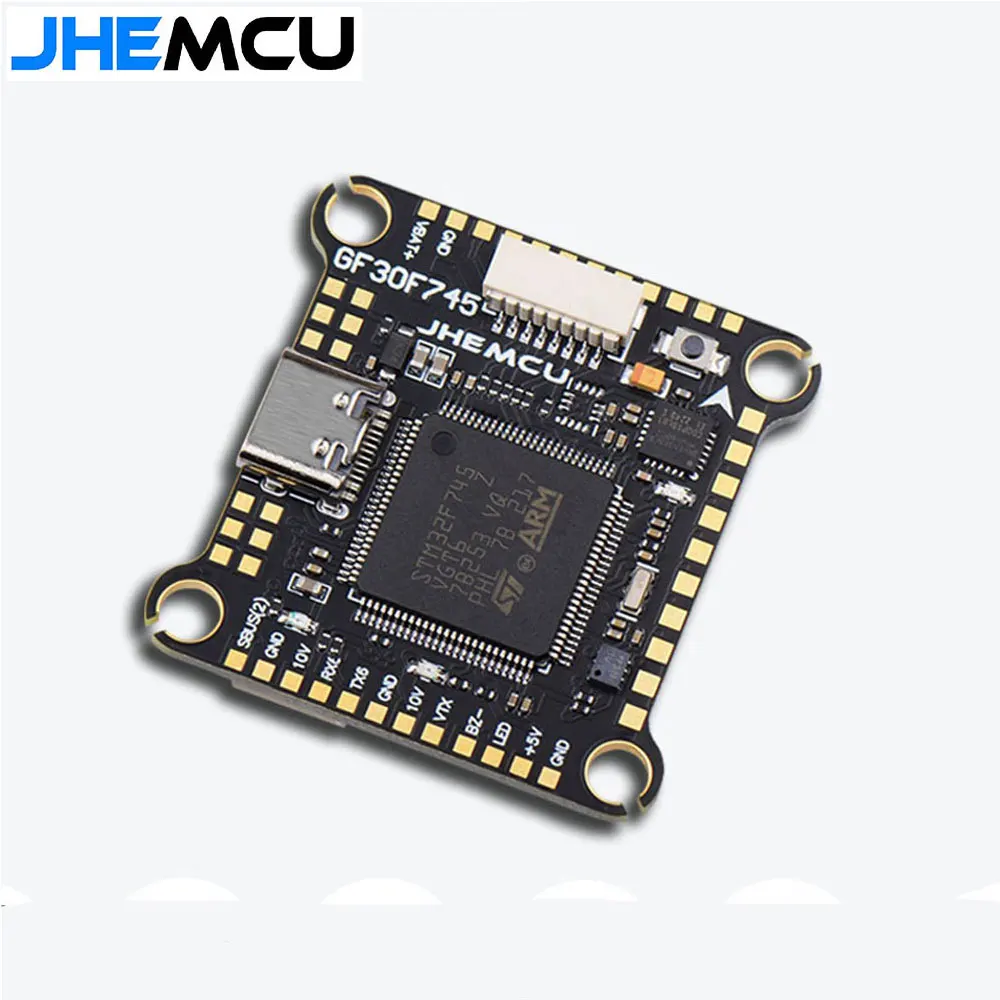

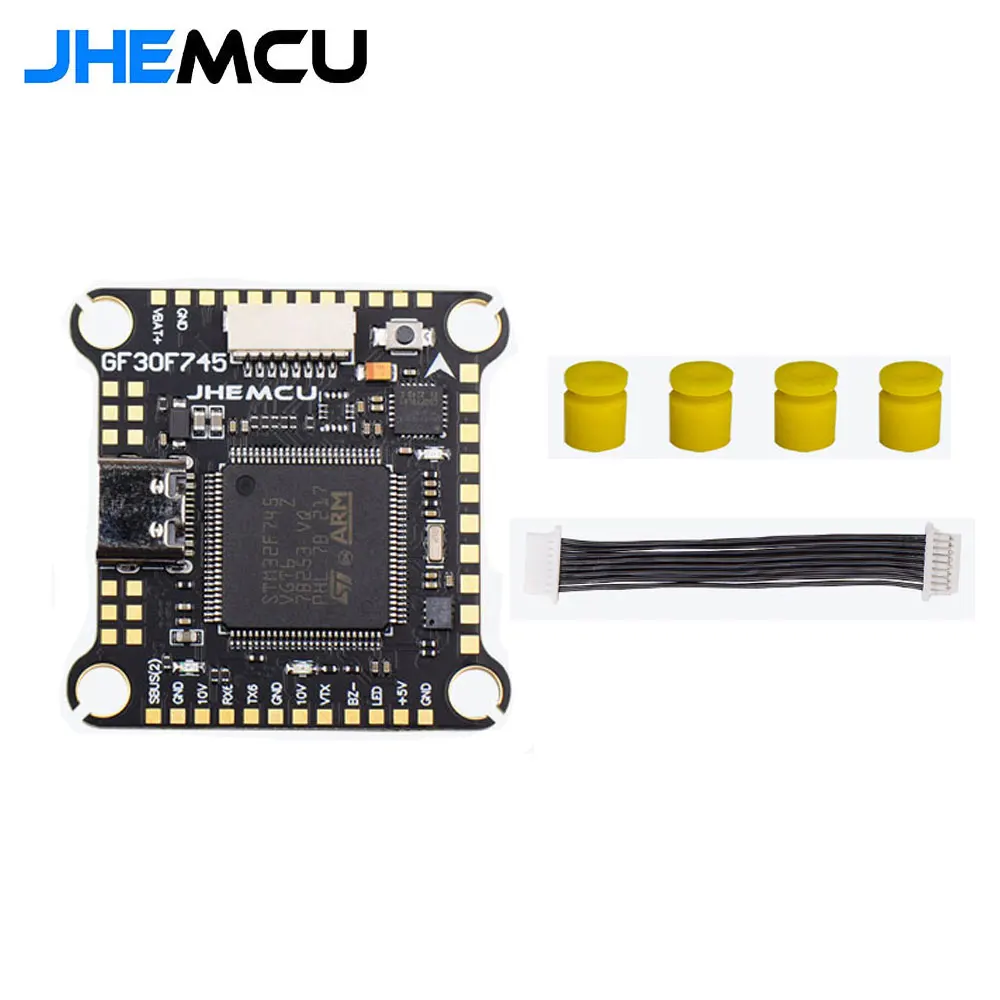

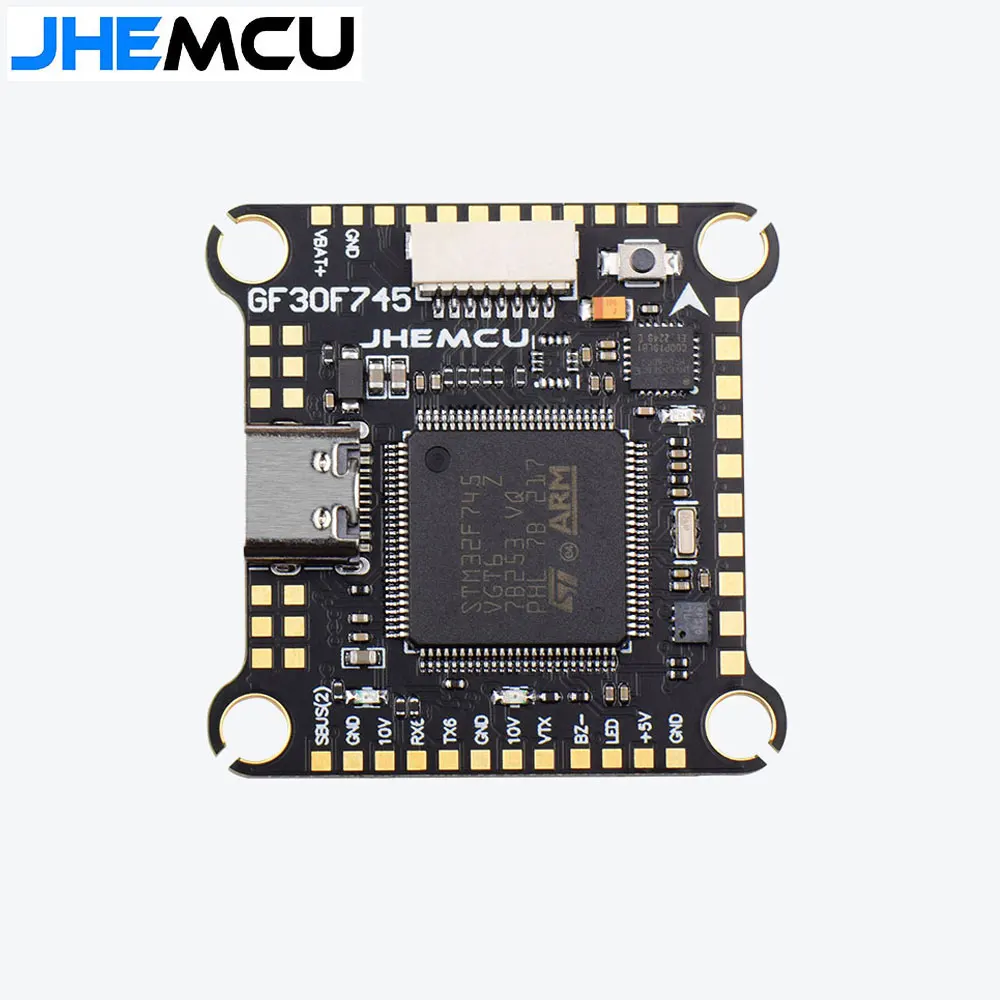

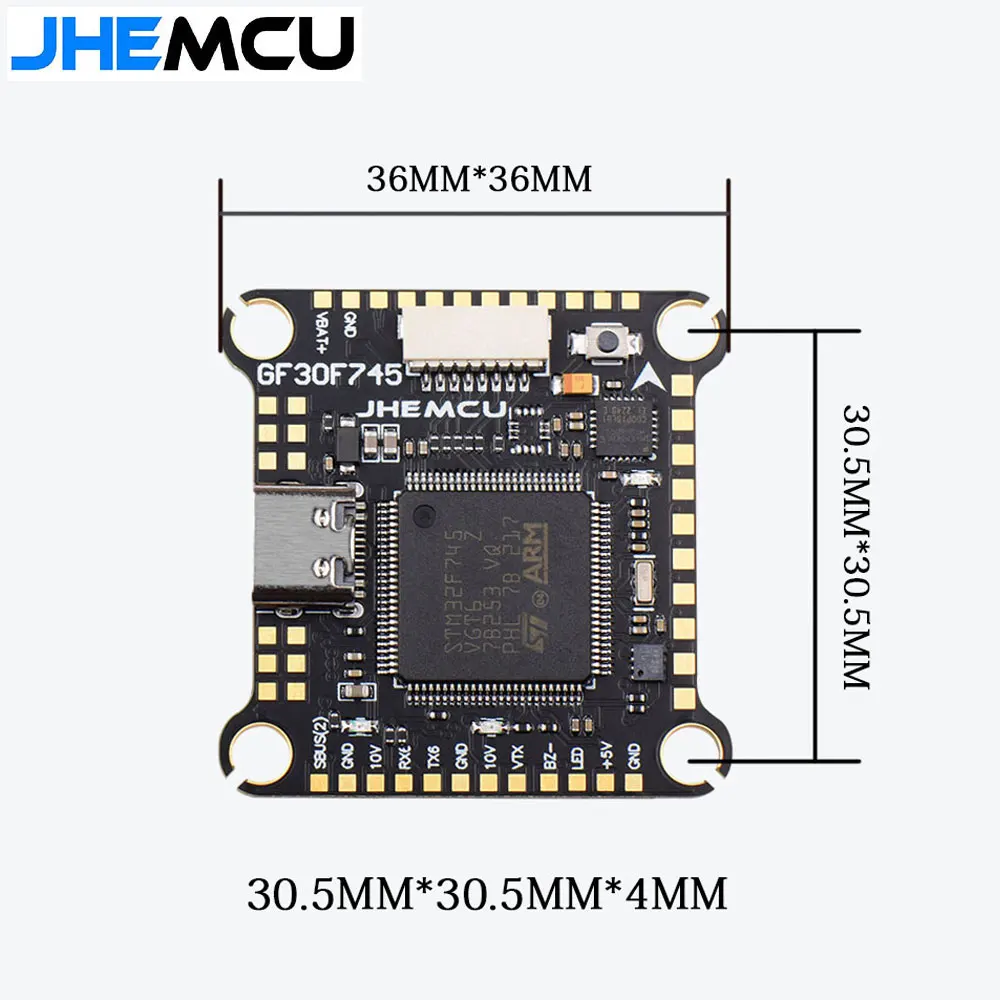

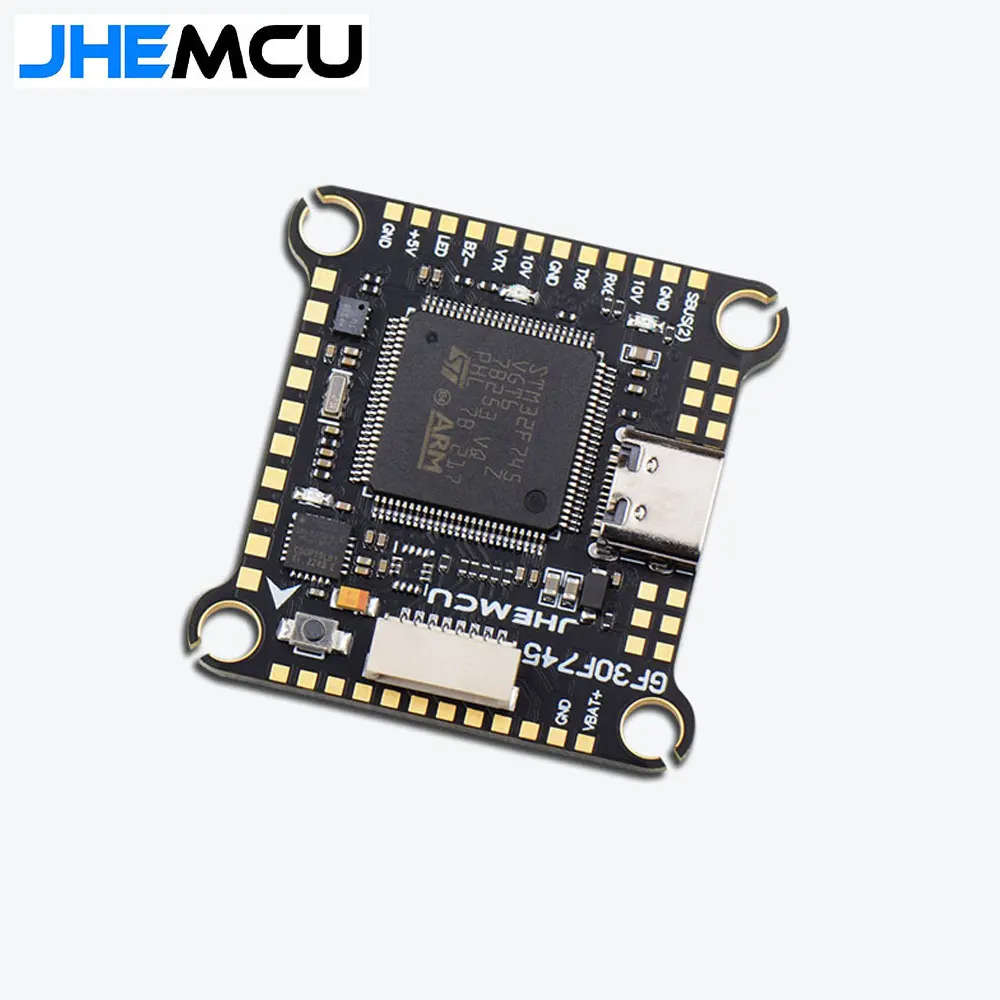

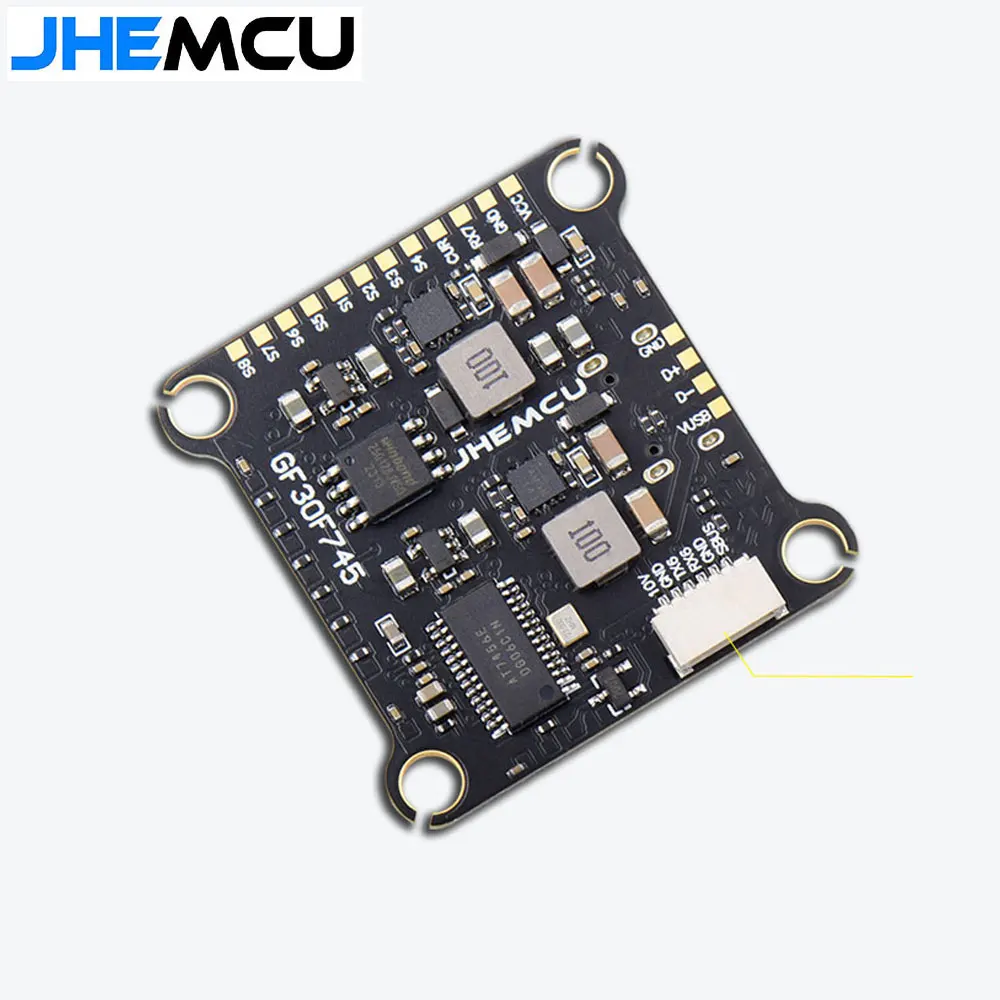

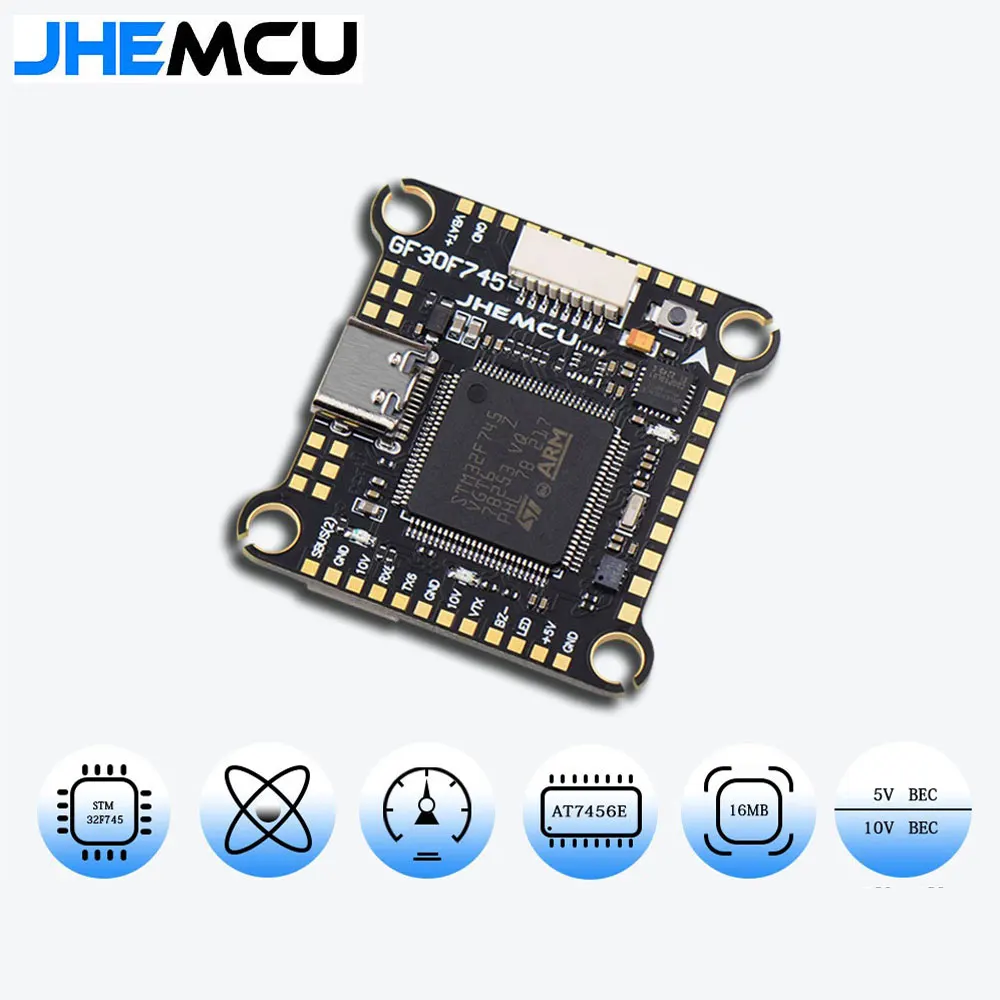

The JHEMCU F745 Flight Controller Stack is a high-performance flight controller designed for RC FPV drones. It features a STM32F745VG microcontroller, ICM-42688-P gyroscope, SPL06 barometer, and AT7456E OSD chip. The flight controller supports various protocols including ELRS, TBS, SBUS, IBS, DSM2, and DSMX.
| Feature | Specification |
|---|---|
| Microcontroller | STM32F745VG (216 MHz) |
| Gyroscope | ICM-42688-P |
| Barometer | SPL06 |
| OSD Chip | AT7456E |
| BEC | 5V/2.5A, 10V/2.0A |
| ESC | AM32A60 60A 4-in-1 ESC |
| Input Voltage | 3-6S (11-27V) |
| Continuous Current | 60A x 4 ways |

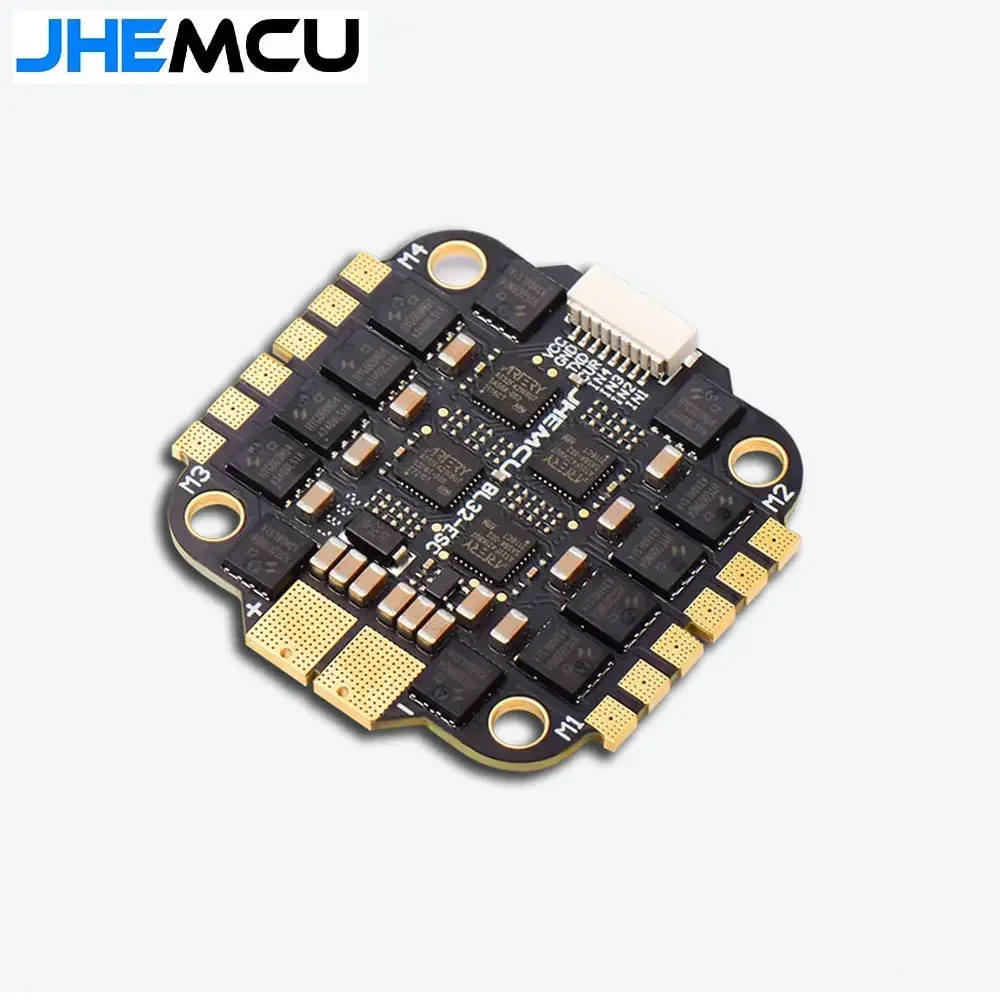

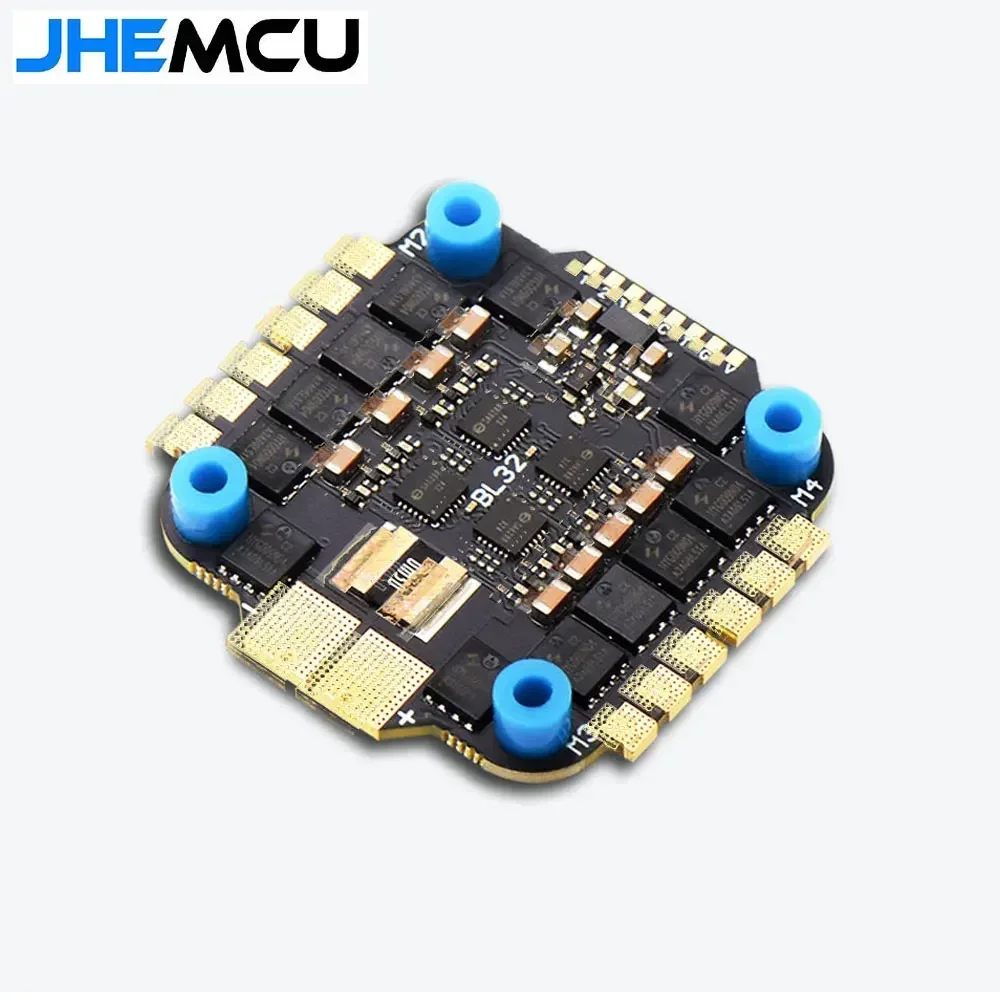

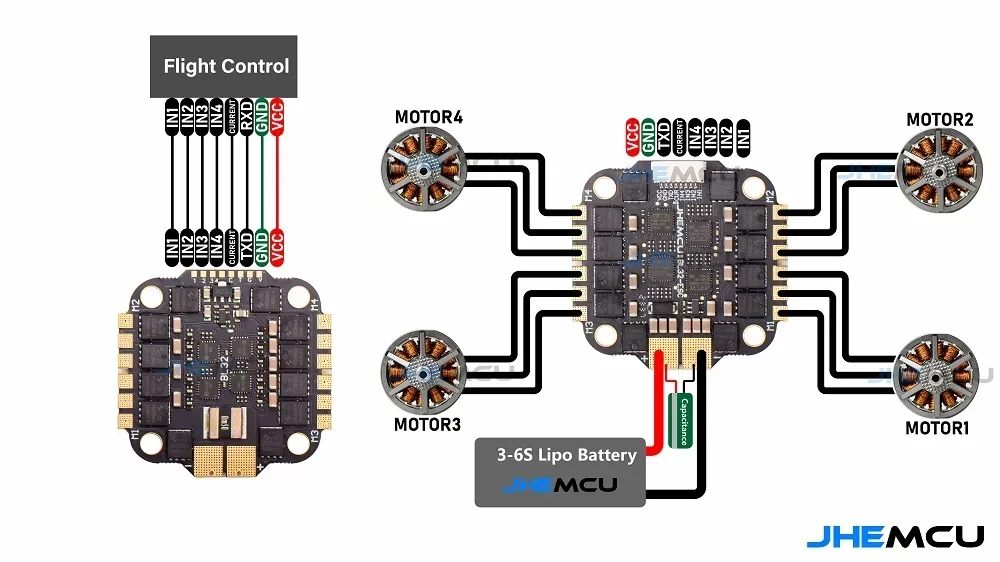

The AM32A60 60A 4-in-1 ESC features a high-performance design with a continuous current of 60A x 4 ways. It supports various protocols including Dshot 150, Dshot 300, and Dshot 600.
g***r –
Great 60A ESC from JHEMCU. It came with BLHeli 32 32.9 installed. I’m using it on a 7″ quad. The pads are big and require a lot of heat to solder motor and power wires. Be sure to completely tin wires before soldering, and use lots of flux. That will make it easier to solder.
