Description

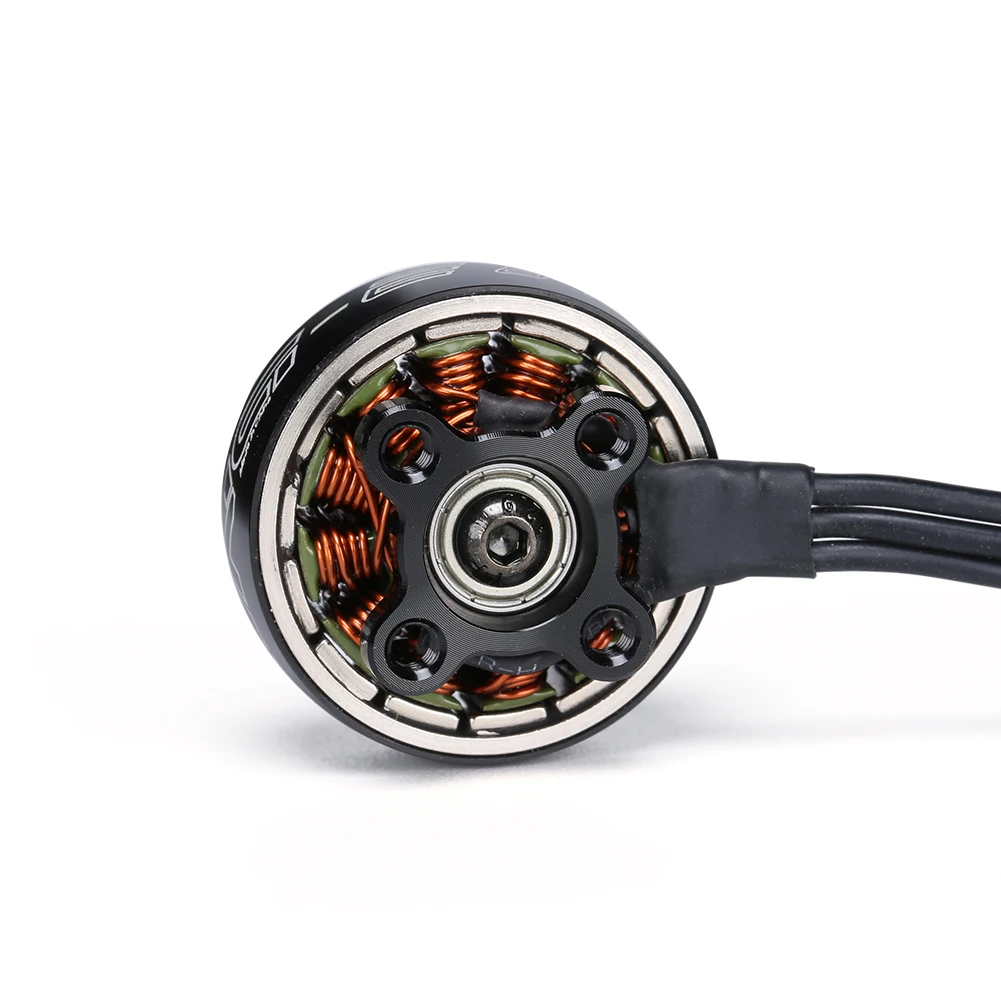

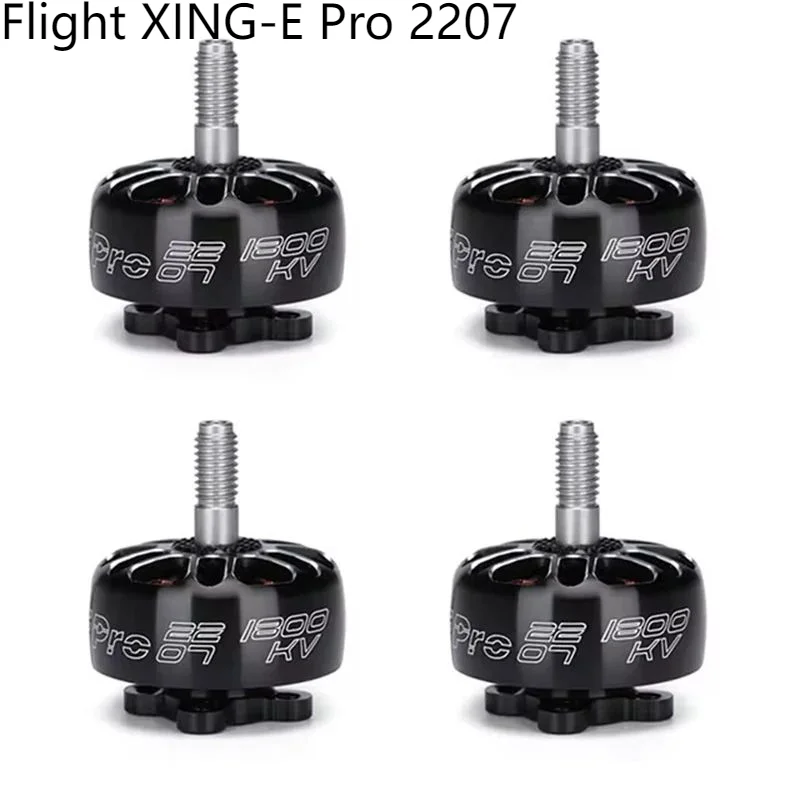

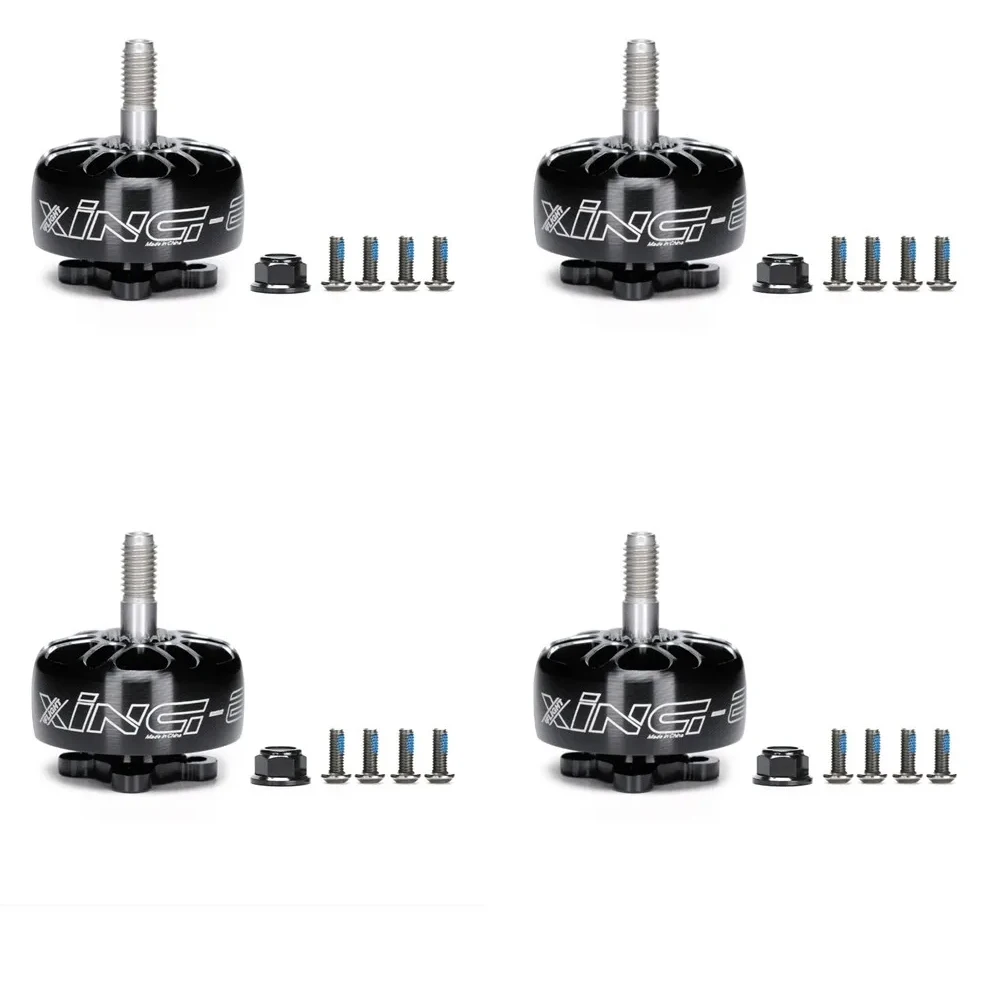

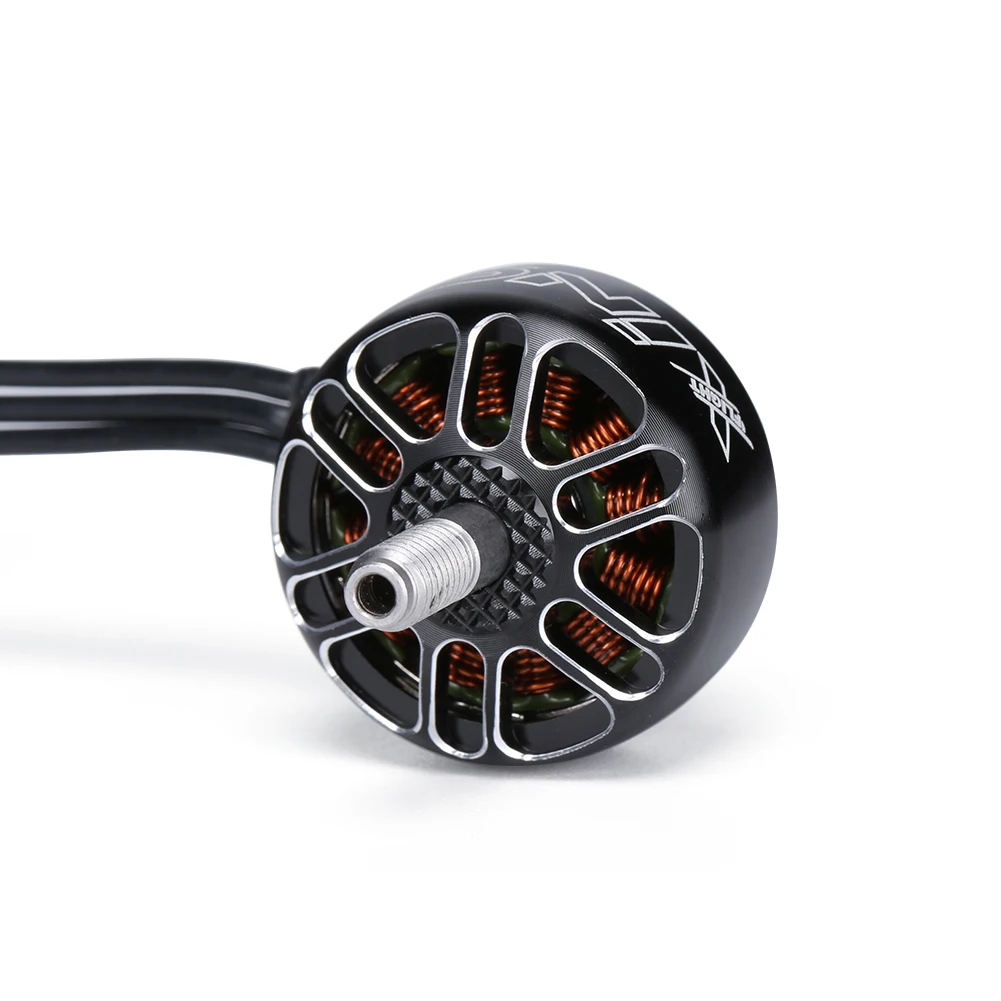

iFlight XING E Pro 2207 Brushless Motor for FPV RC Multicopter Racing Drone Parts

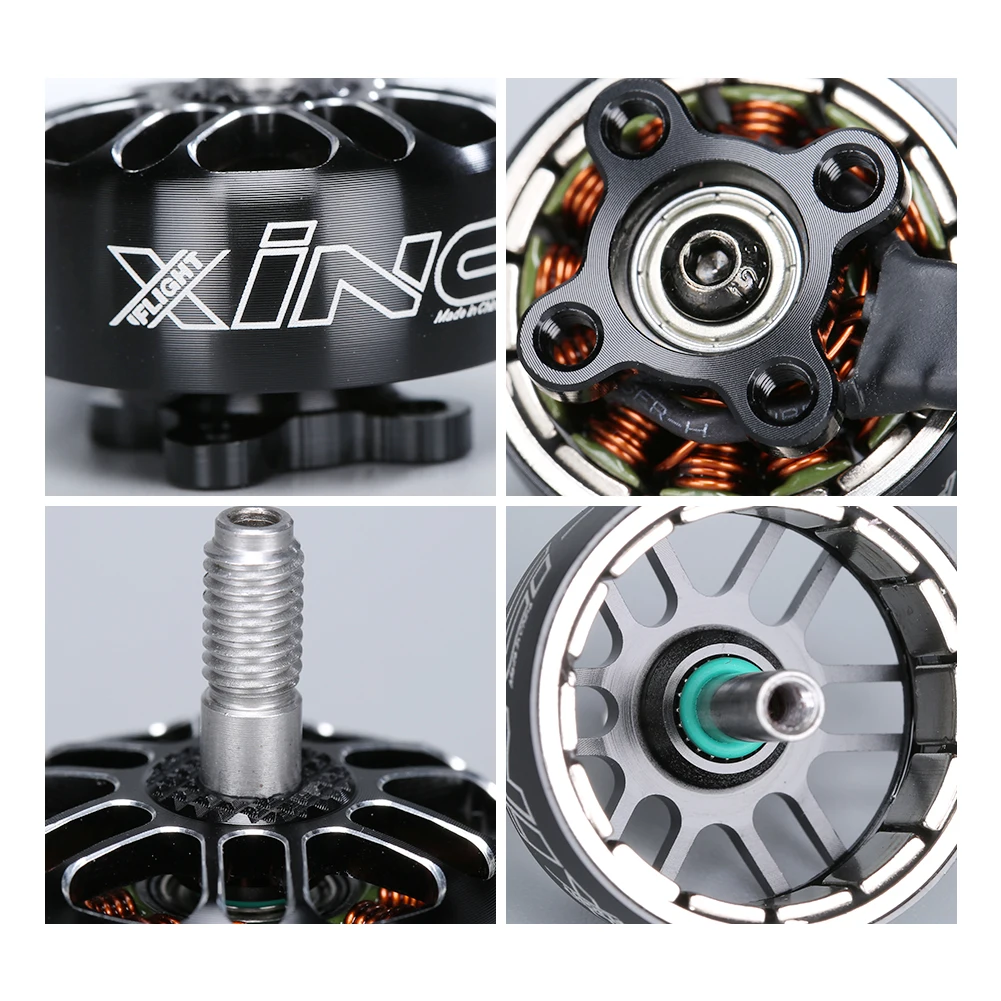

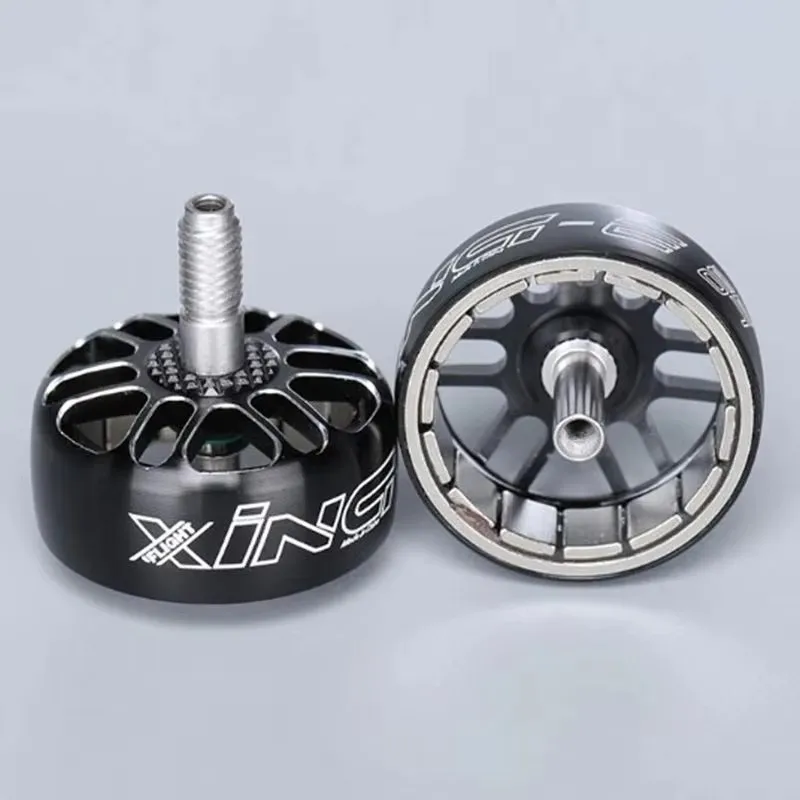

The XING-E series is a strong and powerful FPV motor for FPV racing, offering great value with well-known XING performance. This 2207 sized motor features a high-strength 4mm steel hollow shaft, single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
| Specification | Value |
|---|---|
| Brand Name | iFlight |
| Model | XING-E Pro 2207 |
| KV | 1800KV / 2450KV / 2750KV (Optional) |
| Input Voltage | 3-6S @ 1800KV; 2-4S @ 2450KV / 2750KV |
| Configuration | 12N14P |
| Stator Diameter | 22mm |
| Stator Length | 7mm |
| Shaft Diameter | 5mm |
| Motor Dimension | 28.5×19.7mm (Dia*Len) |
| Weight | 33.8g |
| Idle Current (10V) | less than 1.2A (1800KV); less than 2.0A (2450KV); less than 2.2A (2750KV) |
| Max. Con. Power (180S) | 845.3W@1800KV; 682.1W@2450KV; 800.5W@2750KV |
| Internal Resistance | 81.5mΩ@1800KV; 46.8mΩ@2450KV; 41mΩ@2750KV |
| Max. Current (180S) | 35.22A@1800KV; 42.63A@2450KV |
