Description

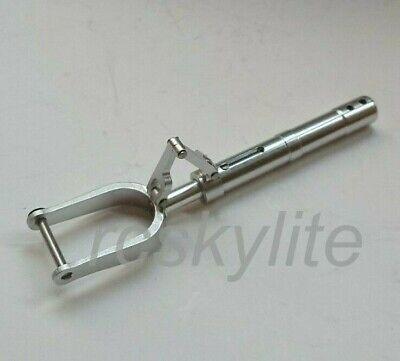

Fork Style Nose Gear 125mm Long with 5mm Pin Hole
Add a high-quality, well-machined and finished oleo strut to your RC airplane for smoother landings and improved ground handling. This fork-style nose gear is suitable for both fixed and retractable landing gears.
Key Features:

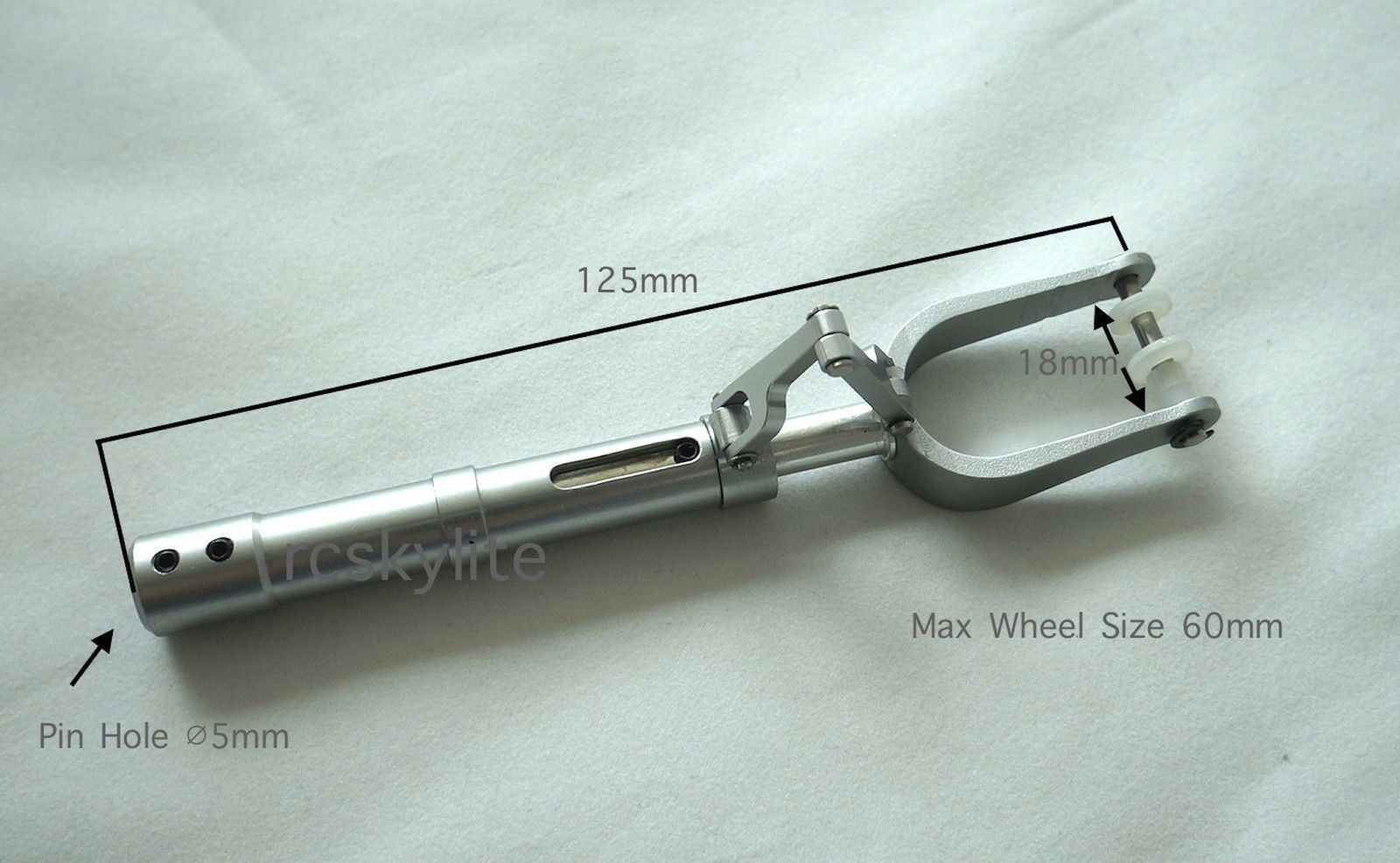

- Total length: 125mm (measured from the top of the strut to the wheel axle)
- 5mm pin hole on the top end for attaching to the retract
- Maximum wheel size: 60mm (2.25″)
- Supports up to 11lbs (5kg) RC plane
Technical Specifications:
| Parameter | Value |
|---|---|
| Strut Length | 125mm |
| Wheel Axel Diameter | 3mm |
| Strut Diameter | 1/2″ (12.75mm) |
| Pin Hole Diameter | 5mm |
| Max Wheel Size | 60mm |
