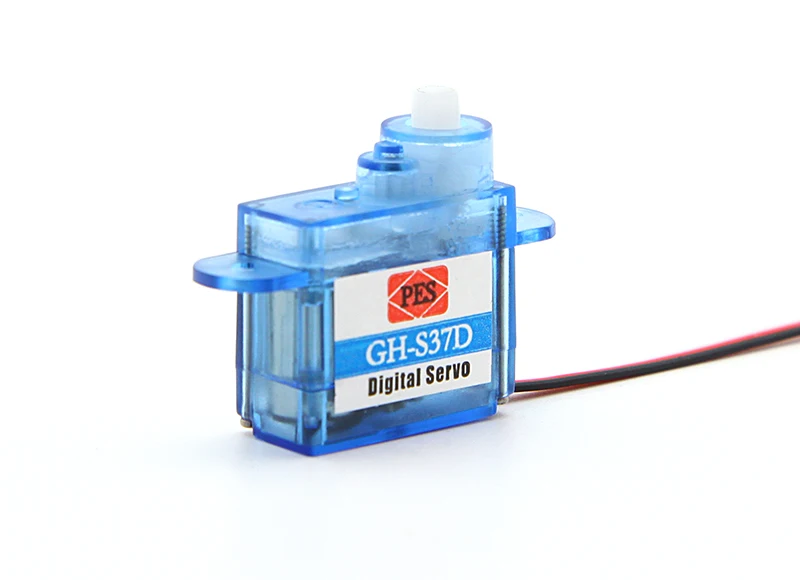

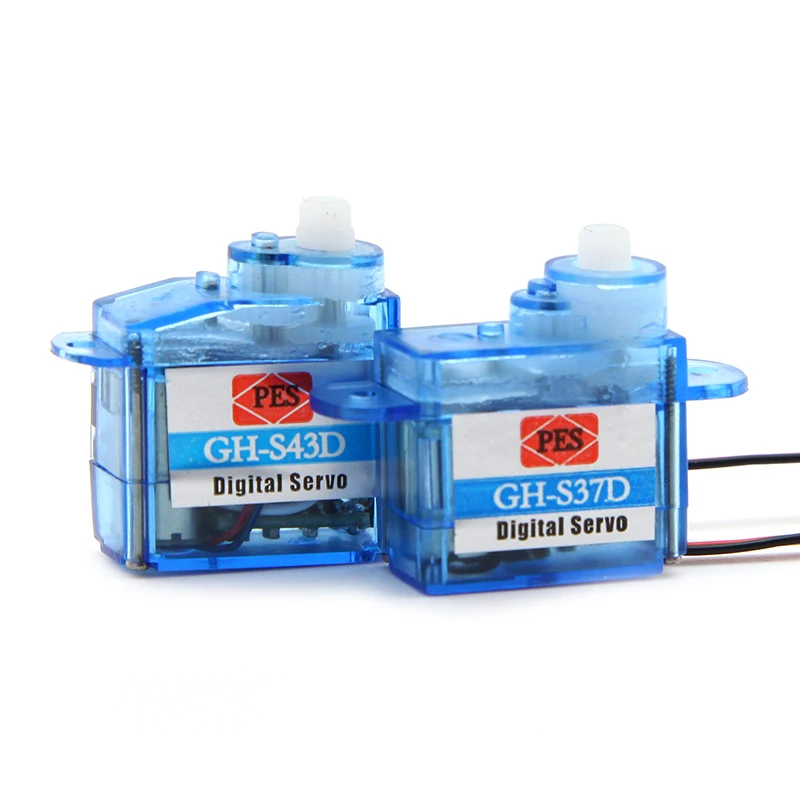

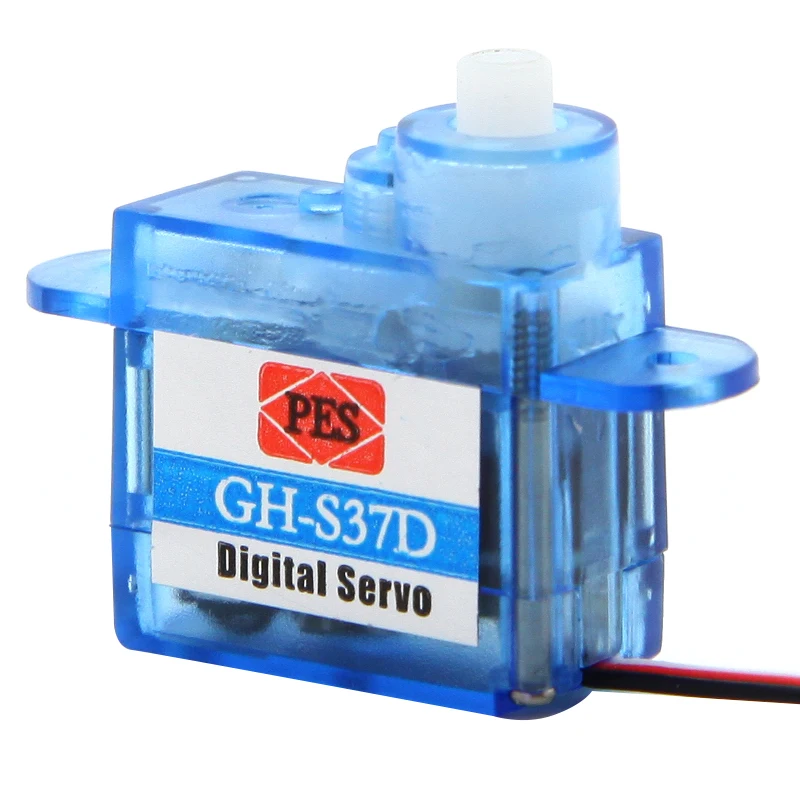

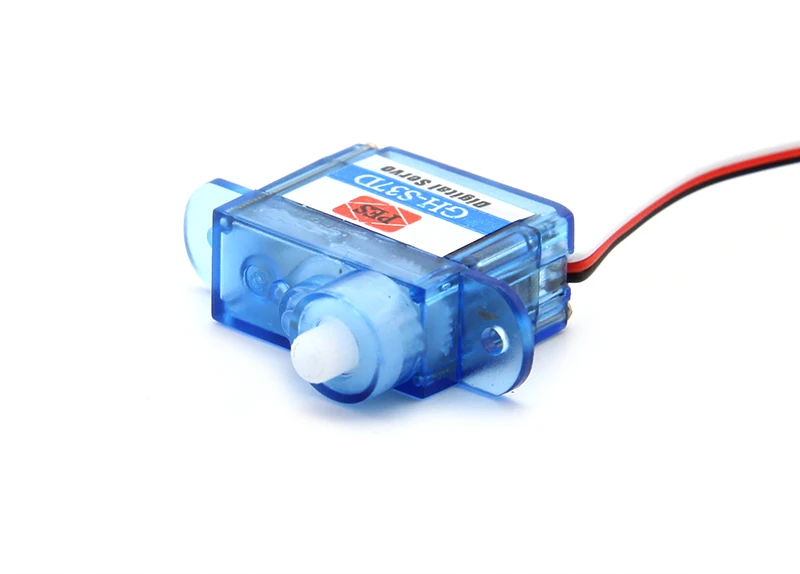

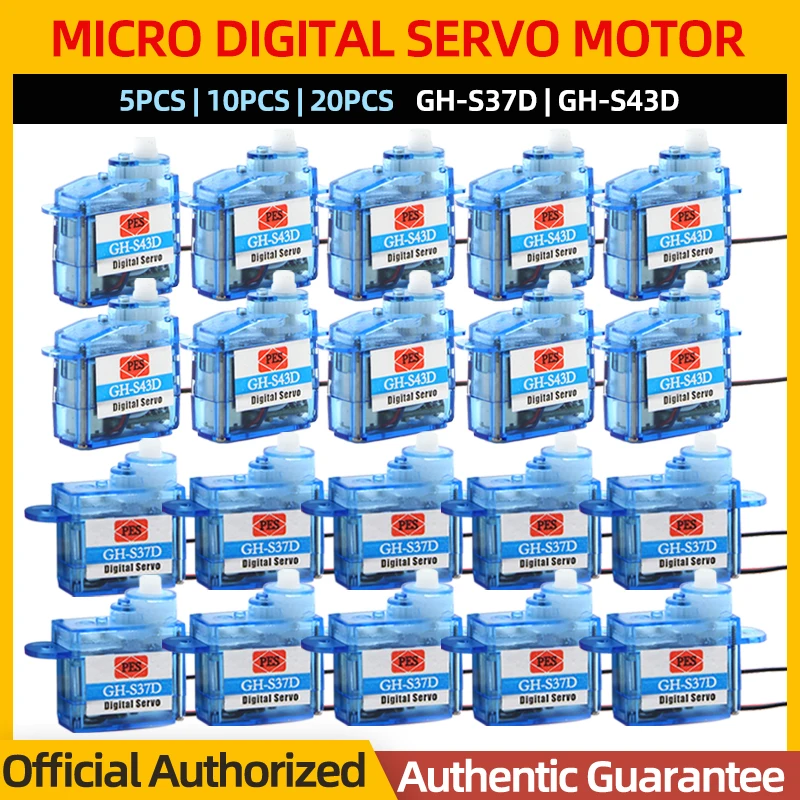

GH-S37D GH-S43D Digital Mini Micro Servo Motors
Introducing the GH-S37D GH-S43D digital mini micro servo motors, designed for RC airplane, helicopter, truck, boat, car, and robot applications. These high-performance motors offer precise control and reliable operation.
| Specifications | GH-S37D |
|---|---|
| Weight | 3.7g |
| Dimensions | 20.0 x 8.75 x 22.0 mm |
| Torque | 0.6 kg/cm (at 3.6V), 0.8 kg/cm (at 4.8V) |
| Speed | 0.13 sec/60° (at 3.6V), 0.09 sec/60° (at 4.8V) |
| Motor Type | Hollow Cup |
| Gear Type | Plastic |
| Working Voltage | 3.6V-4.8V |
| Working Temperature | 0°C-60°C |
| Standard Signal | 1000-2000 microseconds |
| Working Angle | 90° |
| Current | <350mA |
| Dead Zone Setting | 3 usec |
| Cable Length | 150 mm |

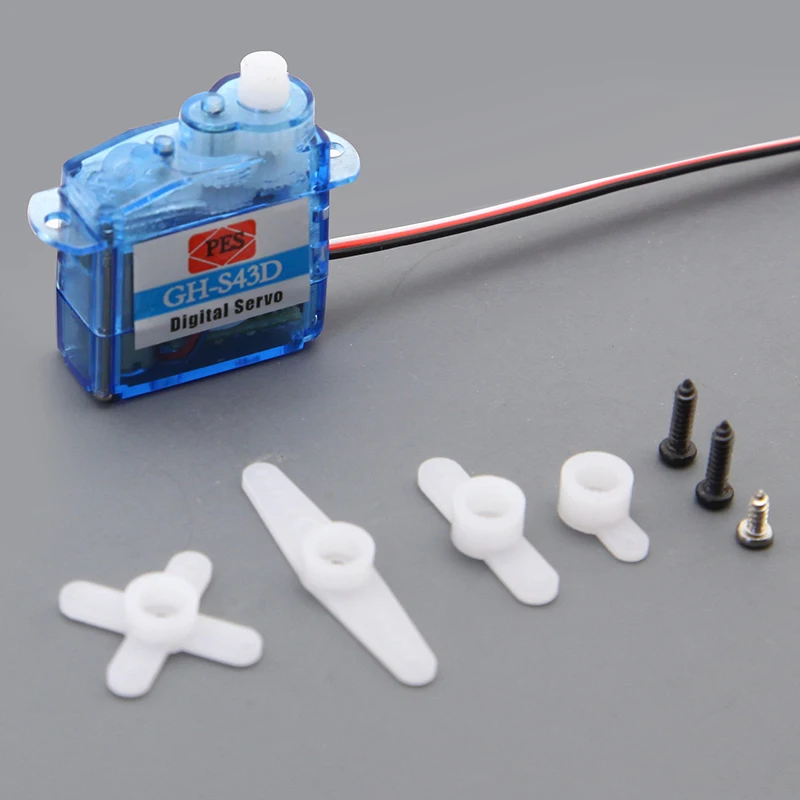

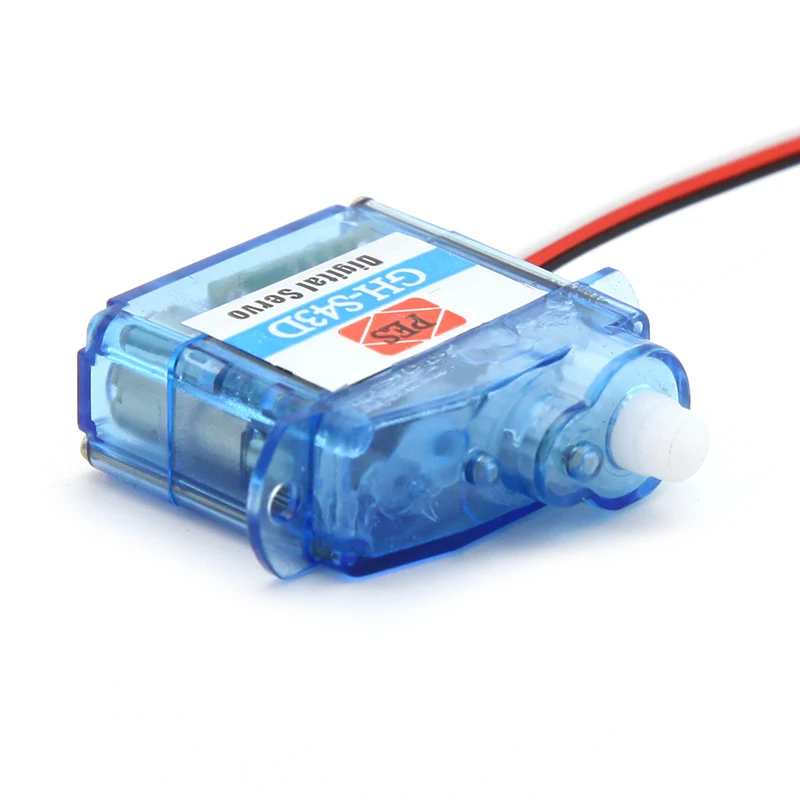

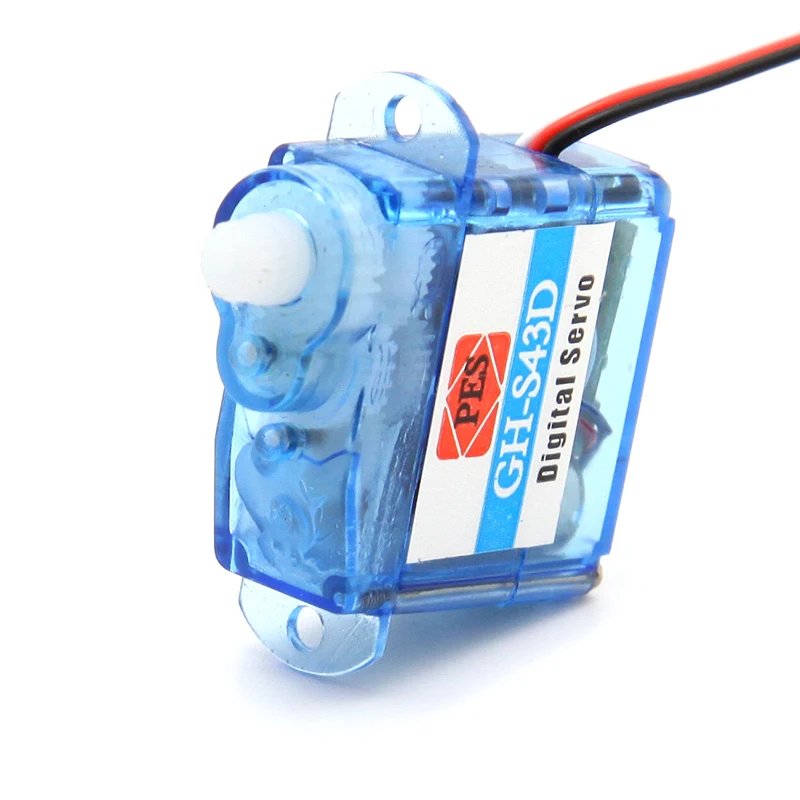

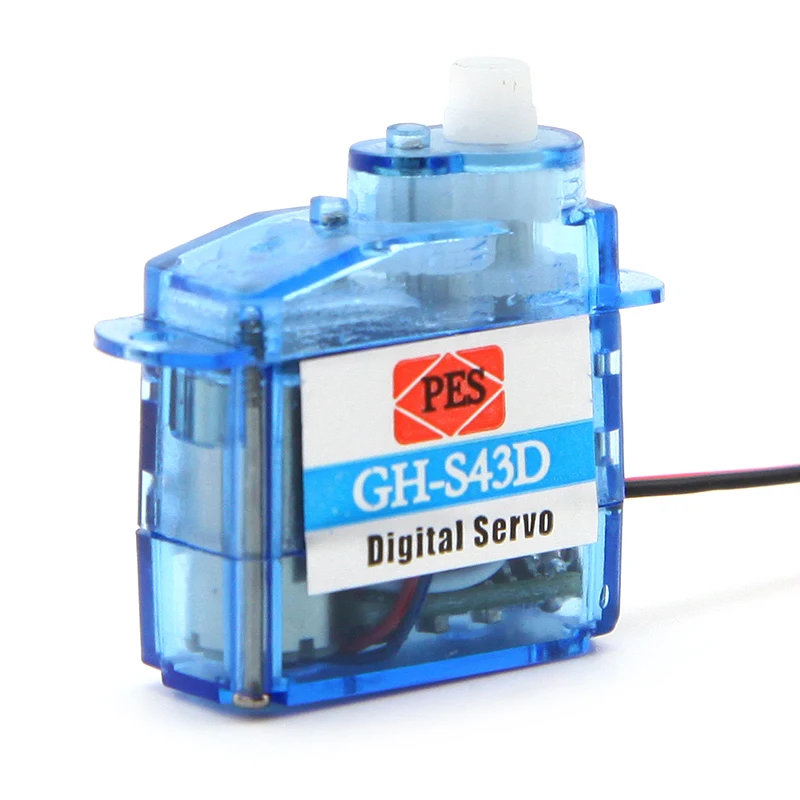

Similarly, the GH-S43D digital mini micro servo motor offers the same specifications as the GH-S37D, with the exception of a slightly heavier weight and larger dimensions.
