Description

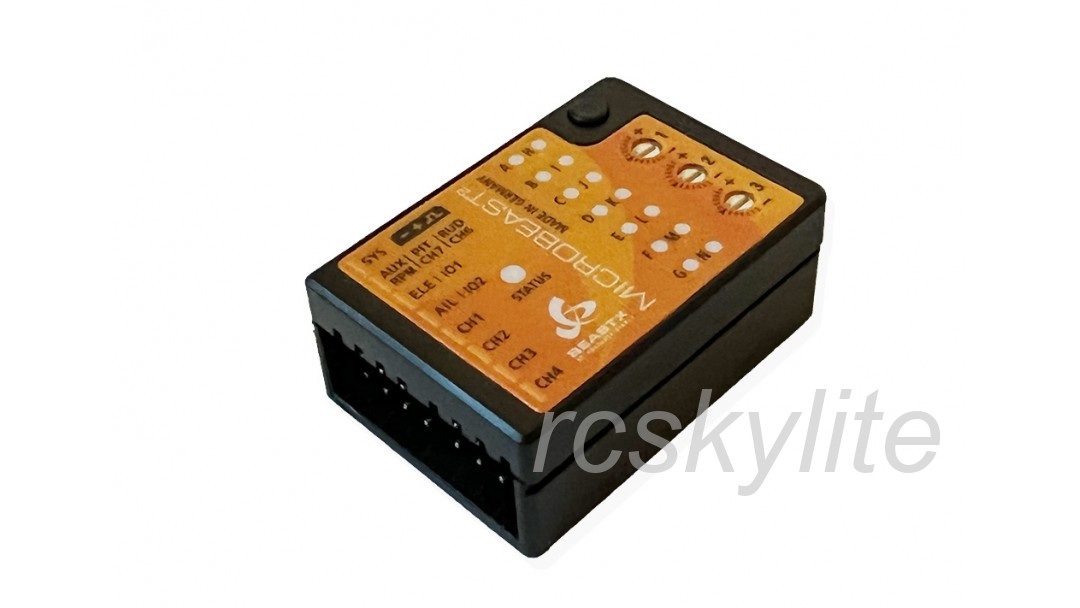

ALIGN MICROBEAST ULTRA HEGBP301 is a 3-axis flybarless control system for RC model helicopters. It uses MEMS sensors for precise movement detection, supports quick field setup without a programming box, and can be expanded with optional USB2SYS and StudioX software. It also supports firmware upgrades and advanced features such as AttitudeControl.
Microbeast Plus v5.2
Quick Statt Manual Download
Microbeast Plus v5.2
Quick Reference Card Download
Microbeast Plus v5.0
Quick Start Manual Download
Microbeast Plus v5.0
Quick Reference Card Download
Specifications:
- Input voltage: 3.5V – 8.5V DC
- Processor: 32 Bit ARM
- Sensor: 6-Axis MEMS (Gyro + Accelerometer)
- Dimensions: 36 x 25 x 14 mm
- Weight (w/o wiring): approx. 11g
- 3 swash plate servos
- Maximum adjustable servo update rate: 200Hz
- Swash plate mixing types: mCCPM, 90°, 120°, 135°, 140°
- 1 rudder servo
- Rudder servo support: 1520µs, 960µs, or 760µs
- Maximum adjustable servo update rate: 560Hz
- When using a SingleLine receiver: throttle output, auxiliary output for landing gear, position lights, or other functions
- Signal inputs: standard receiver channels, Spektrum DSM2/DSMX satellite, JR RJ01 DMSS satellite, Futaba S.Bus, SRXL, SPPM, and more
- Sensor board input for RPM sensor connection

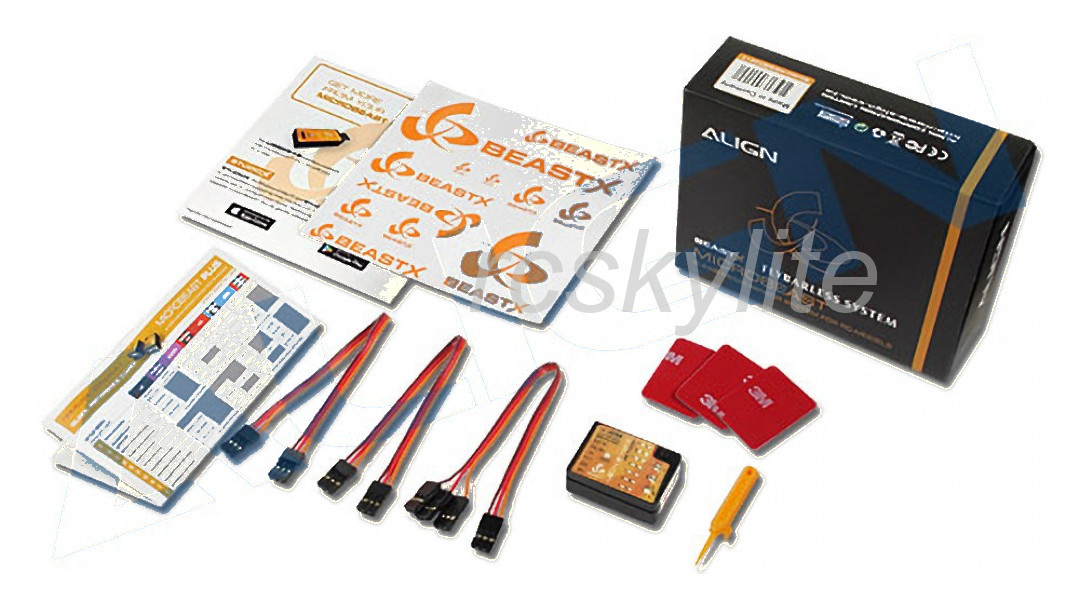

Package Includes:
-
- MICROBEAST² ULTRA x 1
- Receiver connection cables x 3
- 3M adhesive pads x 2
- Adjustment tool x 1
- Quick start manual poster x 1
- Plastic quick reference card x 1
- Sticker set x 1
