Description

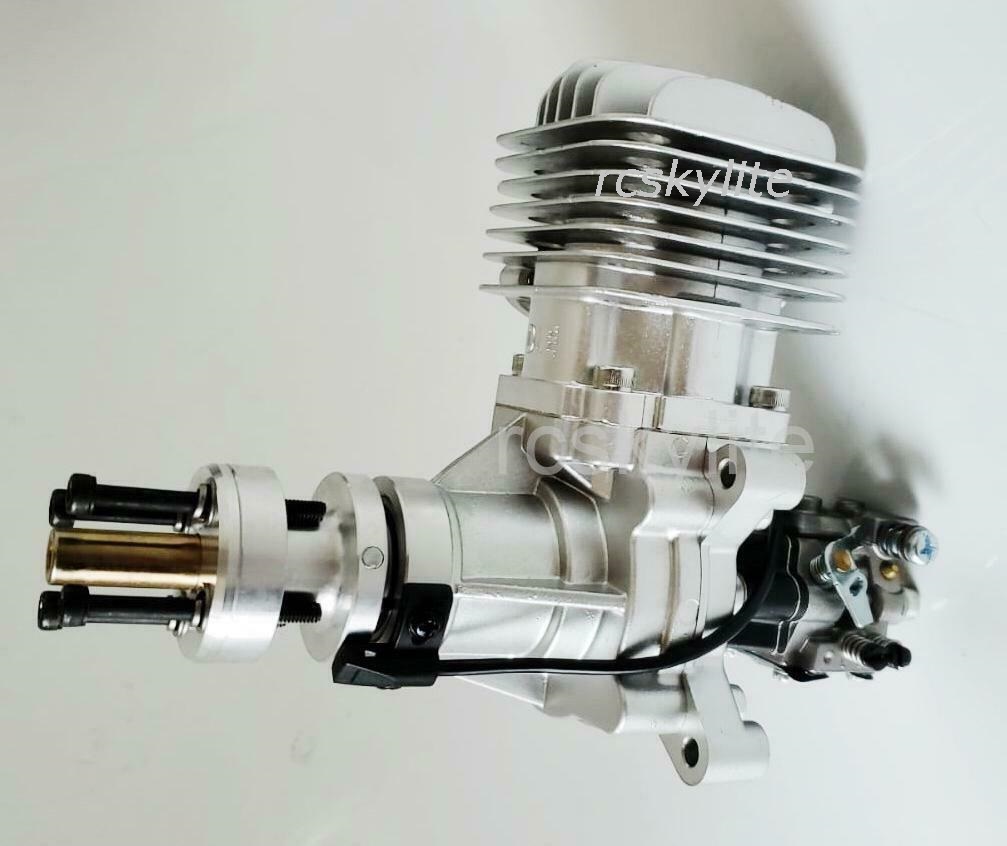

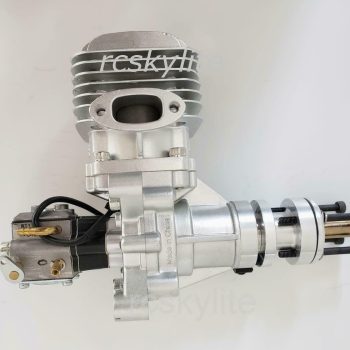

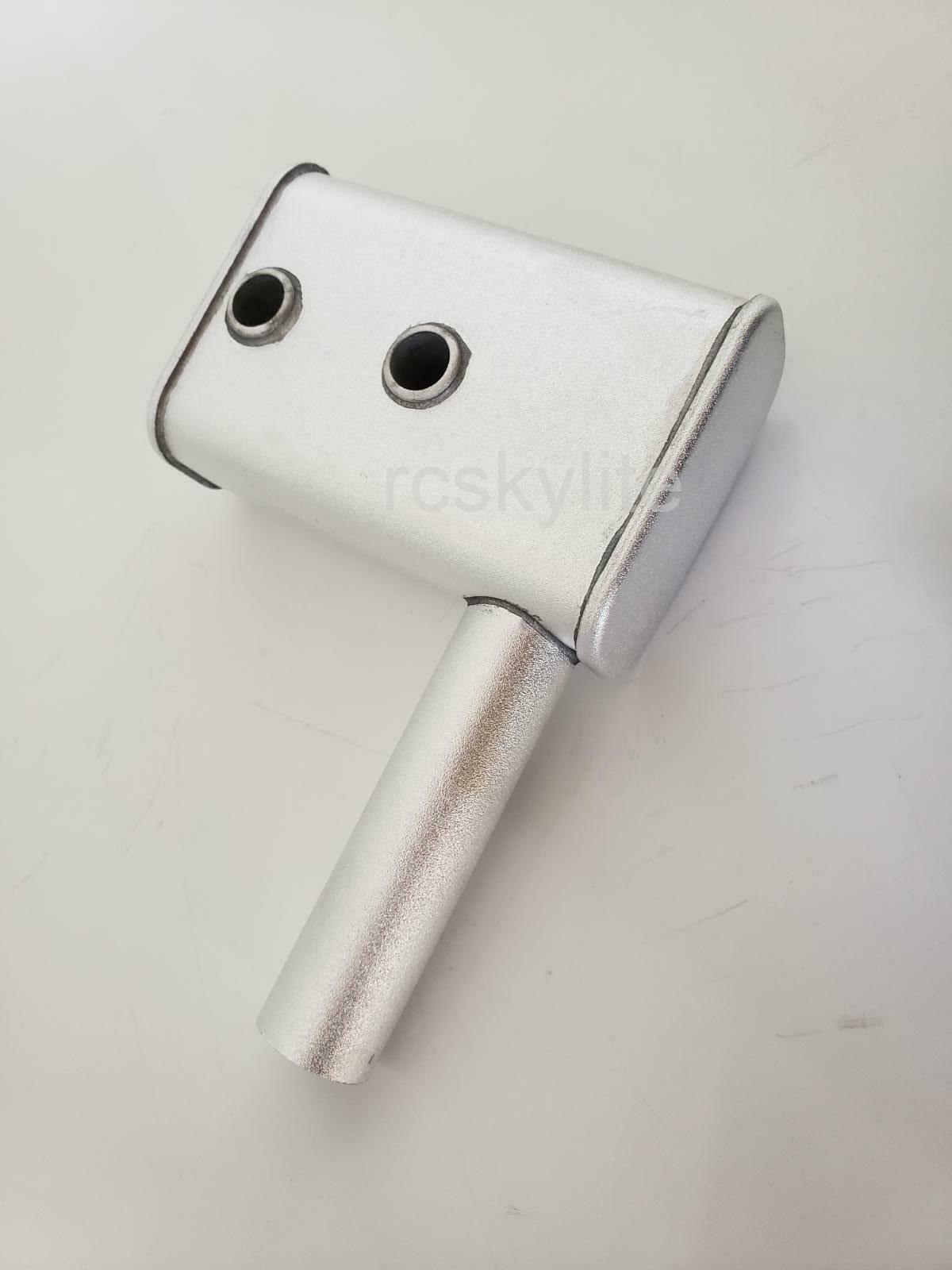

DLE30 Gas Engine 30cc Single Cylinder with Muffler
Direct from DLE factory, this high-performance gas engine is designed for RC airplanes. Key features include:
- A DLE 30cc Engine with Auto Advancing Electronic Ignition

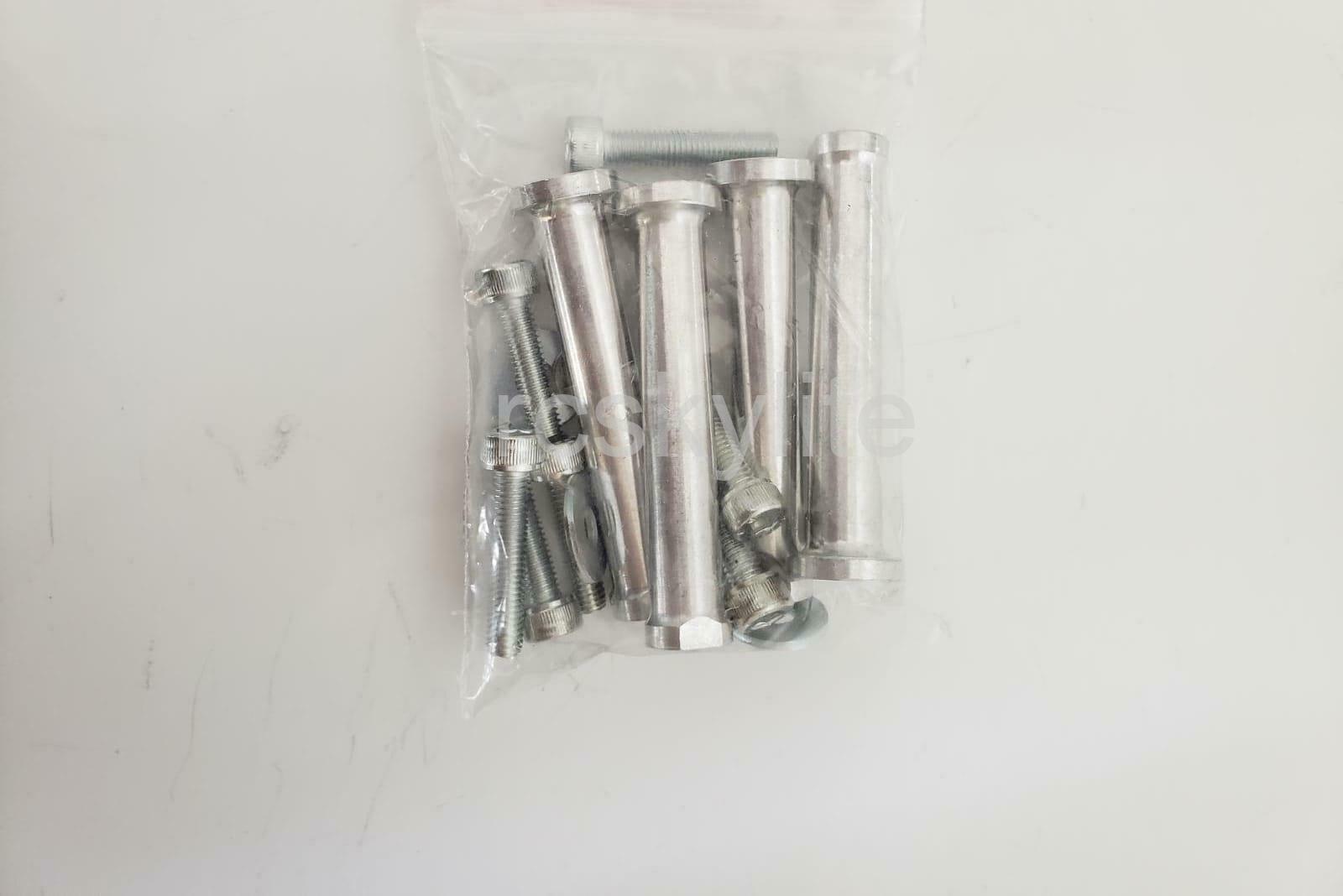

- Aluminum Standoffs and Bolts for added durability

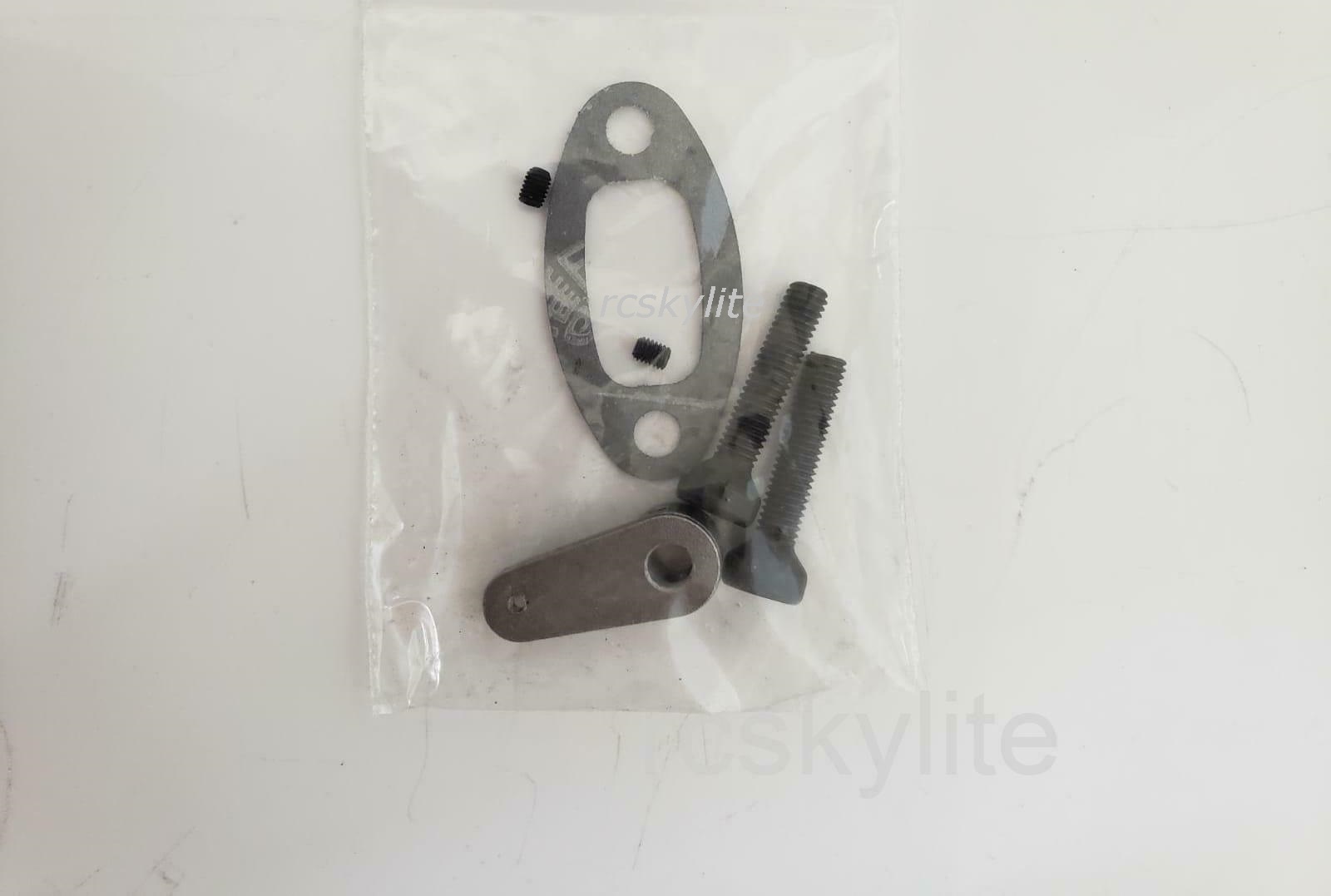

- Tillotson Pump Carby & Alloy Throttle arm extension for precise control
| Specification | Value |
|---|---|
| Power | 3.7HP/8500rpm |
| Idle Speed | 1600rpm/min |
| Pulling Force | 8.5KG (100 meters Altitude), 7.5KG (1800 meters Altitude) |
| Aircraft Propeller | 18×8, 18×10, 19×8, 20×8 |
| Spark Plug | NGK CM6 |
| Exhaust Amount | 30.5cm 3 |
| Diameter x Stroke | 36mm x 30mm |
| Compression Ratio | 7.6:1 |
| Lubricating Capacity | 30:1 |
| Weight | Main engine: 910g, Exhaust Pipe: 60g, Ignition equipment: 120g |
