Description
DLE85 85cc Gas Engine for RC Airplanes
Experience the power and performance of the DLE85 85cc gas engine for your RC airplane. This engine is designed for giant-scale enthusiasts, offering smooth single-cylinder power and a vibration-dampening engine mount to reduce vibration. The exhaust extension on the included muffler aids in installation and helps protect the engine and muffler in the event of a hard landing.

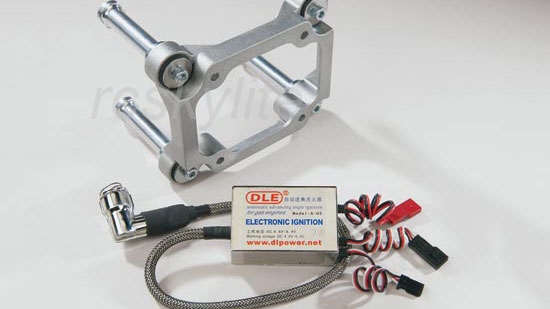

The DLE85 engine features an ignition module that accepts input voltages from 4.8V to 8.4V and includes an engine mount, spark plug, engine standoffs, and muffler with exhaust extension. The engine is designed for use with unleaded gasoline and two-stroke oil, and requires a 4.8-6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition.
Key Features:

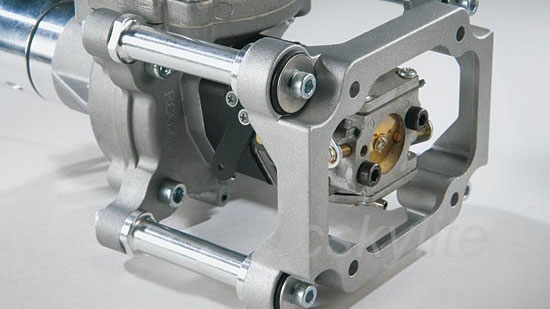

- Vibration-dampening engine mount
- Exhaust extension on included muffler
- Ignition module accepts input voltages from 4.8V to 8.4V
- Smooth single-cylinder power
Product Specifications:
| Spec | Value |
|---|---|
| Engine Weight (Only) | 68 oz (1930 g) |
| Muffler Type | 2-piece aluminum |
| Ignition Weight | 4.58 oz (110g) |
| Muffler Weight | 8.8 oz (250 g) |
| Displacement | 5.18 cu in (84.88 cc) |
| Oil Type & Content | 30:1 2-cycle oil mixture |

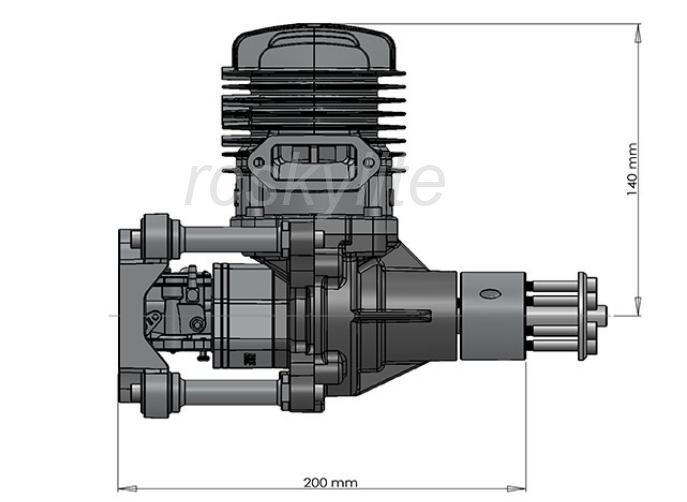

| Product Length | 7.87″ (200mm) from mount to front of prop hub |
| Bore | 2.05″ (52mm) |
| Crankshaft Type | Threaded |
| Power Type | Gas |
| Plug Type | NGK CM6 |
| Stroke | 1.57″ (40mm) |
| Cylinders | Single |
| Total Weight | 6.04lbs (2744g) |
| Product Height | 5.51″ (140mm) from center of crankshaft to top of cylinder head |
| Prop Range | 25 x 10 – 27 x 8 |
| Starter Type | Hand Held Starter |

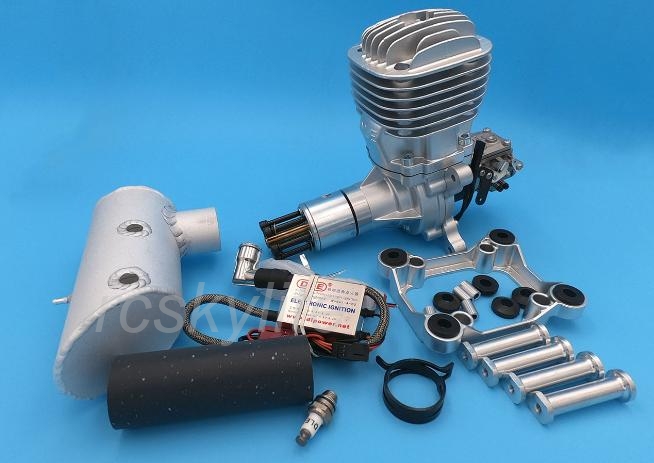

| Package Includes | (1) DLE-85 Engine with Ignition Module, (1) Spark Plug, Engine Standoffs, (1) Engine Mount, (1) Muffler w/Exhaust Extension, (1) Fiber Muffler Gasket, (1) Product manual |
