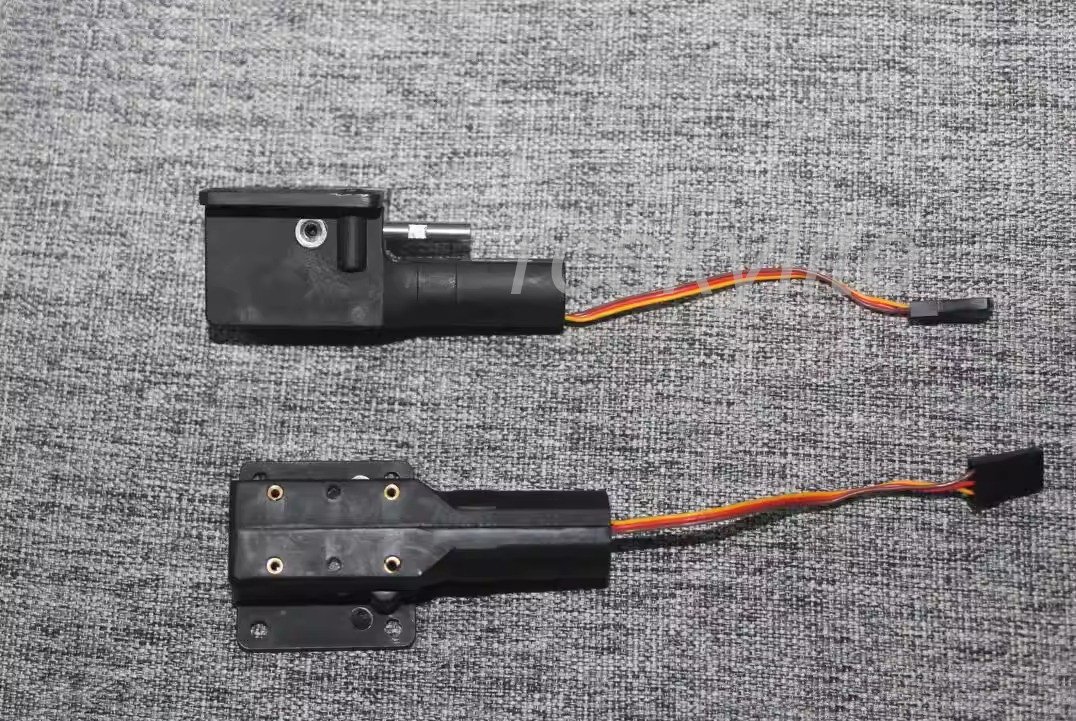

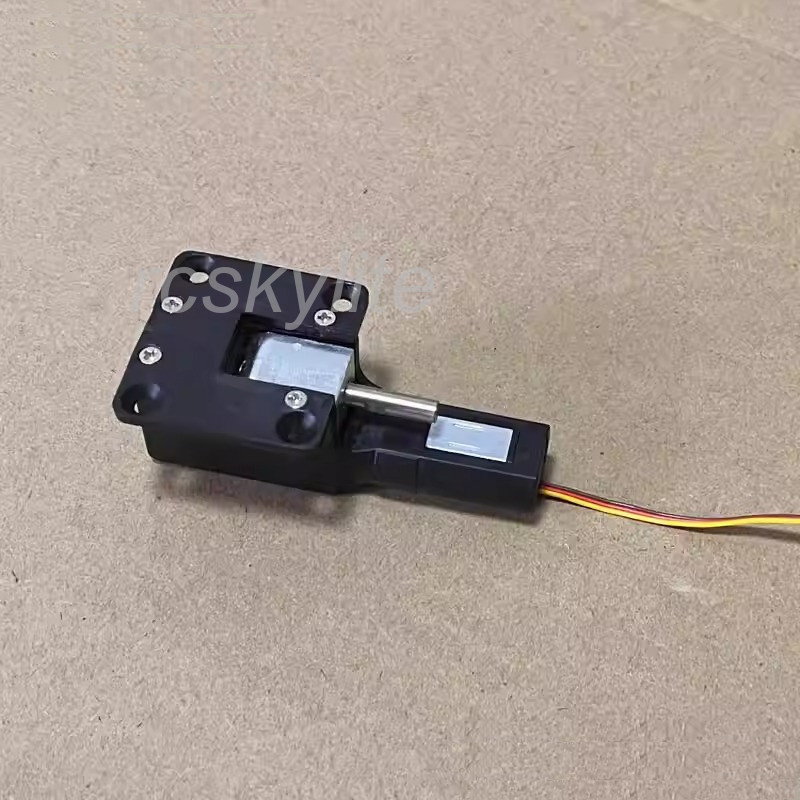

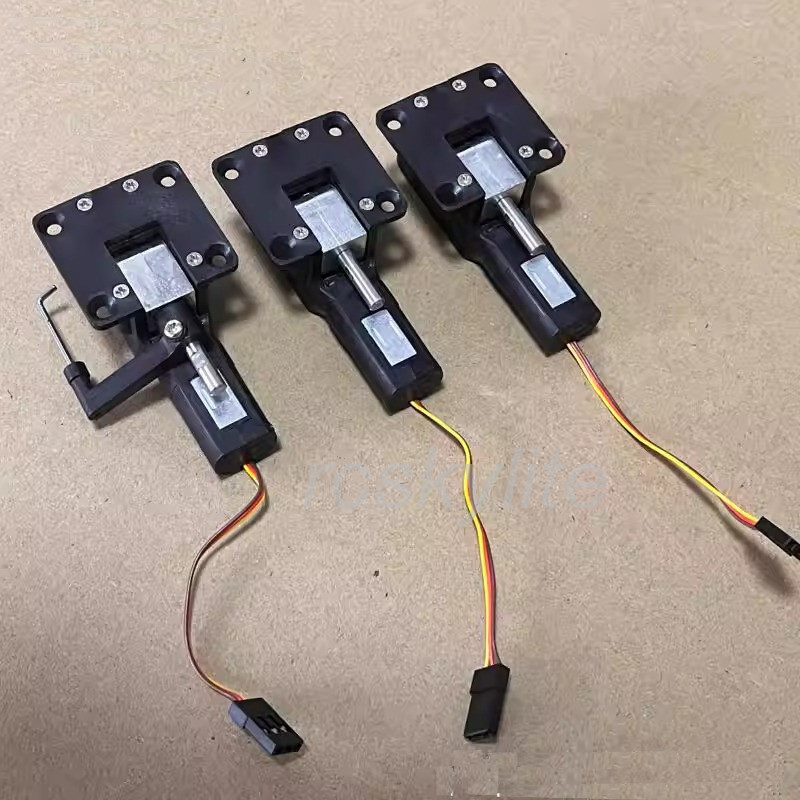

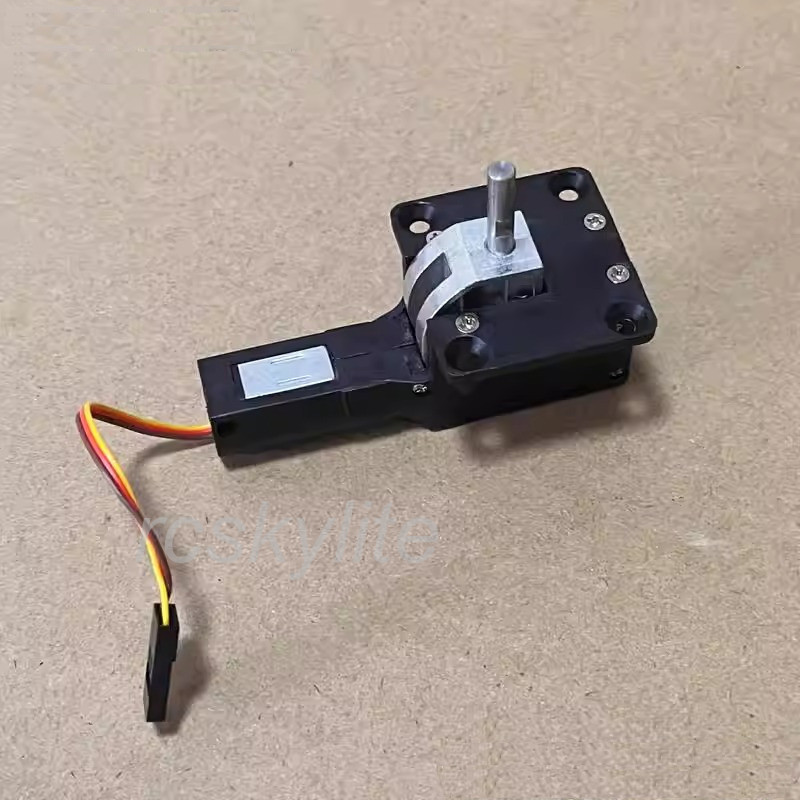

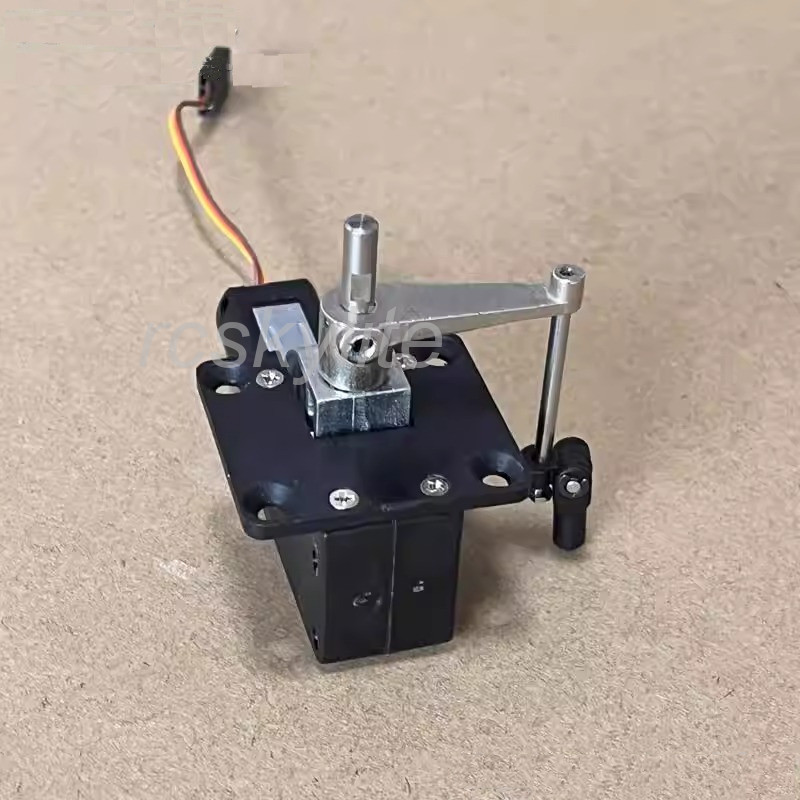

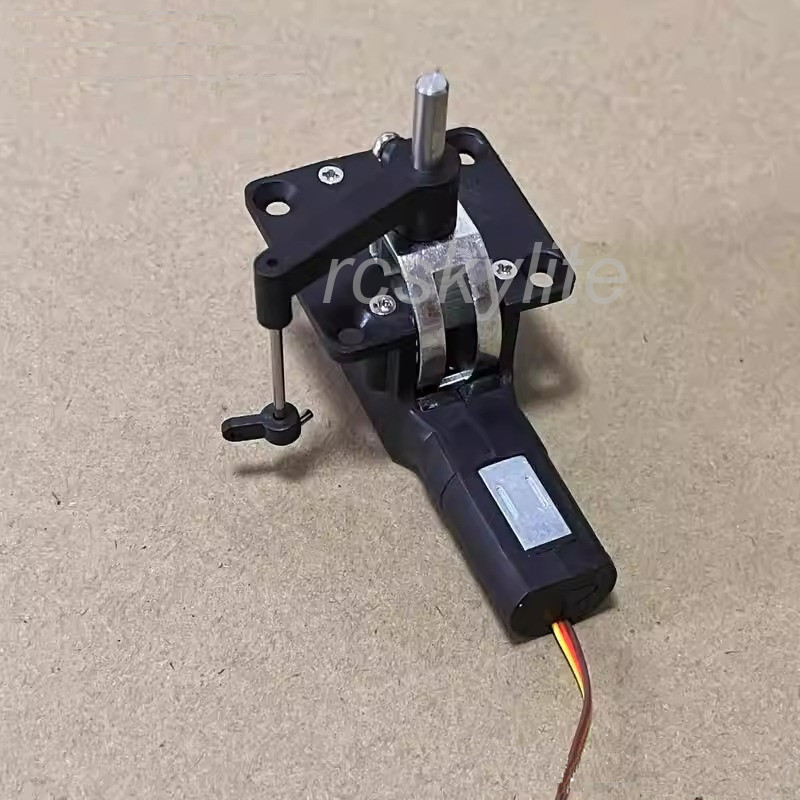

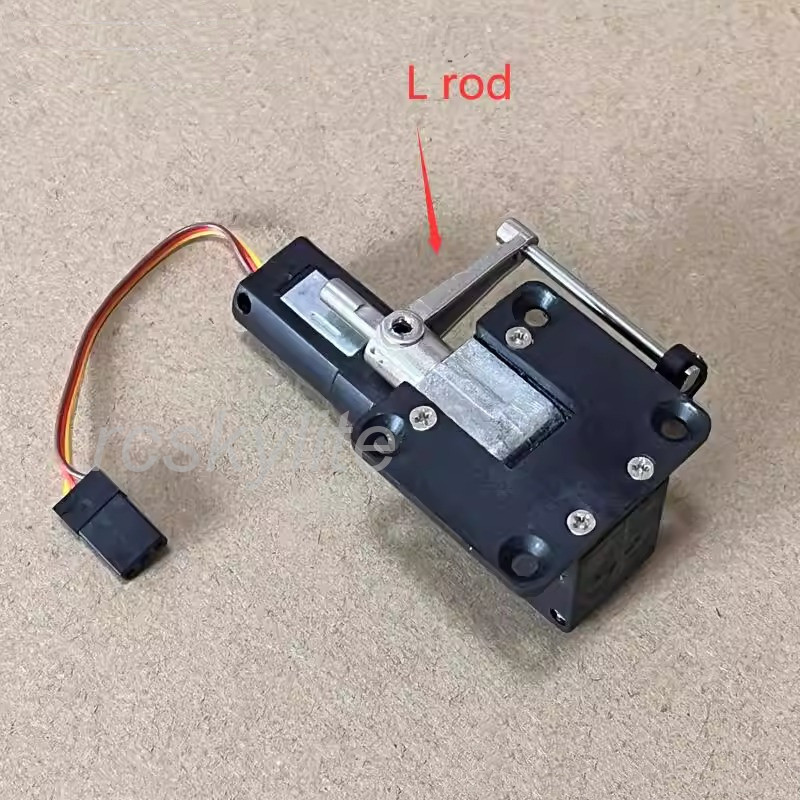

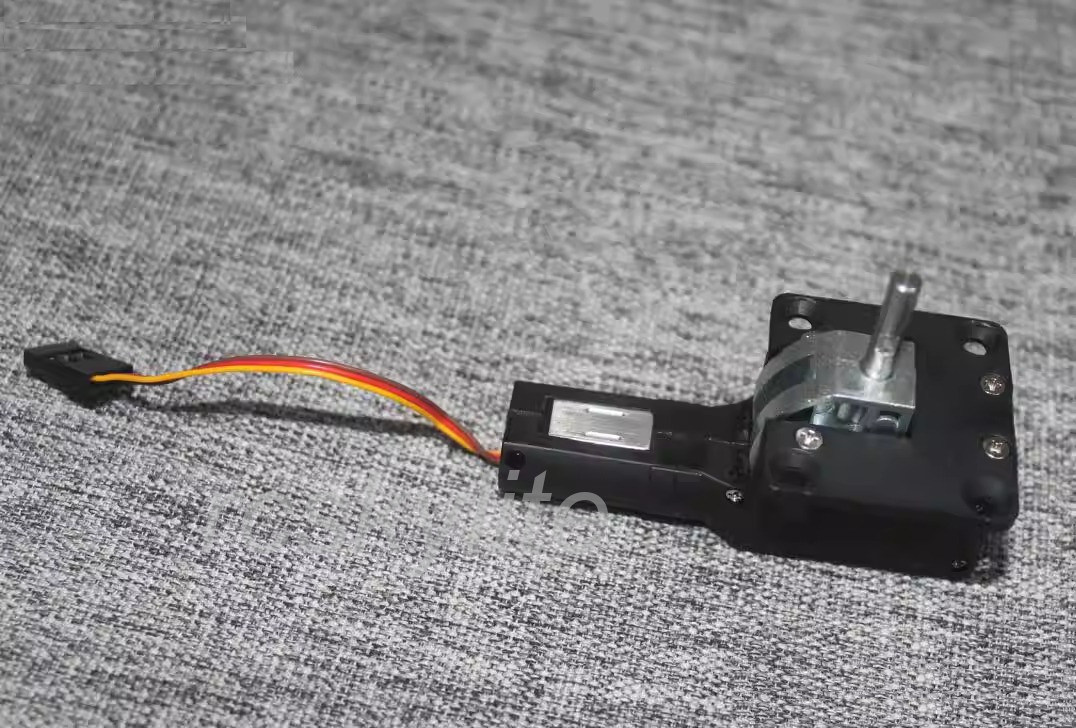

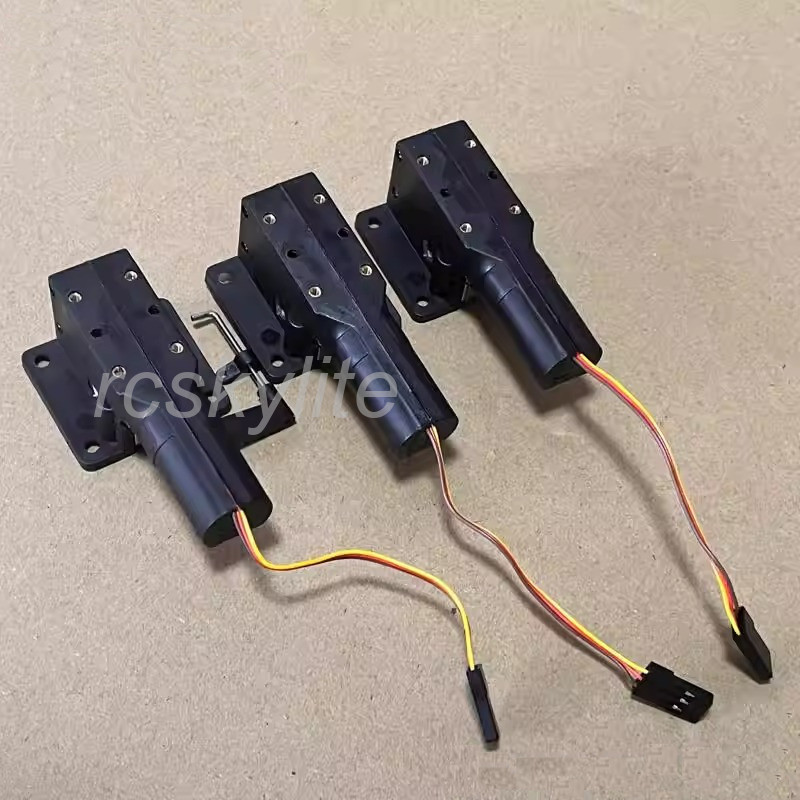

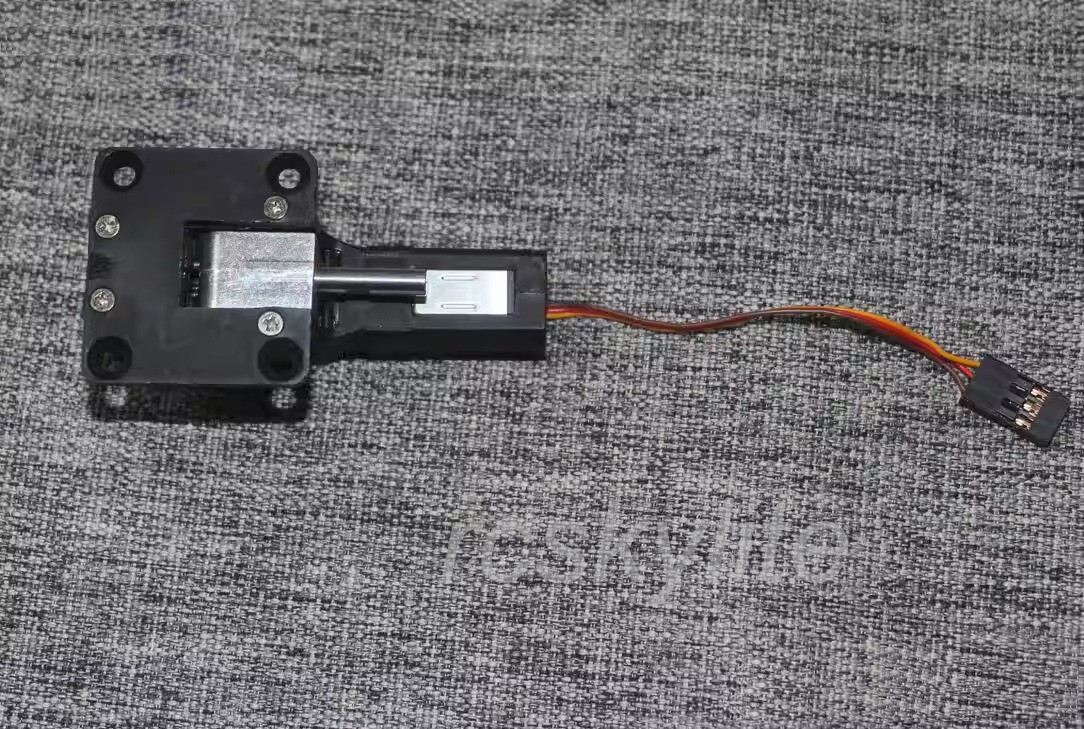

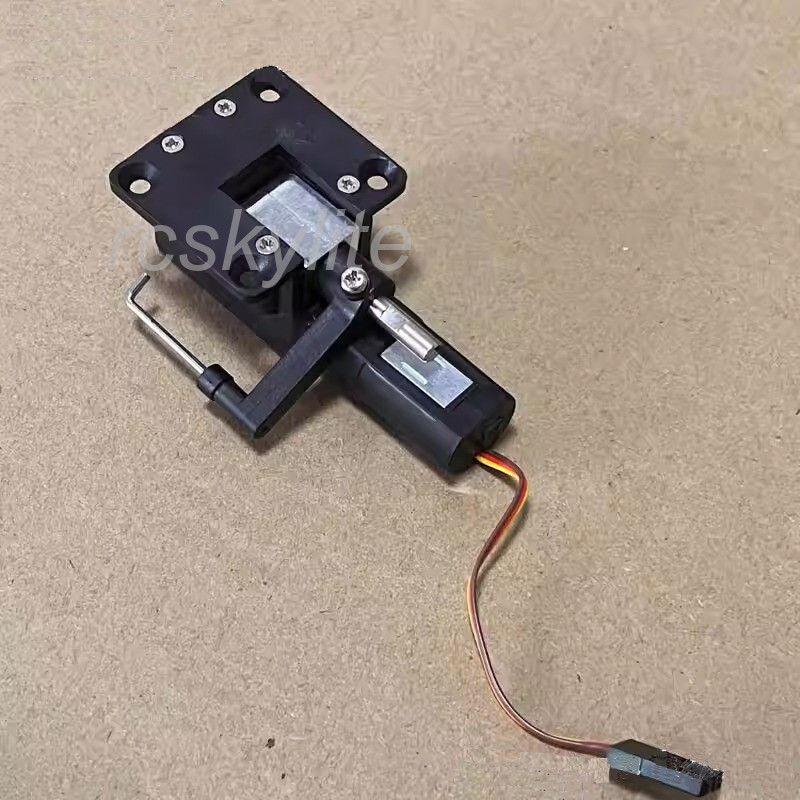

Electric Retractable Landing Gear Set for RC Jets (45–48 g)

Description

Electric retractable landing gear designed for turbine and scale RC jets. Plug into a servo channel (JR plug) for direct control. Built‑in 10‑second auto cutoff protects against overload; dual shock absorption protects gears. Compact, high‑performance unit ideal for models up to ~3 kg.

Key specs

• Weight: 48 g (single unit) / set weight varies (example set ≈ 45–48 g each)

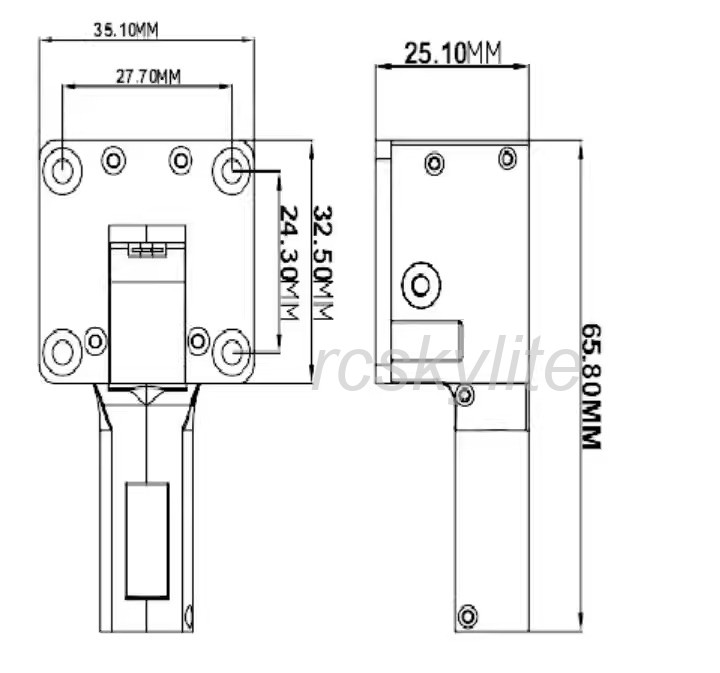

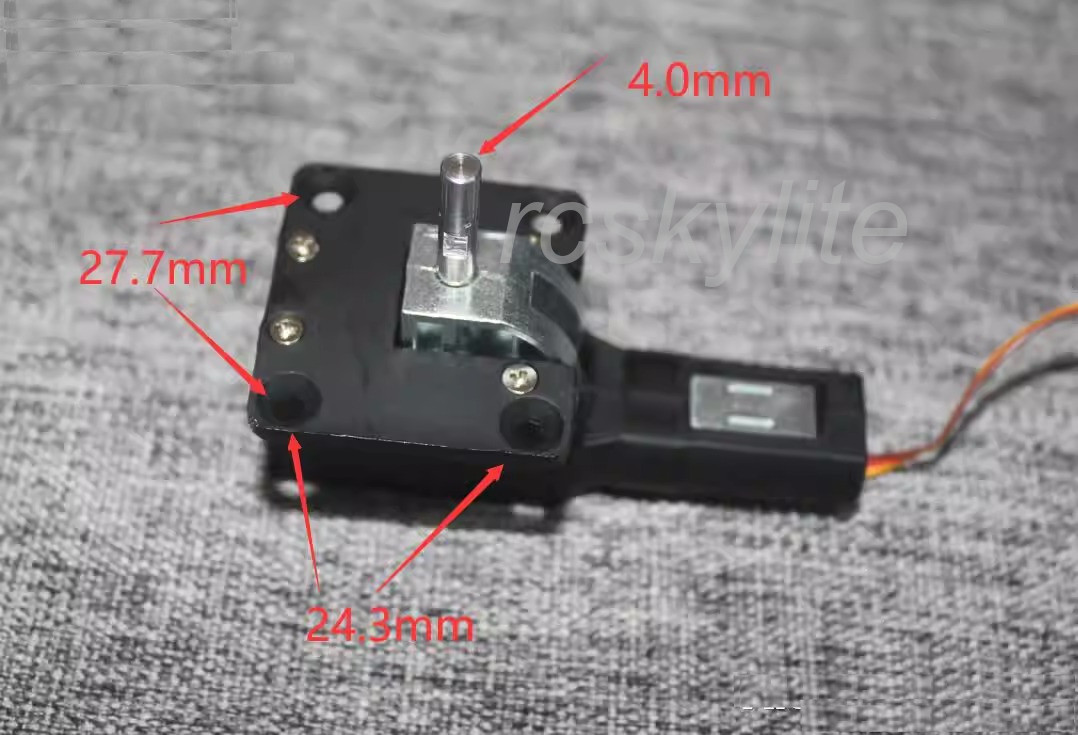

• Dimensions: 65.8 × 35.1 × 25.1 mm
• Max travel: 90°
• Speed: 0.7 s/60° @ 4.8V; 0.55 s/60° @ 6V (alternate spec: 1.8 s/60° listed for 2.5 kg‑cm unit)
• Torque: 1.8 kg·cm @ 4.8V; 2.0 kg·cm @ 6V (alternate spec: 2.5 kg·cm listed)
• Operating voltage: 4.8–6.0 V
• Recommended max flying weight: ~3 kg
• Axle bore: Ø4 mm
• Cable length: 100 mm
• Signal wire colors: Brown / Red / Orange
• Connector: JR plug

Notes

• Plug into a standard servo channel for operation.
• Built‑in overload cutoff and dual shock protection increase reliability.
• Verify torque/speed requirements for your airframe — two torque/speed specs appear in source; choose based on required performance.
