Description
120A Sensored Brushless ESC Features:
| Feature | Description |
|---|---|
| Compatibility | Compatible with all sensorless brushless motors and most of sensored brushless motors such as LRP, SpeedPassion, Novak, etc. |
| Seamless Transition | Seamlessly change to sensorless working mode when the sensor cable is broken. |
| Start-up, Acceleration, and Linearity | Excellent start-up, acceleration, and linearity features. |
| BEC Output | Built-in BEC has a powerful output to supply all the electronic equipment. |
| Firmware Update | Firmware can be updated through an USB adapter on the Multifunction LCD Program Box (Optional equipment). |

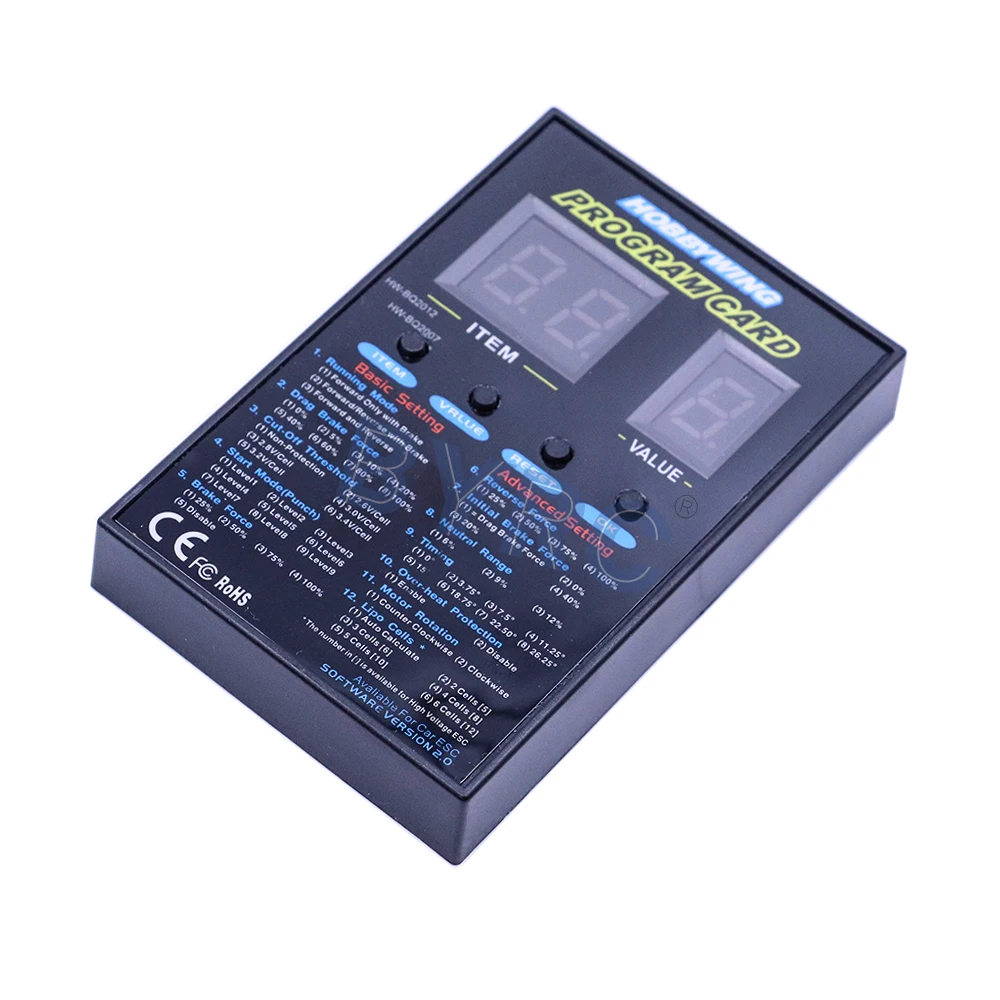

| User Programmability | User programmable. Easily programmed with the “SET” button on the ESC and also compatible with the 3 digital LEDs Program Card and the Multifunction LCD Program Box. |
| Running Modes | 3 running modes (Forward mode, Forward/Reverse mode, Rock Crawler mode) |
| Maximum Reverse Force Adjustment | 4 steps of maximum reverse force adjustment. |
| ABS Brake Function | Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment. |
| Start Modes | 9 start modes (Also called “Punch”) from “very soft (Level 1)” to “very aggressive (Level 9)”. |
| Timing Adjustment | 8 steps of timing adjustment to suitable for all brushless motors. |
| Protection Features | Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection. |
ESC Specifications:
| Specification | Value |
|---|---|
| Cont./ Burst Current | 120A / 760A |
| Resistance | 0.0003 ohm |
| Suitable Car | 1/10, 1/12 on-road & off-road 1/8, 1/10 scale rock crawler |
| Suitable Motor | 5-6 NIMH or 2 Lipo，≥3.5T(on-road), ≥5.5T(off-road)，Sensored and sensorless Brushless Motors |
| Battery | 4-12 cells NiMH or 2-4 cells Li-Po |
| BEC Output | 6V/5a or 7V/5a(Need to connect solder joints) |
| Dimension | 43mm(L) * 36mm(W) * 33mm(H) |
| Weight | 105g |

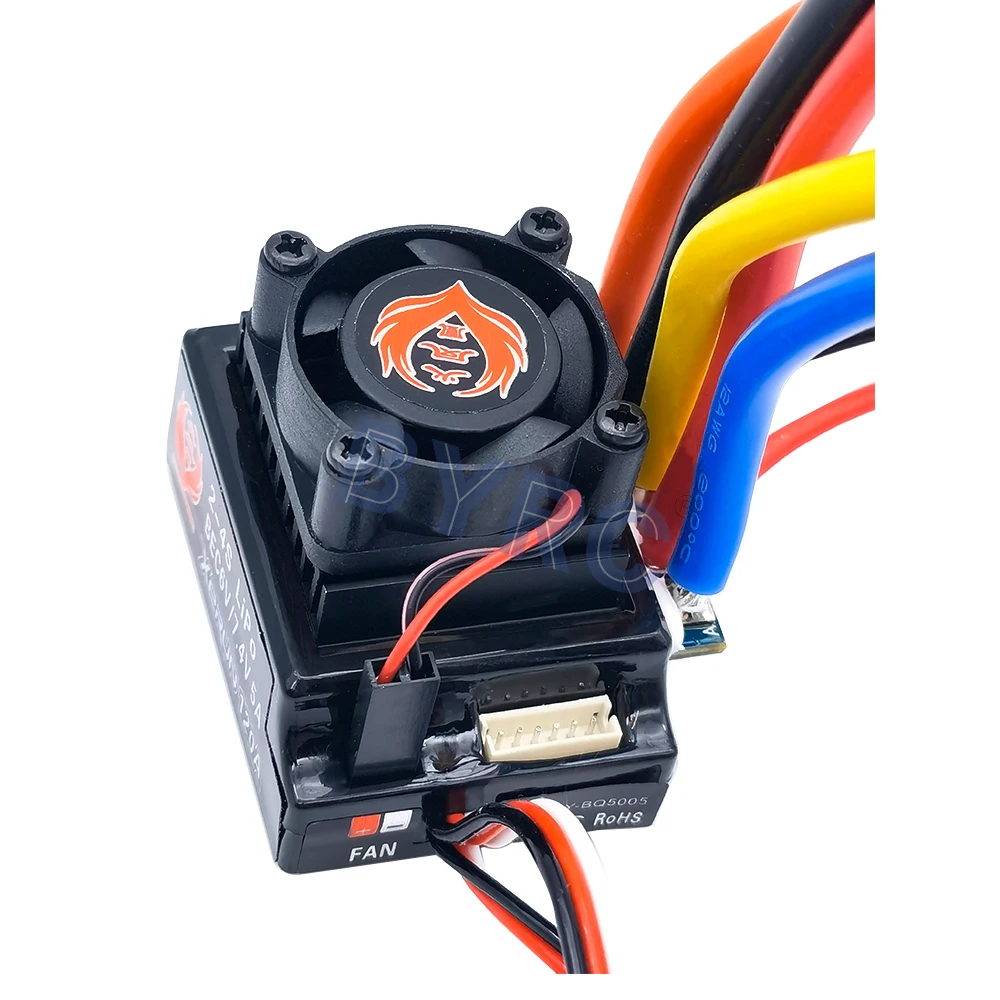

| Fan Working Voltage | 5V@0.16A, maximum 8V. (The fan gets the power supply directly from the battery) |
