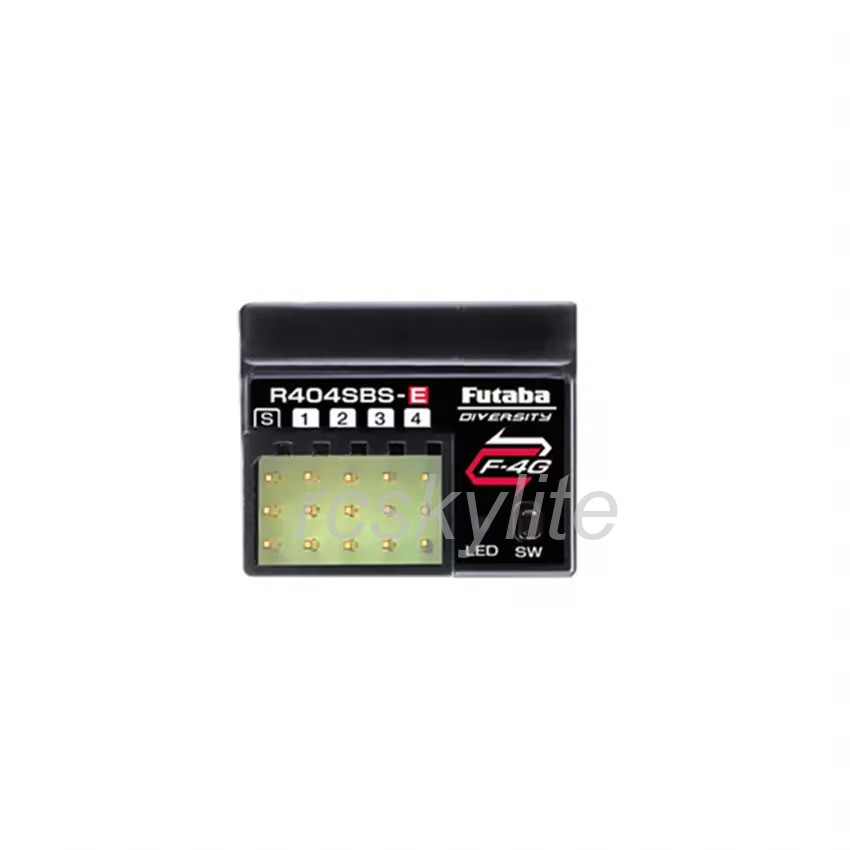

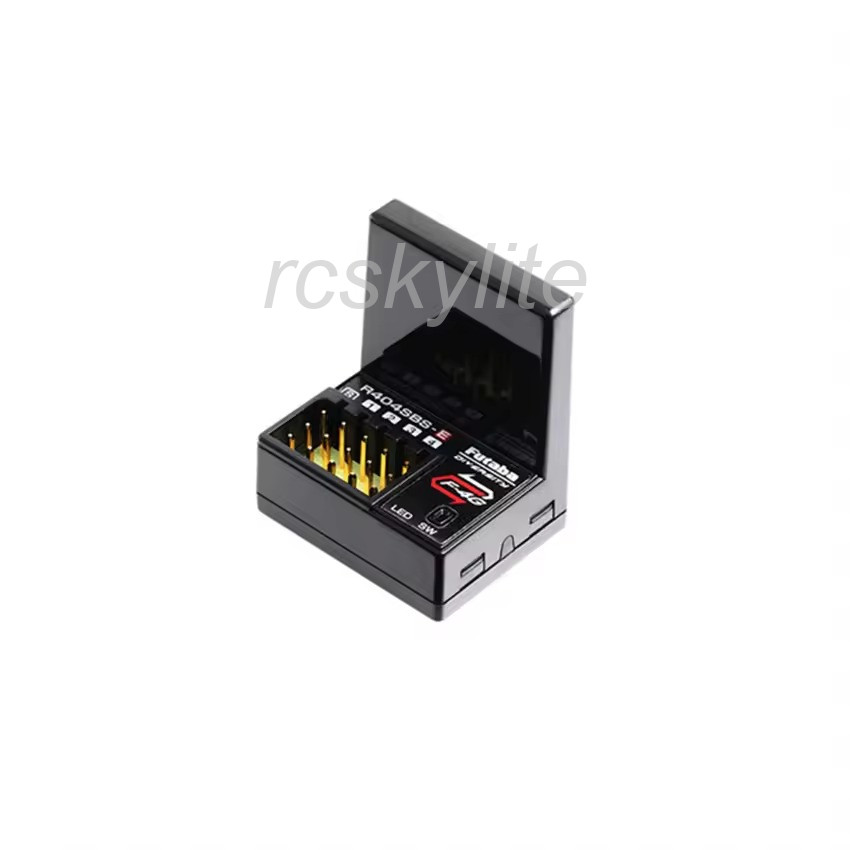

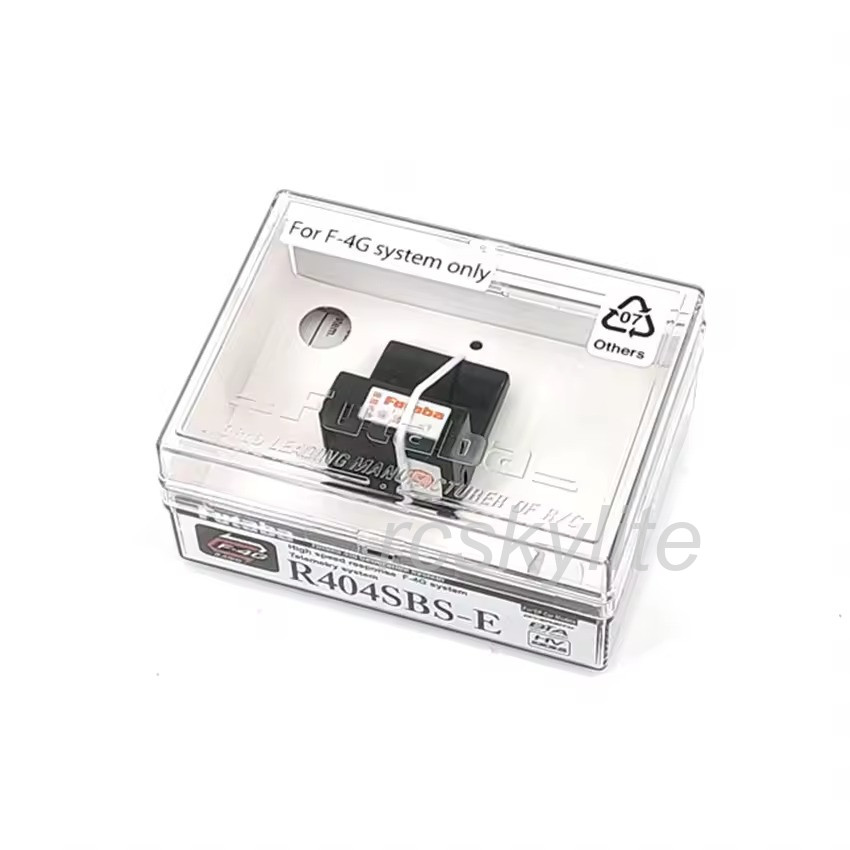

Name: Futaba R404SBS‑E 4‑Channel F‑4G 2.4GHz Telemetry Receiver — S.BUS2, Return Function (for 10PX / Surface Models)
SKU: 173750
Availability: InStock

Futaba R404SBS‑E 4‑Channel F‑4G 2.4GHz Telemetry Receiver — S.BUS2, Return Function (for 10PX / Surface Models)

$109.00

Compact Futaba R404SBS‑E 4‑channel F‑4G (T‑FHSS) receiver with S.BUS2 and telemetry return — for electric RC cars and boats; 3.7–7.4V input.

Description

The Futaba R404SBS‑E is a compact 4‑channel receiver designed for Futaba’s F‑4G (T‑FHSS) standard, offering S.BUS2 support and telemetry return functions in a small, lightweight package tailored for surface electric models. With diversity reception and a built‑in return/telemetry capability, the R404SBS‑E delivers reliable control and data feedback when paired with compatible Futaba transmitters such as the 10PX.

Key details integrated:

Model: R404SBS‑E
System: F‑4G (T‑FHSS), diversity antenna design
S.BUS: S.BUS2 compatible with telemetry return
Frequency: 2.4 GHz (F‑4G)
Operating Voltage: DC 3.7–7.4 V
Size: 25.5 × 20.7 × 10.6 mm (receiver); overall length including antenna 30.5 mm
Weight: 7.2 g
Intended use: electric RC cars and boats (surface models only)

Important notes and safety:

R404SBS‑E operates only under the F‑4G standard—do not attempt to bind with non‑F‑4G systems.
In SR mode this receiver requires servos that support SR mode; using standard servos in SR mode may cause servo or receiver damage.
This model is for electric (battery‑powered) models only and must NOT be used in gas/nitro (internal combustion) models.

Package includes
