Name: Mabuchi RS-380SH-4535 High-Speed Mini Electric Motor for RC Car, Boat, Drone, and DIY Projects
SKU: J8VL14L65J0G
Availability: InStock

Mabuchi RS-380SH-4535 High-Speed Mini Electric Motor for RC Car, Boat, Drone, and DIY Projects

$5.01

Mabuchi RS-380SH-4535 High-Speed Mini Electric Motor for RC Car, Boat, Drone, and DIY Projects – 27.7mm x 37.5mm, 2.3mm shaft diameter, 71.9g weight, 3.0V-7.4V voltage, 8300-22000 RPM speed

SKU: J8VL14L65J0G Category: Motors and ESCs

Description

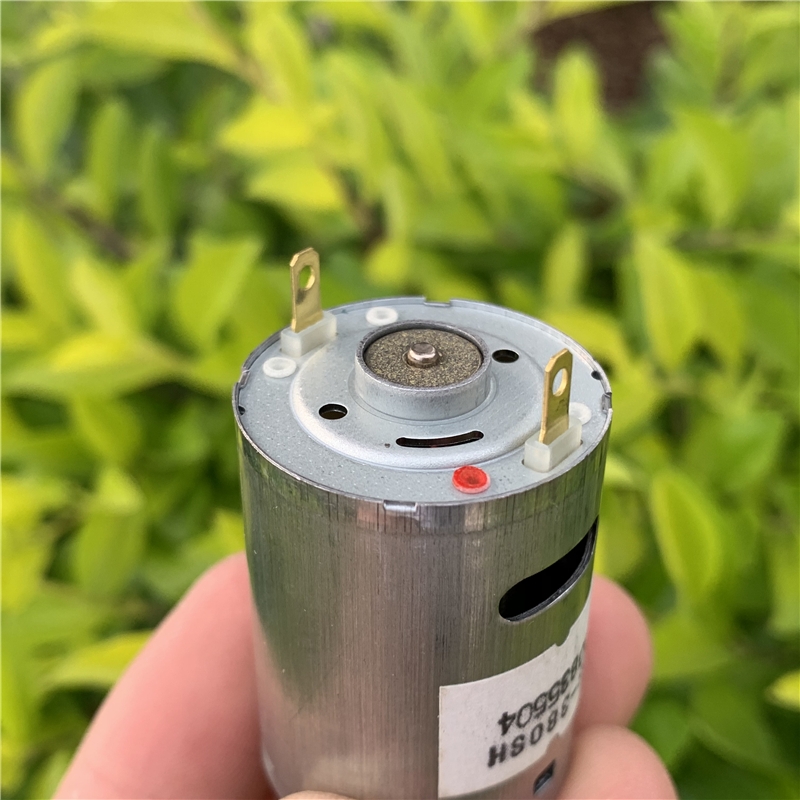

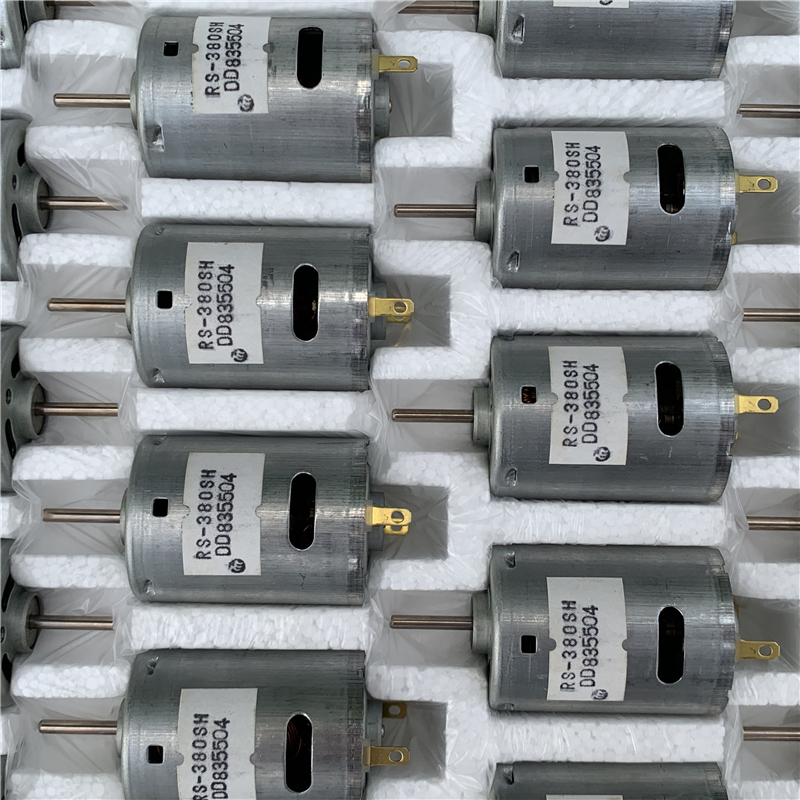

Mabuchi RS-380SH-4535 High-Speed Mini Electric Motor

A high-performance motor designed for RC cars, boats, drones, and DIY projects. This motor is manufactured by Mabuchi, a renowned brand in the industry.

Parameter	Value
Model	RS-380SH-4535 / 57
Size	27.7 mm x 37.5 mm
Shaft Diameter	2.3 mm
Shaft Length	14 mm (without key)
Weight	71.9 grams
Voltage	3.0V-7.4V
Speed (No Load)	3.0V: 8300 RPM, 500mA 3.7V: 10300 RPM, 520mA 5.0V: 14000 RPM, 600mA 6.0V: 18000 RPM, 660mA 7.4V: 22000 RPM, 680mA

This motor is suitable for various applications, including industrial machinery, vacuum cleaners, office equipment, and DIY projects.

Additional information

Weight	0.1 kg
Dimensions	10 × 10 × 10 cm
Torque	N/A
Usage	Home Appliance
Model Number	RS-380SH-4535
Continuous Current(A)	N/A
Construction	Permanent Magnet
Type	Micro Motor
Protect Feature	Drip-proof
Commutation	Brush
Efficiency	IE 1
Output Power	N/A
Origin	Mainland China
Certification	CCC
