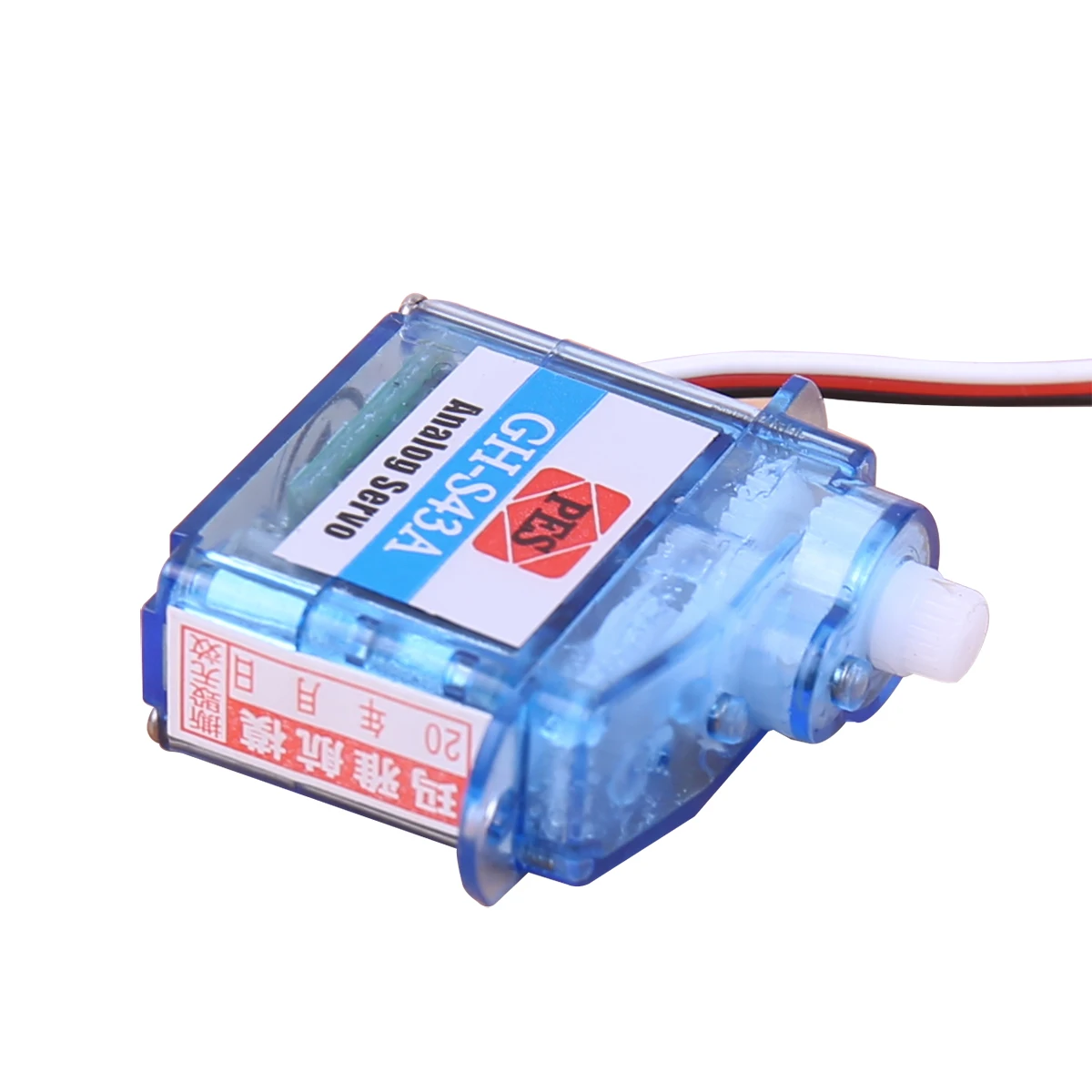

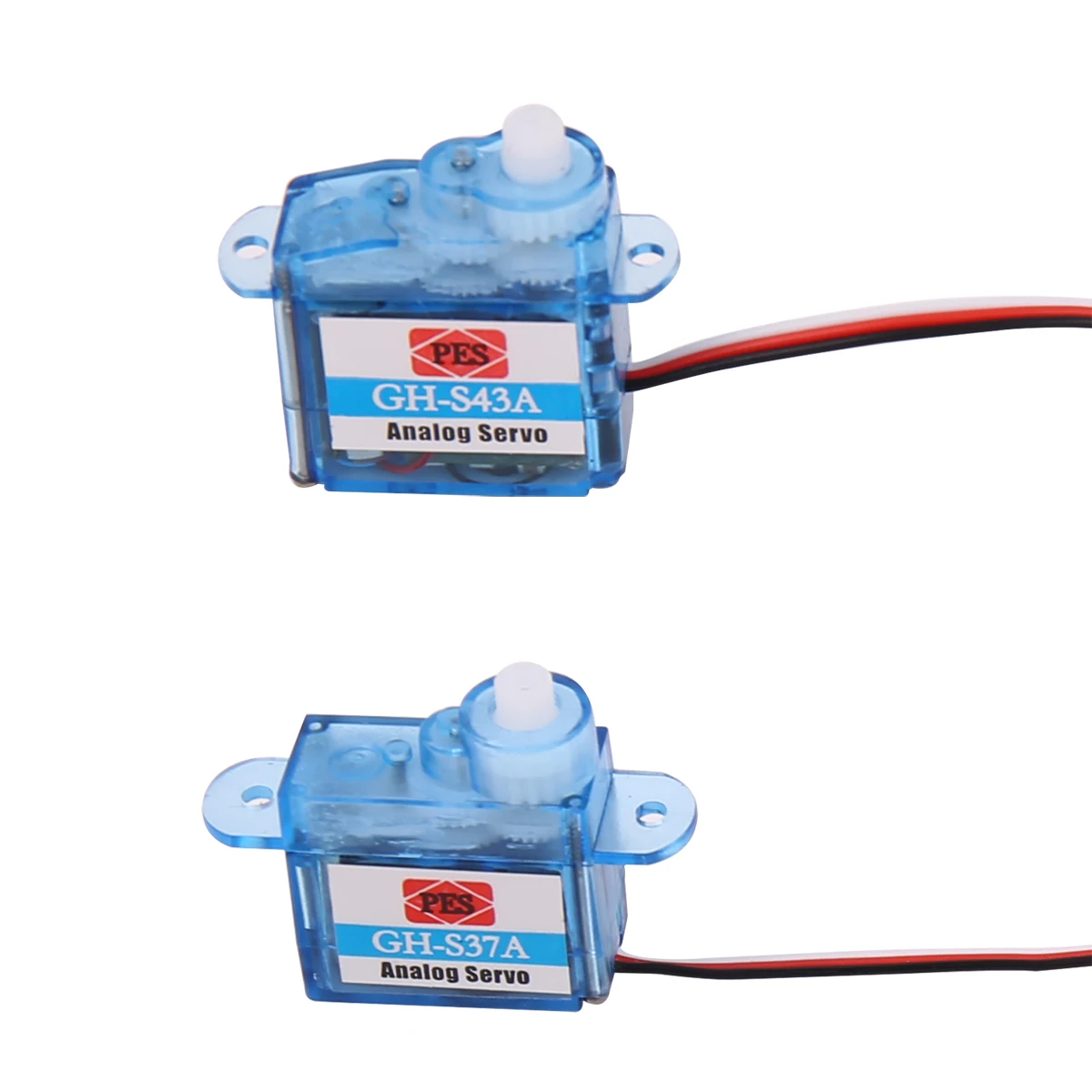

Mini GH 3.7g/4.3g Micro Analog Servo for RC Airplane Helicopter Control
This ultra-compact servo is designed for use in micro-aircraft, mini RC airplanes, and helicopters. With a weight of only 3.7g or 4.3g, it is perfect for small-scale aeromodelling and aircraft flight direction control.
| Parameter | Value |
|---|---|
| Operating Voltage | 4.8-6.0V (Do not exceed 6V, otherwise it will burn down) |
| Working Current | <300 mA |
| Velocity | 0.12sec/60 degrees (at 4.8v) 0.10sec/60 degrees (at 6v) |
| Torsion | 0.6kg/cm (at 3.6v) 0.8kg/cm (at 4.8v) |
| Operating Temperature | 0 -60. |
| Standard Signal | 1000-2000 microseconds |
| Working Angle | 90 degrees |
| Dead Zone Setting | 4usec |
| Plug Type | JR plug |
Packing list: Steering gear * 1 + rudder arm * 4 + screw * 3
Л***ч –
Пришли в заявленный срок. Все рабочие. Фактический вес 3,7 сервы – 5 грамм. Угол поворота, как заявлен, 90 градусов.
