Description

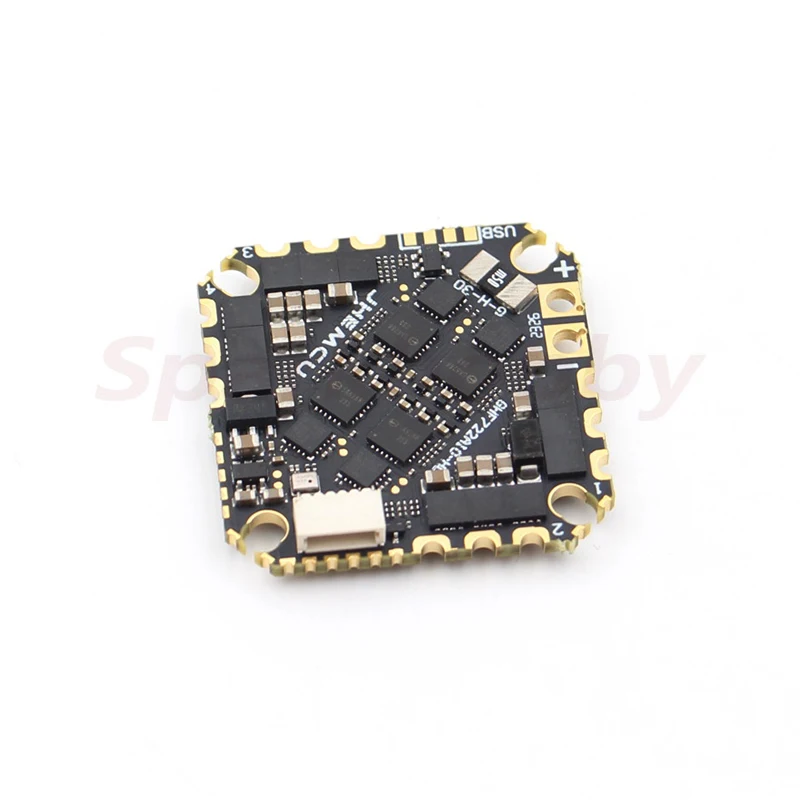

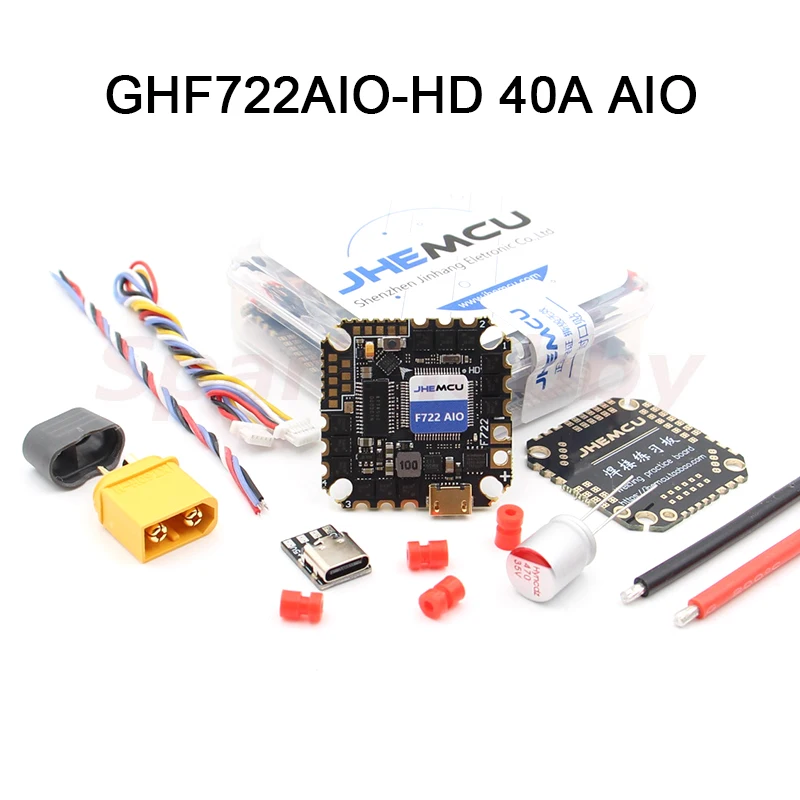

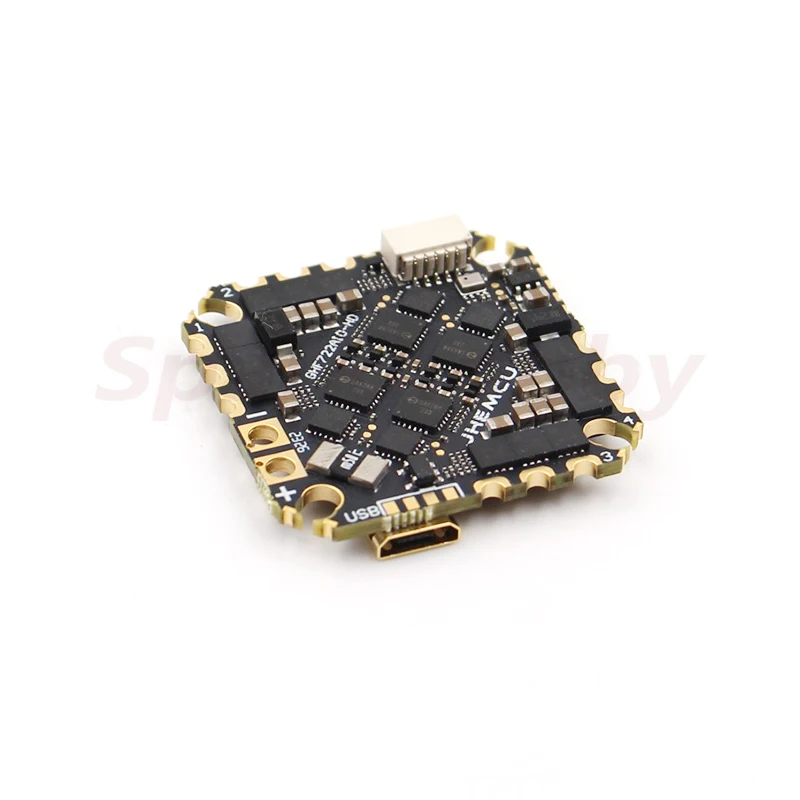

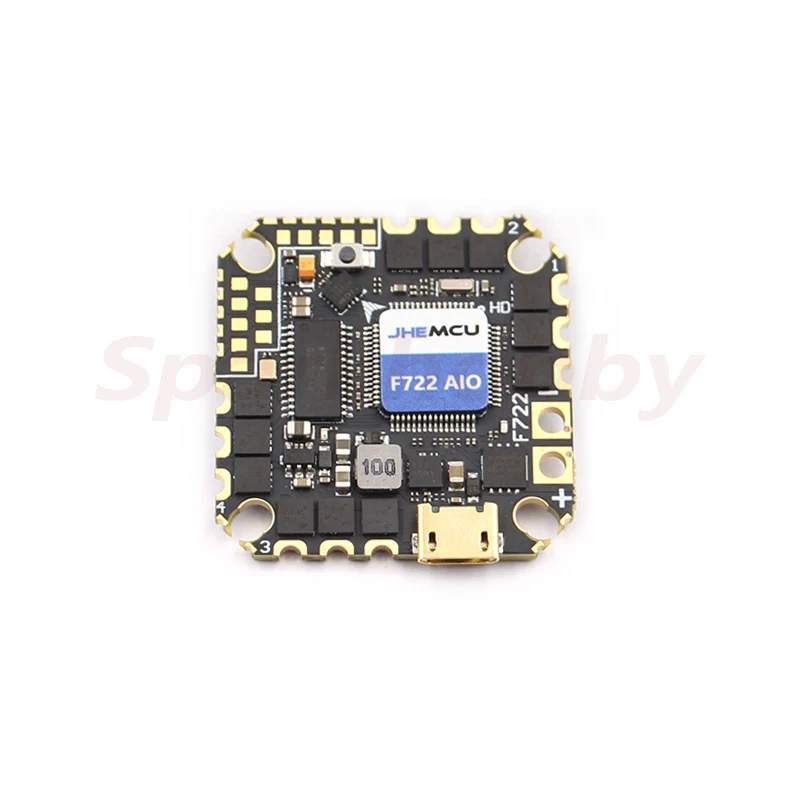

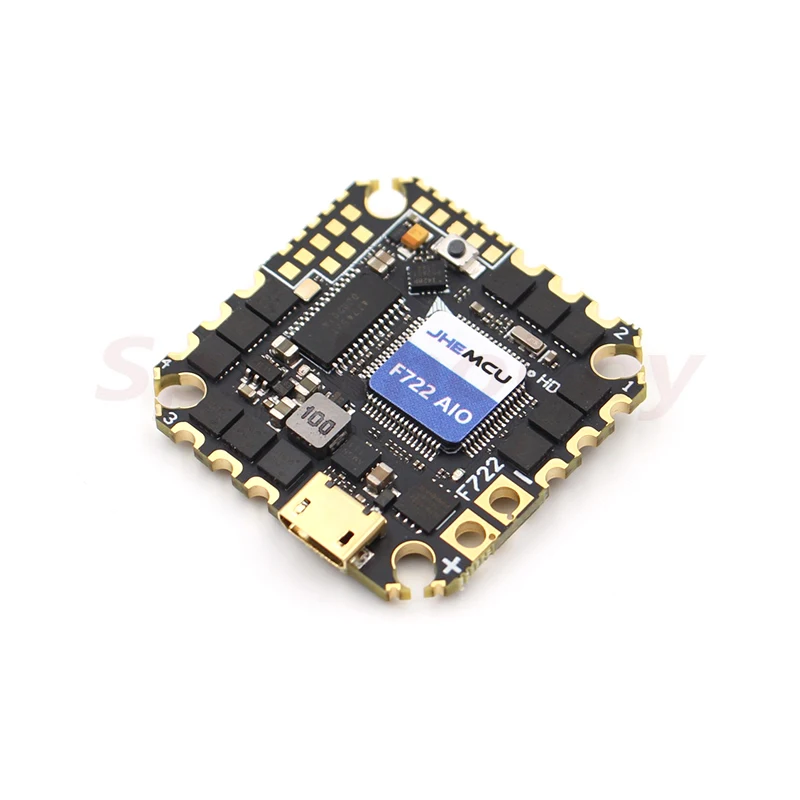

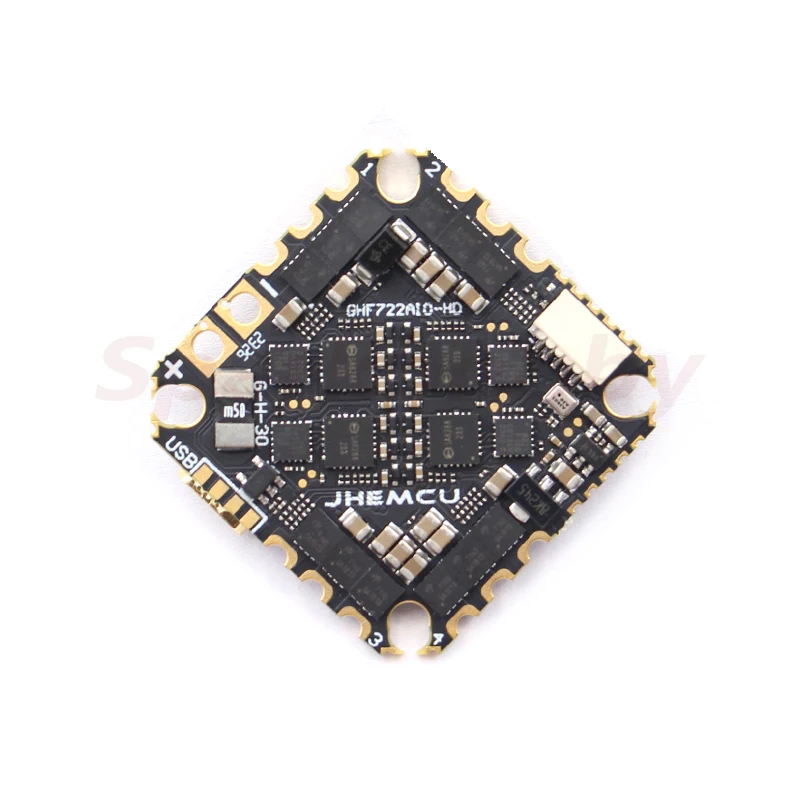

JHEMCU GHF722AIO-HD 40A AIO Flight Controller
A high-performance AIO flight controller designed for RC FPV cinewhoop drones, featuring a 40A BLheli_S ESC and a range of advanced features.

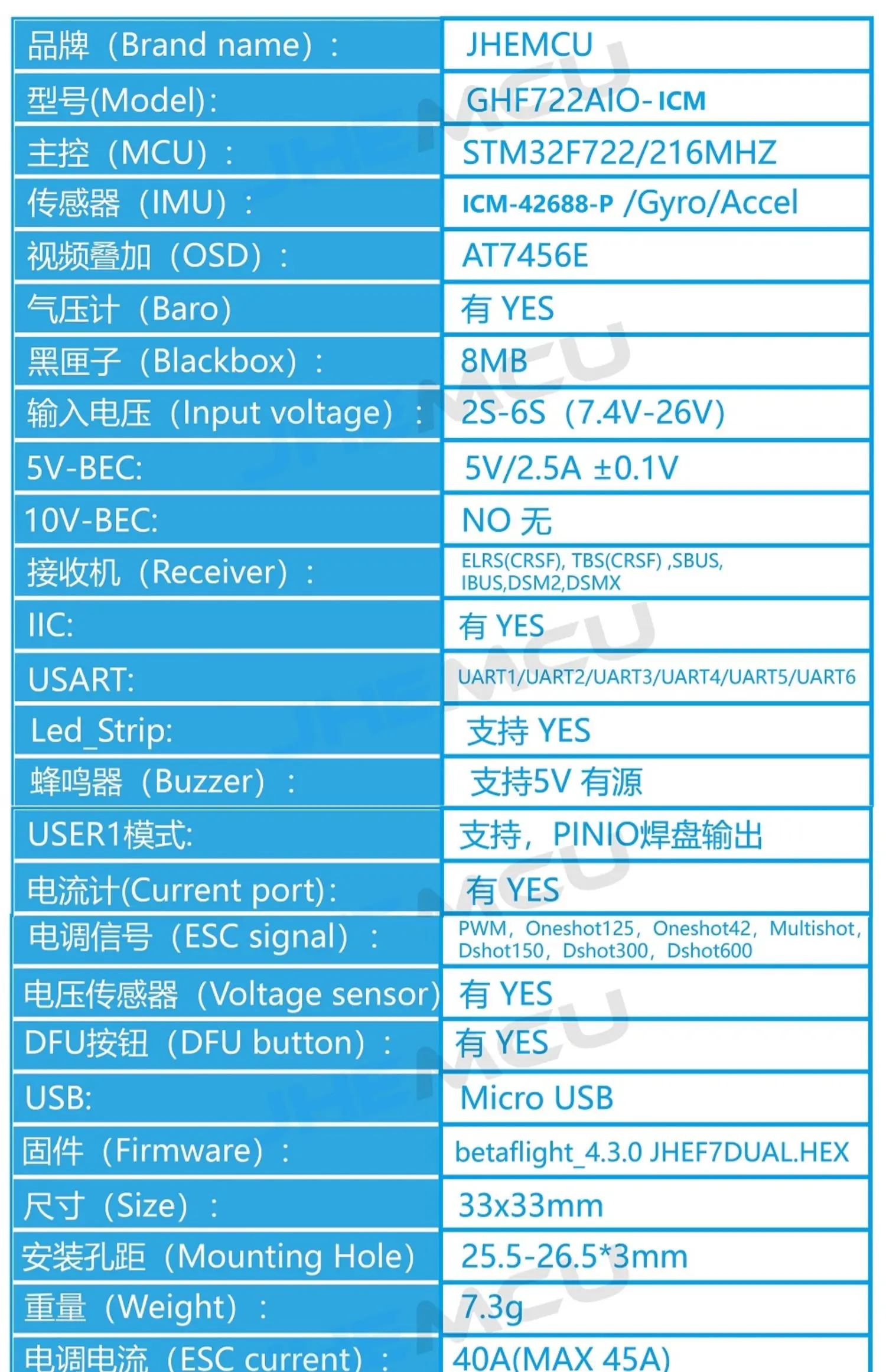

| Parameter | Spec |
|---|---|
| MCU | STM32F722/216MHz |
| MIU | ICM-42688-P / Gyro / Accel |
| OSD | AT7456E |
| Baro | Yes |
| Blackbox | 8MB |
| Input Voltage | 2-6S Lipo (7.4-26V) |
| 5V BEC | 5V/2.5A ±0.1V |
| 10V BEC | No |

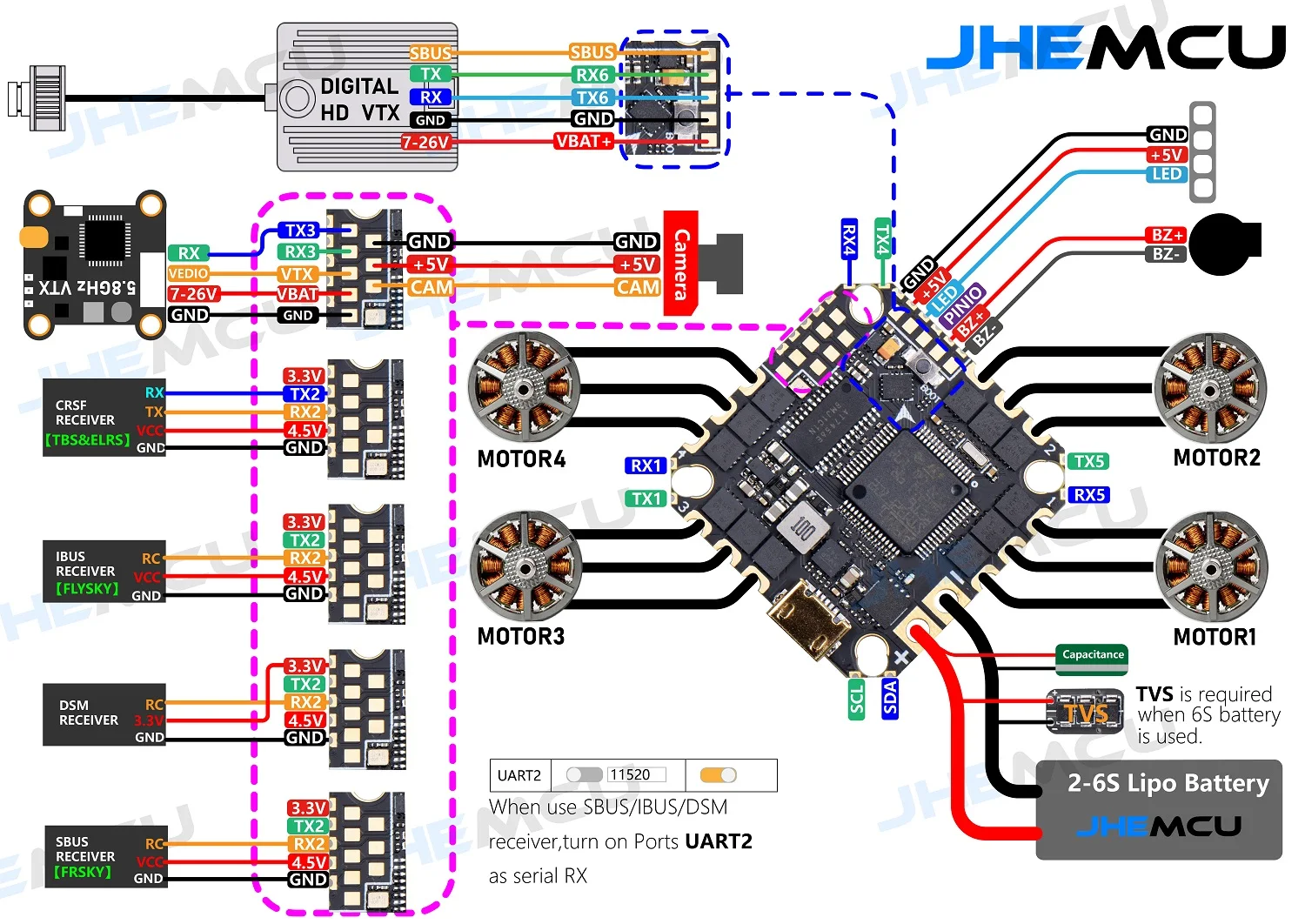

| Receiver | ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX |
| IIC | No |
| USART | USART1/USART2/USART3/USART4/USART5/USART6 |
| LED Strip | Support |
| Buzzer | Support 5V Active |
| USER1 model | Support, with PINIO pad output |
| Current Port | Yes |
| ESC Signal | PWM, Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300, Dshot600 |
| Voltage sensor | Yes |
| DFU button | Yes |
| USB | Micro USB |
| Firmware | Betaflight -4.3.0 JHEF7DUAL.HEX |

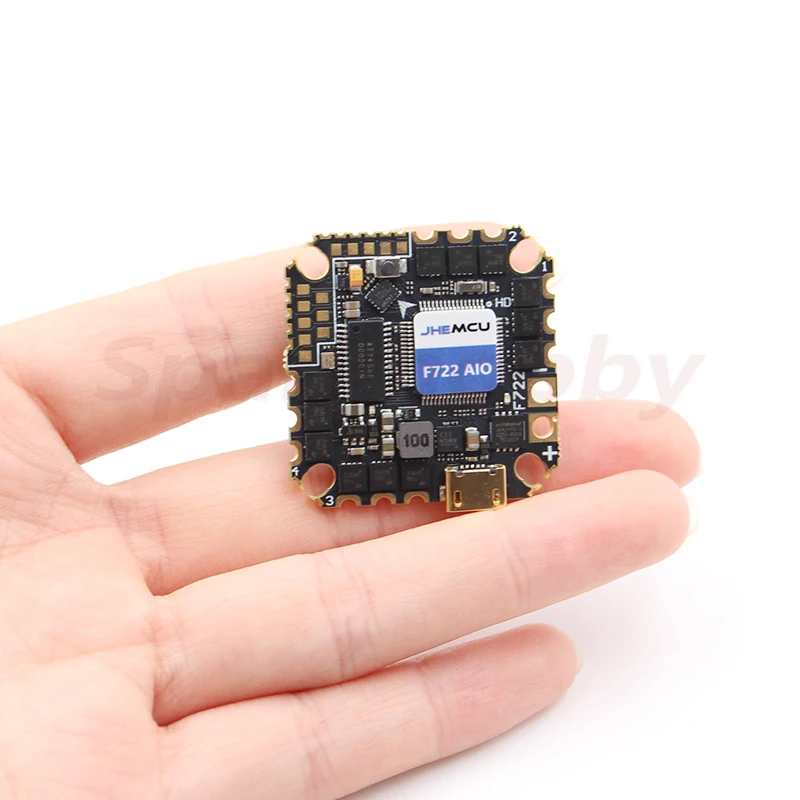

| Size | 33*33mm |
| Mounting holes | 25.5-26.5*3mm |

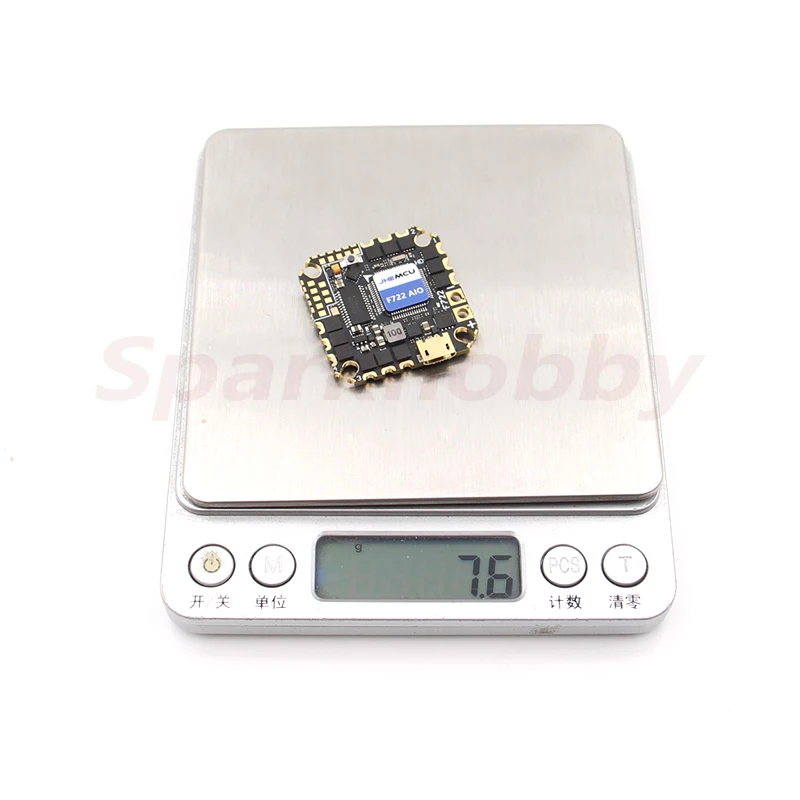

| Weight | 7.6g |
| ESC Current | 40A (MAX 45A) |
| MCU | EFM8BB21F16G |
| Type | Bluejay / BLHELI-S |
| ESC Firmware | Bluejay G-H-30-48-v0.16.hex |
| 48K/96K firmware support | Support |
