Description

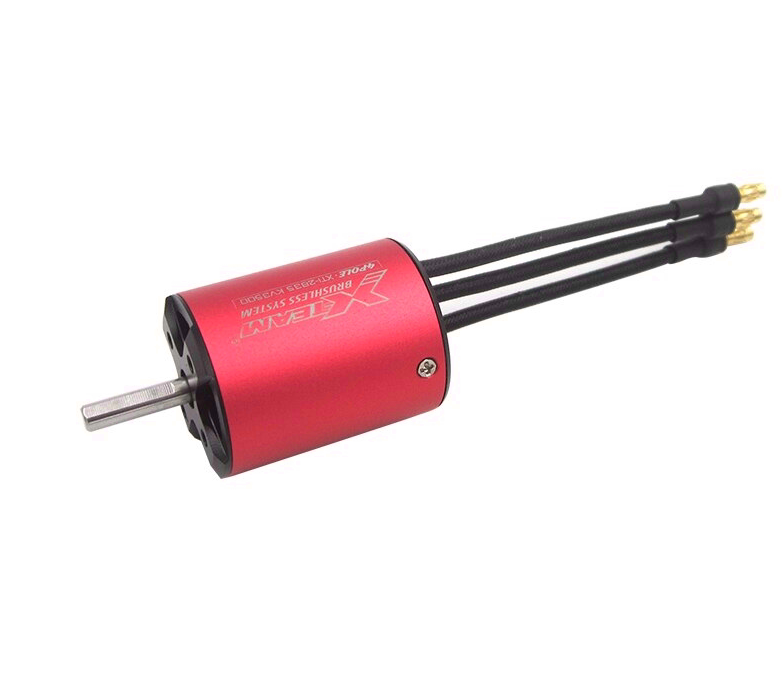

High-Efficiency 4-Pole Brushless Motor for RC Boat and Car
Experience unparalleled performance with our 2835 KV3500 4-Poles Brushless Motor, designed for RC boats and cars. This motor boasts a four-pole rotor design, ensuring high torque and efficiency, with an overall efficiency of over 95%. Its extremely low temperature rise and strong overload capability make it suitable for long-lasting use without the need for an external heat sink or cooling fan.
Constructed with high-quality materials, including high-strength aluminum alloy, high-performance high-temperature magnetic steel, and imported high-speed bearings, this motor is built to last. Its compact design and lightweight construction make it ideal for RC boats and cars, with a diameter of 28MM, length of 35MM, and weight of 83g.
Key specifications include:
| Parameter | Value |
|---|---|
| Diameter | 28MM |
| Length | 35MM |
| Shaft diameter | 4MM |
| Shaft length | 15MM |
| Mounting hole position | 16/19MM (M3 screw fixing) |
| Outlet connector | 80MM/3.5MM banana head |
| Weight | 83g |
| Shaft type | D axis |
| Specification selection | For 3S battery |
| ESC | Configure 30A- 50A ESC |
| Suitable for | 30-60CM RC Boat |
