Name: Slanted Kneeling Shock-Absorbing Landing Gear — 80–180mm (CNC Aluminum, Pair)
SKU: 173423
Availability: InStock

Slanted Kneeling Shock-Absorbing Landing Gear — 80–180mm (CNC Aluminum, Pair)

CNC-machined slanted kneeling shock-absorbing landing gear for RC jets — available 80–180mm. Sold as a pair; choose top hole 4.0mm or 5.0mm. Wheels 2.25–3″ sold separately.

SKU: N/A Category: Struts

Description

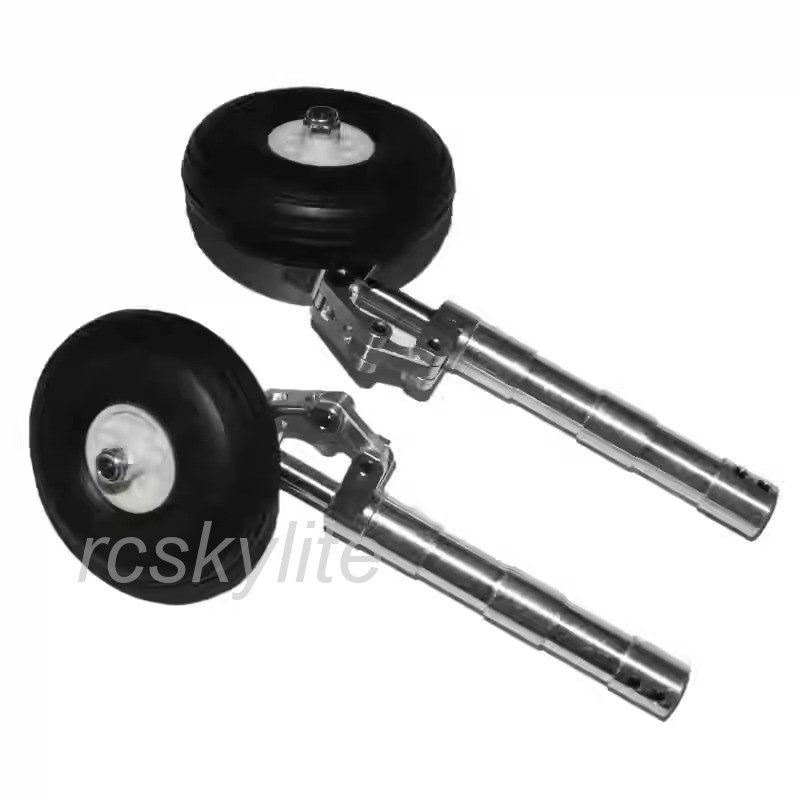

High-fidelity slanted kneeling landing gear kit (sold as a pair) engineered for RC jets and ducted fan models (3–6 kg). Precision CNC aluminum alloy construction provides low weight and high strength. The kneeling shock design with ~16 mm travel cushions touchdowns and improves ground handling.

Key specs:

Material: CNC high-strength aluminum alloy
Heights available: 80, 90, 100, 110, 120, 130, 135, 140, 150, 160, 170, 180 mm (bracket height only; wheel height not included)
Top mounting hole (choose): 4.0 mm or 5.0 mm
Axle: hardened alloy steel, 4.0 mm shaft

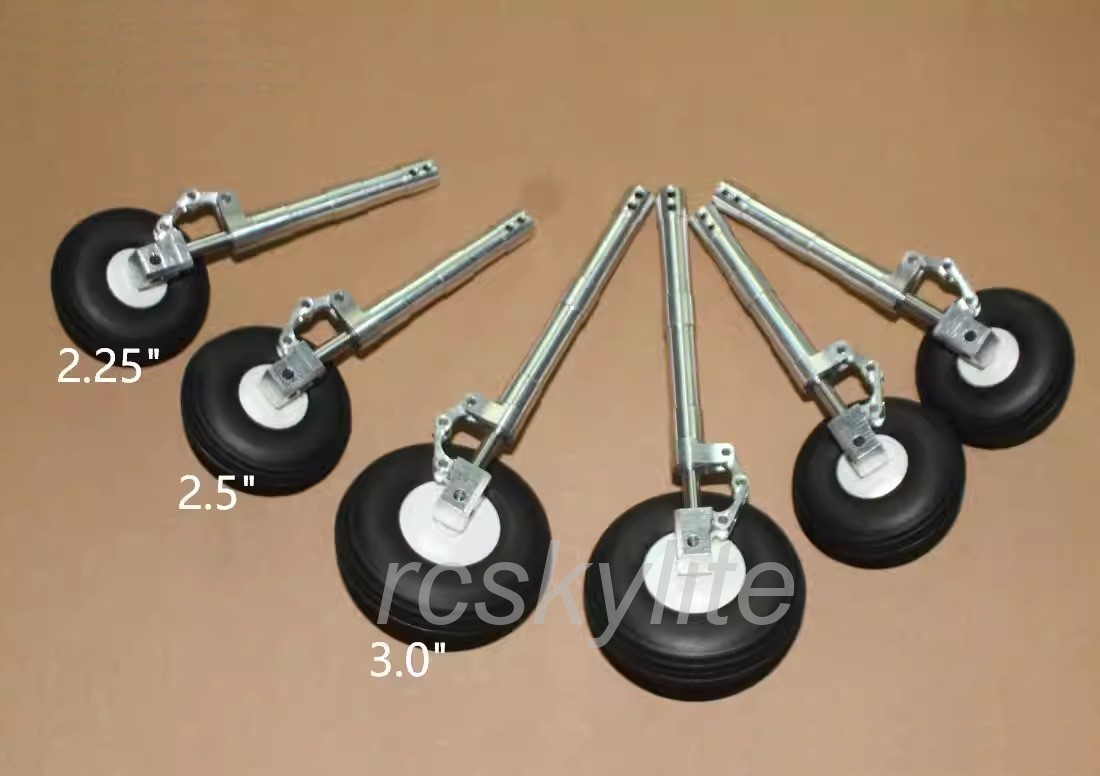

Wheel compatibility: 2.25″–3.0″ (wheels not included) — examples: 56 mm, 61 mm, 75 mm wheel setups (note: listed bracket height excludes wheel thickness)
Travel (damping): ~16 mm
Fitment: suitable for 3–6 kg RC aircraft, scale/ducted-fan jets and similar models
Sold as: 2 pieces (1 pair)

Installation notes

Verify chosen top-hole size (4.0 or 5.0 mm) matches your mounting hardware.
Bracket height listed excludes wheel diameter — confirm final clearance with chosen wheel size.
Use appropriate M4/M5 mounting hardware and ensure bay clearance for kneeling travel and wheel retraction.

Additional information

Height	80 mm, 90 mm, 100 mm, 110 mm, 120 mm, 130 mm, 135 mm, 140 mm, 150 mm, 160 mm, 170 mm, 180 mm
Option	4.0mm top-hole (pair) — no wheels, 5.0mm top-hole (pair) — no wheels, 4.0mm top-hole (pair) with 2.25″ wheels, 5.0mm top-hole (pair) with 2.25″ wheels, 4.0mm top-hole (pair) with 2.5″ wheels, 5.0mm top-hole (pair) with 2.5″ wheels, 4.0mm top-hole (pair) with 3.0″ wheels, 5.0mm top-hole (pair) with 3.0″ wheels
