Description

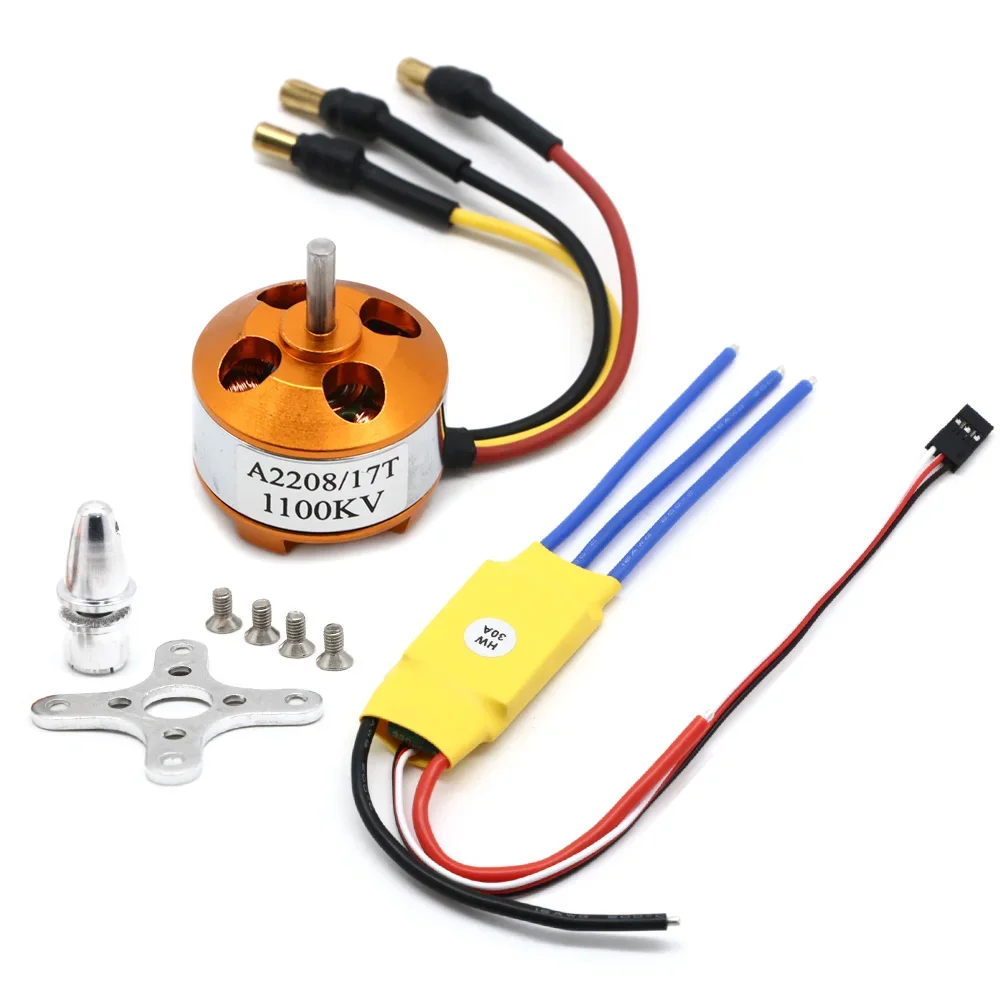

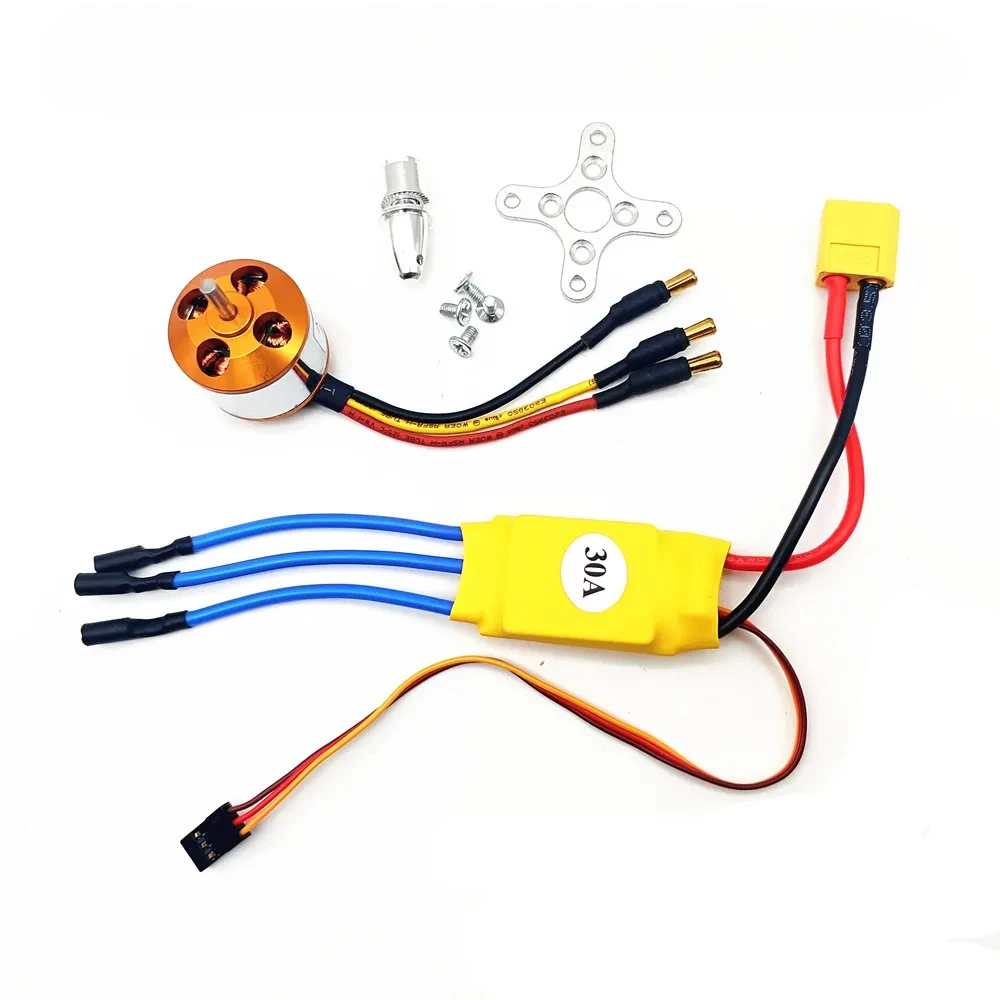

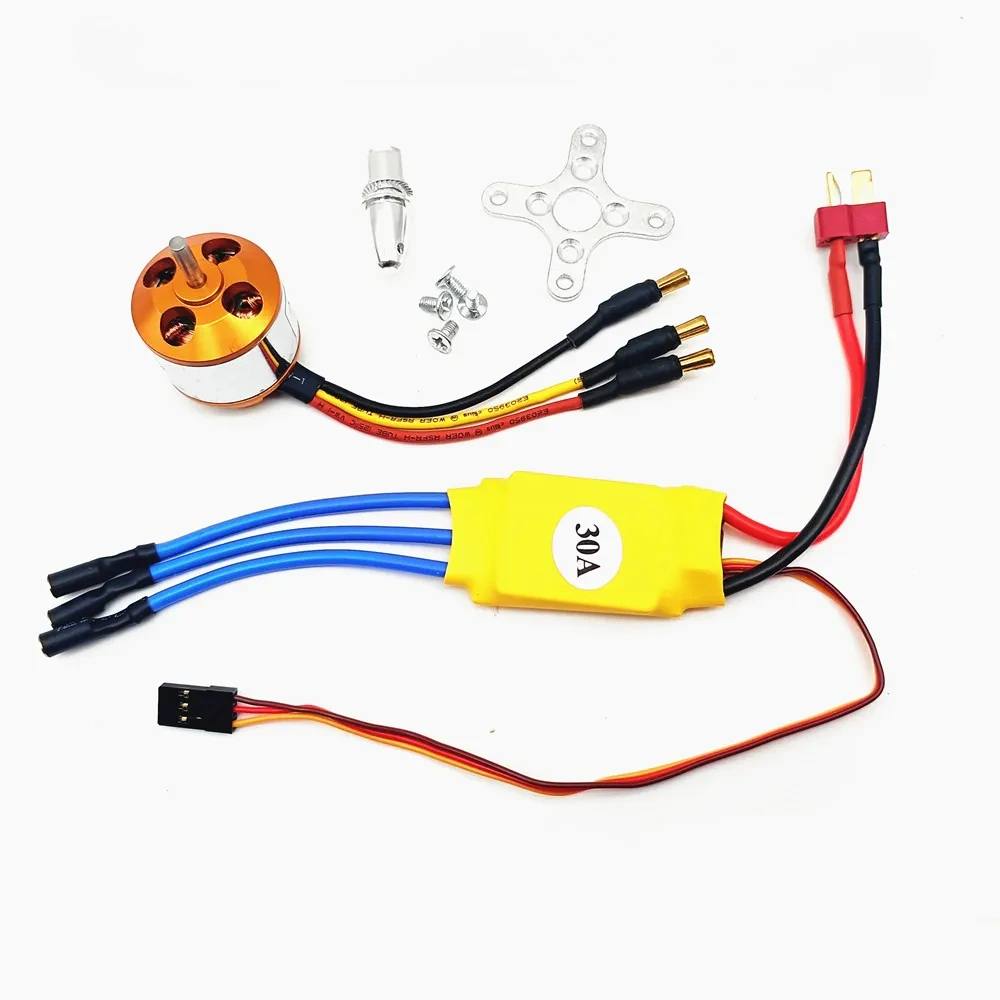

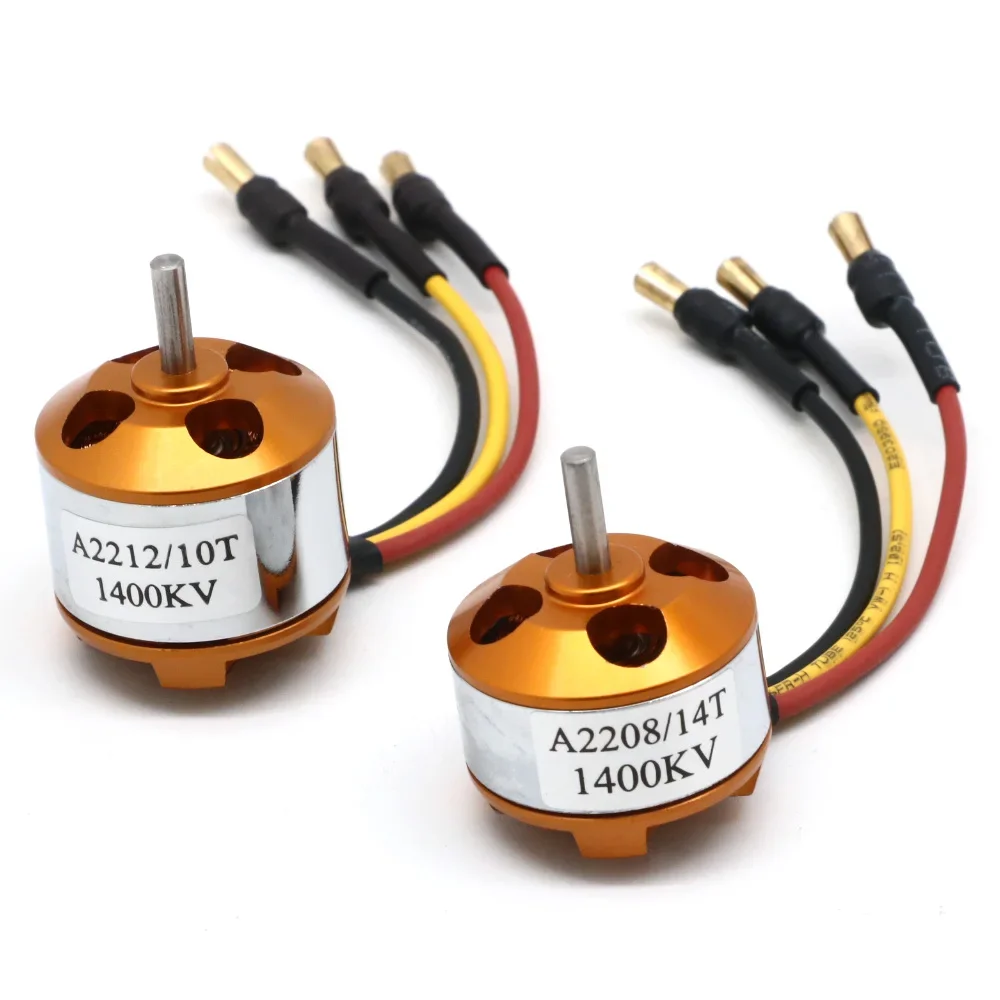

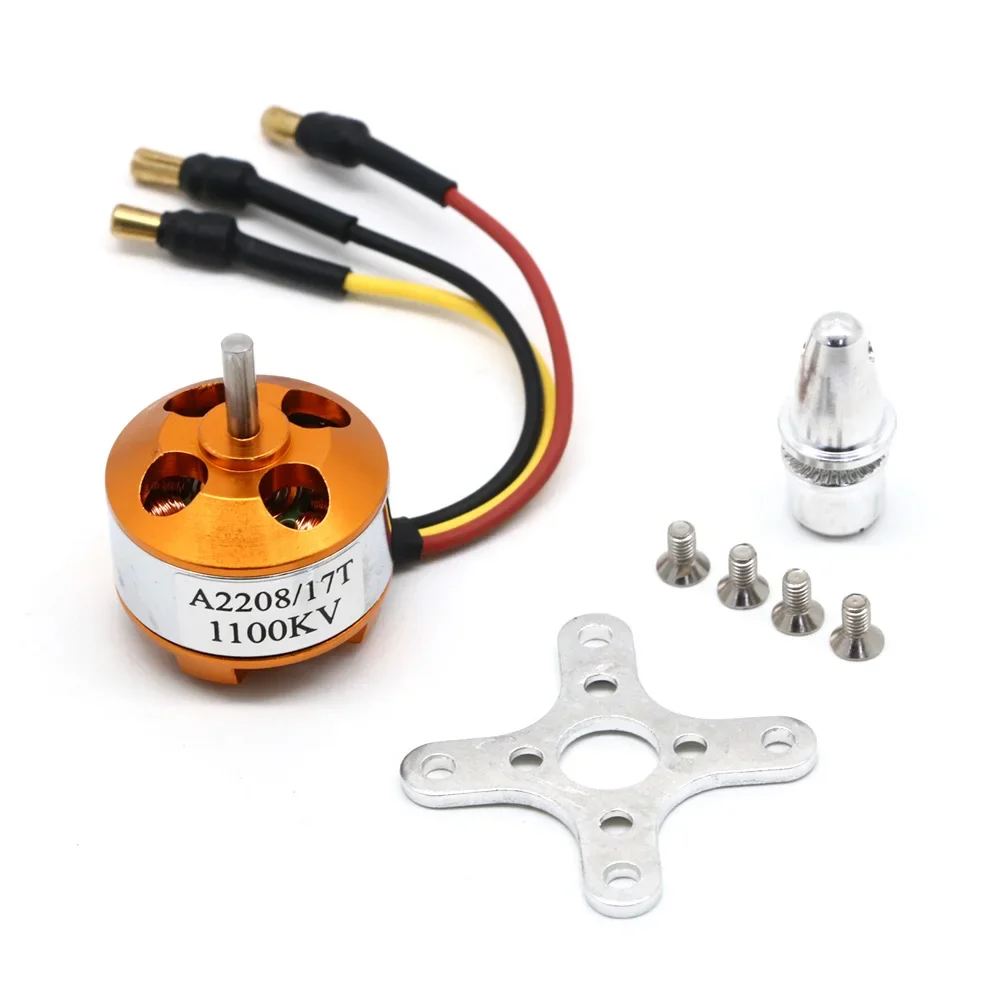

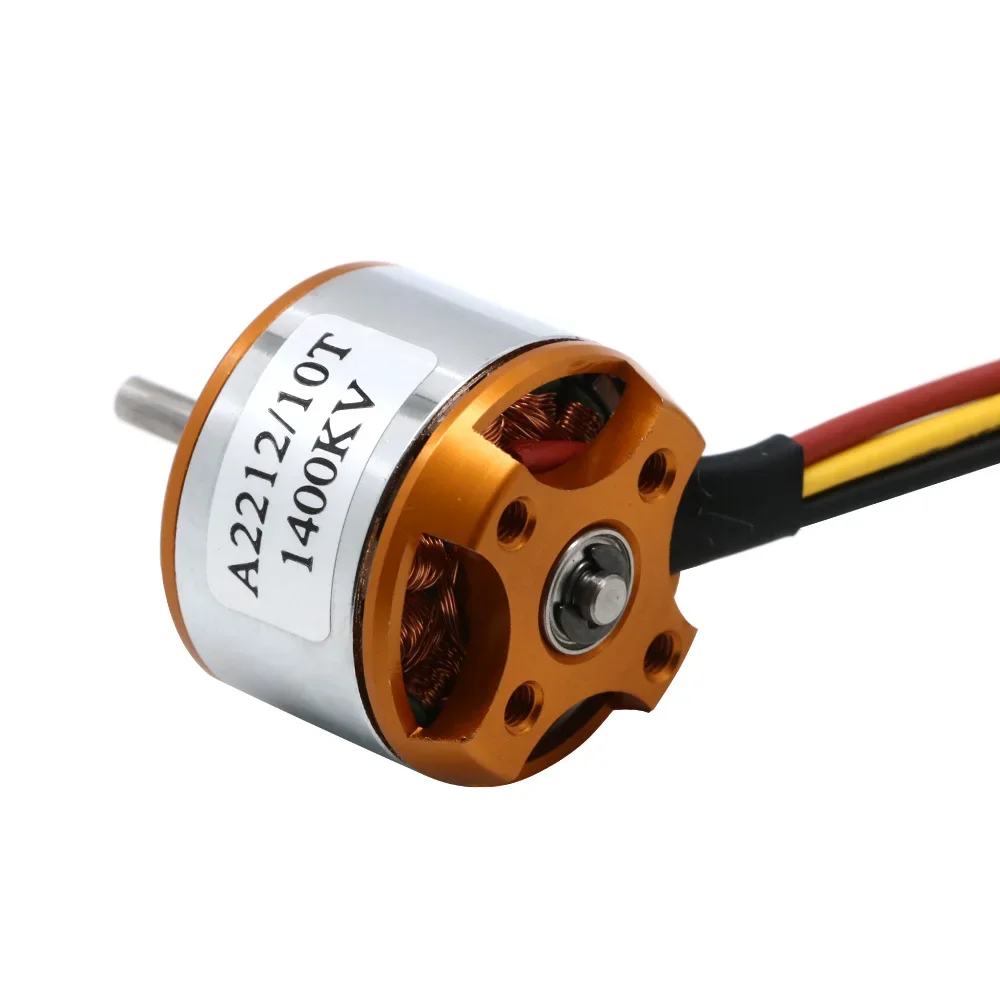

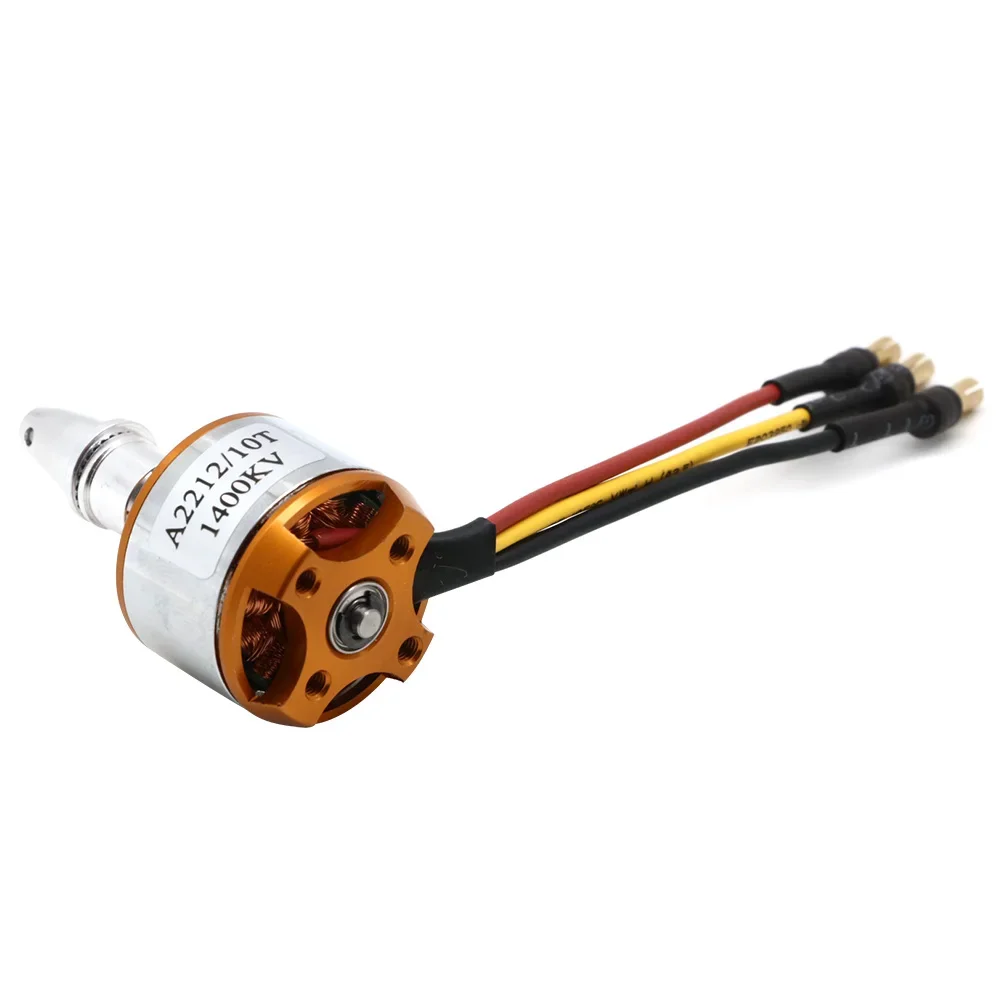

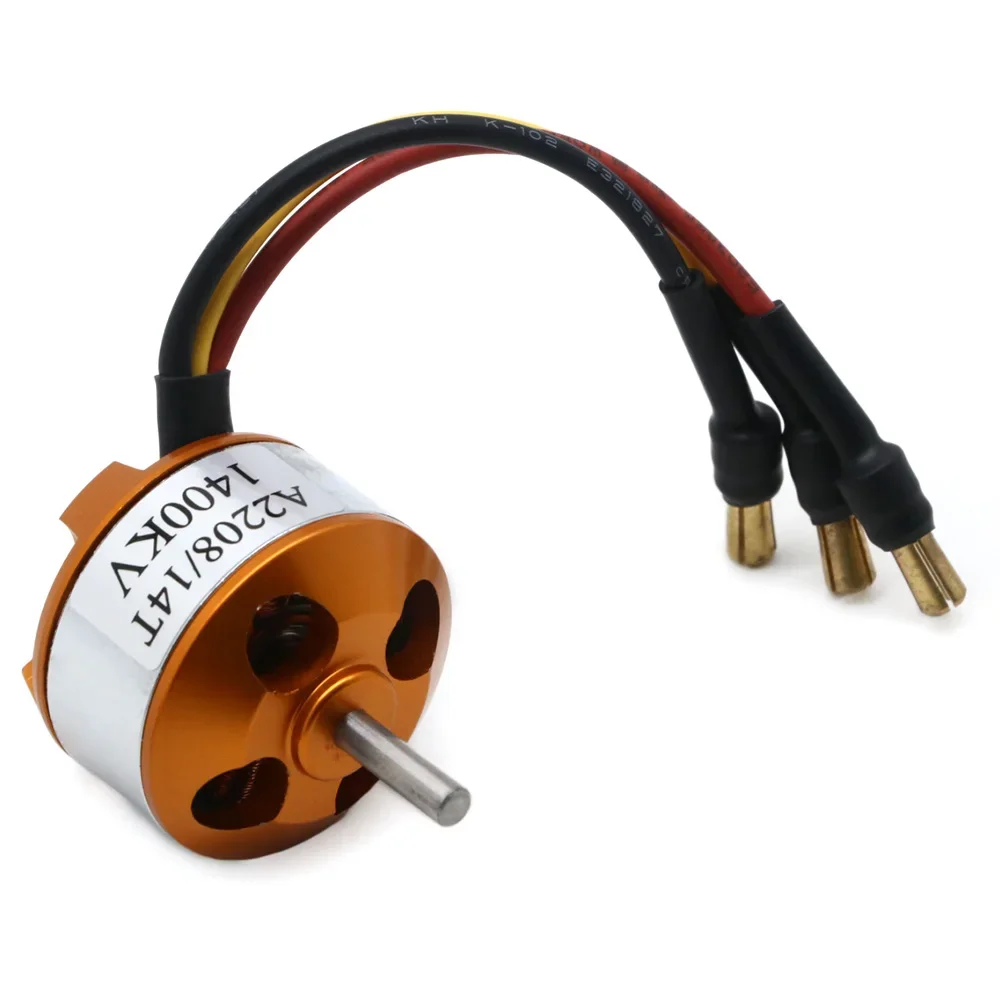

XXD A2212A2208 Brushless Motor with 30A Brushless ESC Motor Speed Controller
Upgrade your RC FPV drone with the XXD A2212A2208 brushless motor, featuring a range of KV options from 1000KV to 2450KV. This motor is paired with a 30A brushless ESC motor speed controller, designed for reliable and efficient performance. Key features include:

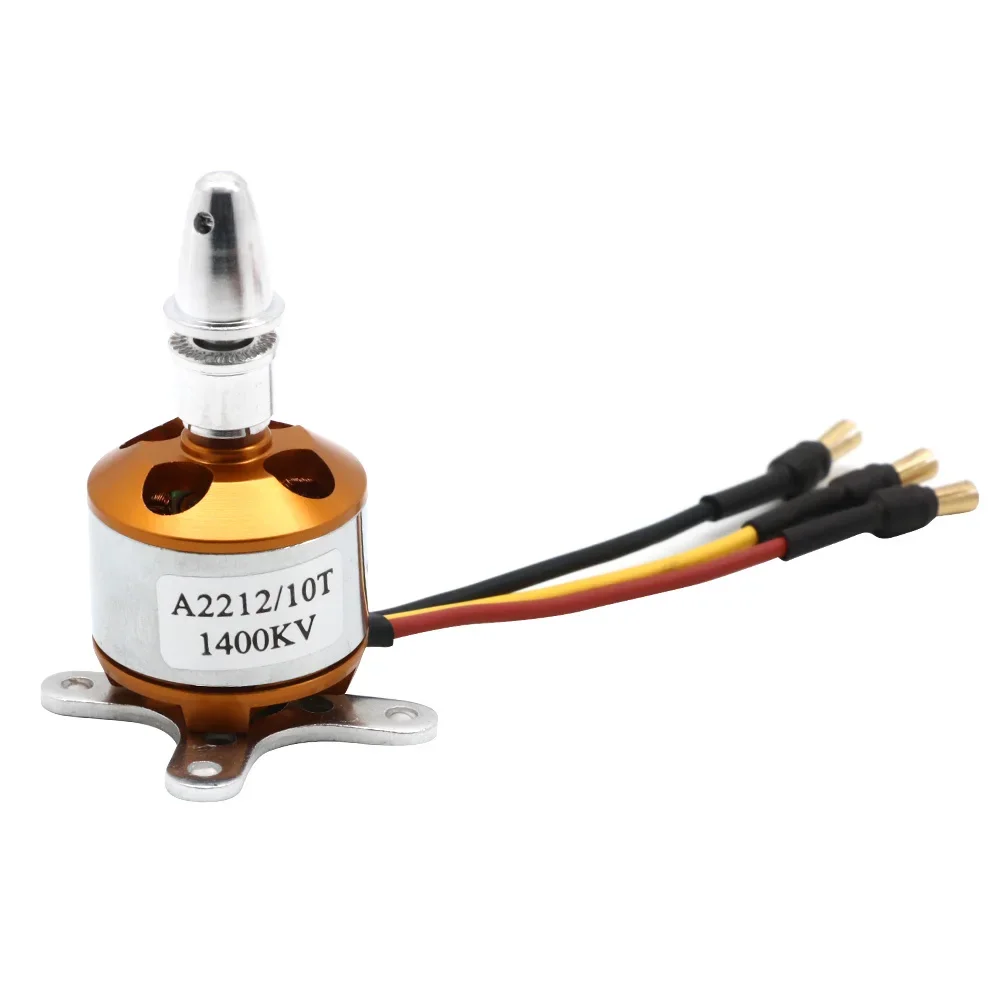

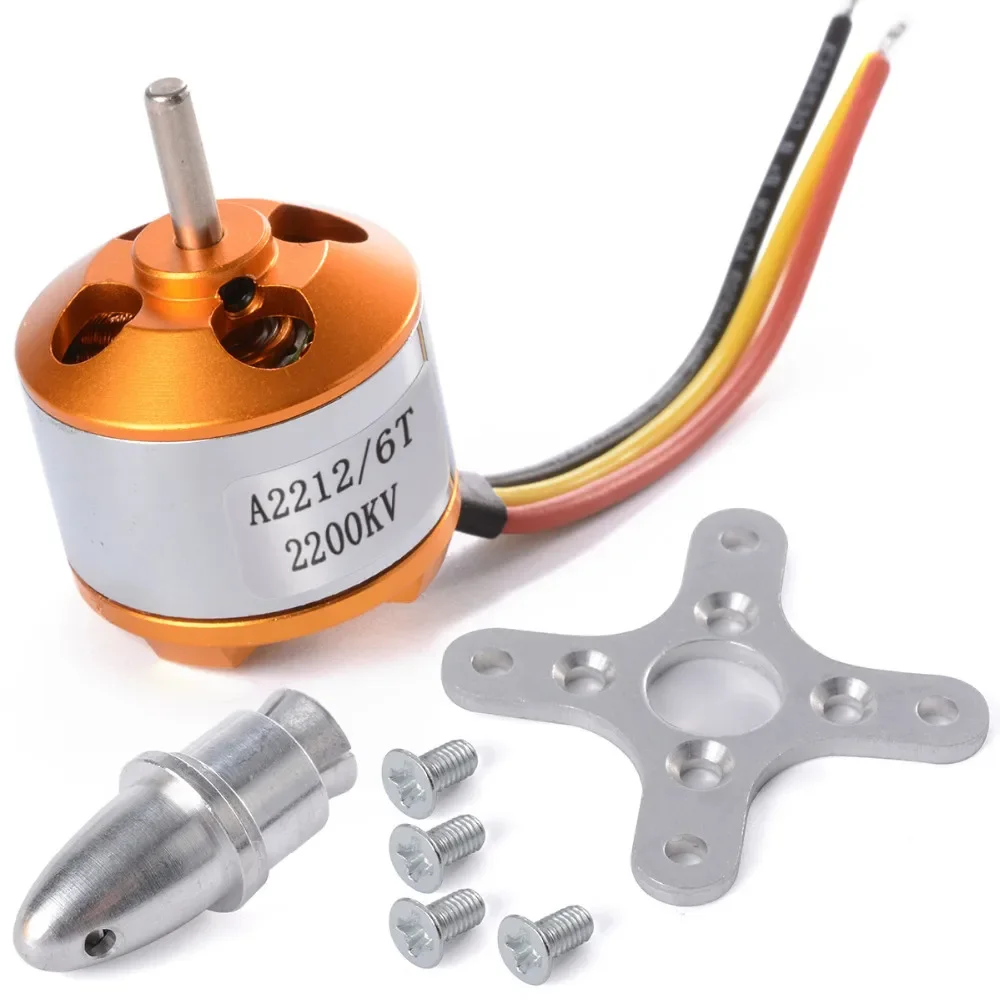

- Motor: A2212/A2208
- RPM/V: 1000KV, 1100KV, 1400KV, 2200KV, 2450KV
- Weight: 47g
- Motor Dimensions: 27.5mm x 30mm
- Shaft Size: 3.17mm
- Battery Operating: 2-3 Lipo
- Current: 1.4A
- Peak Amps: 14-22A

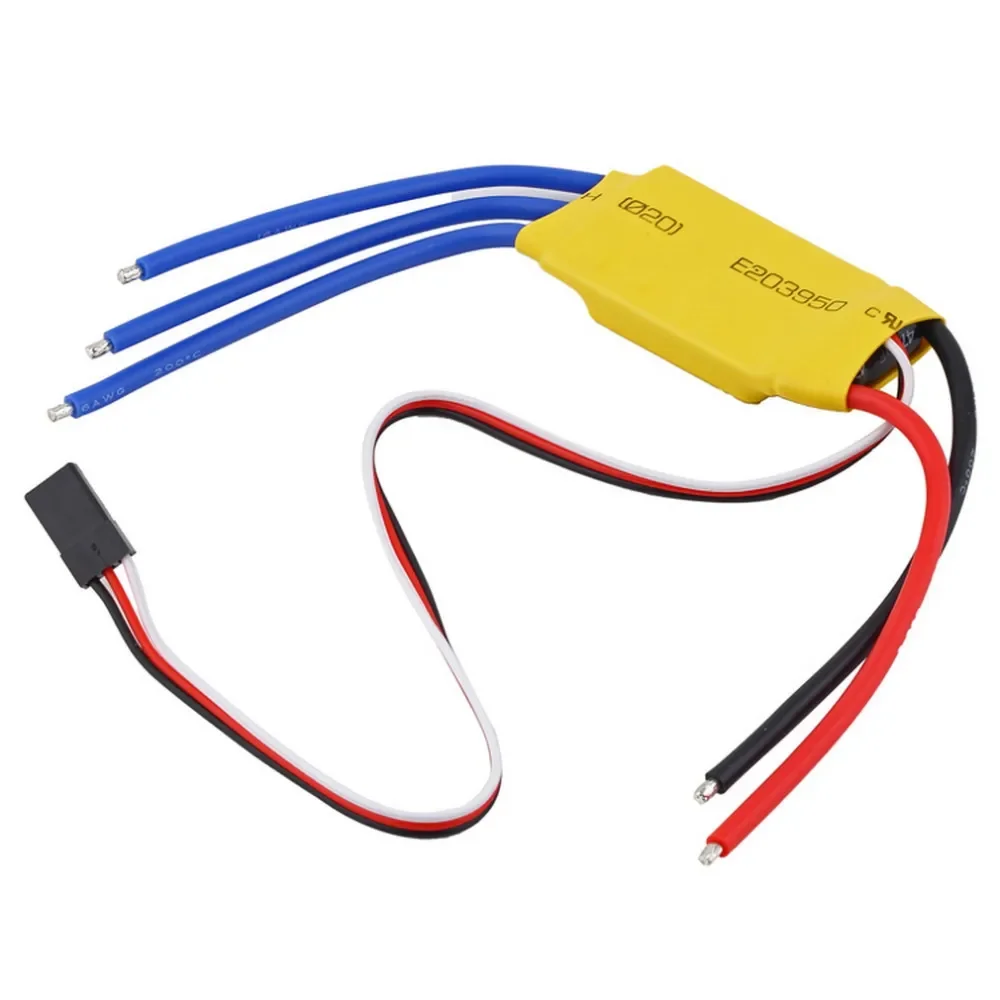

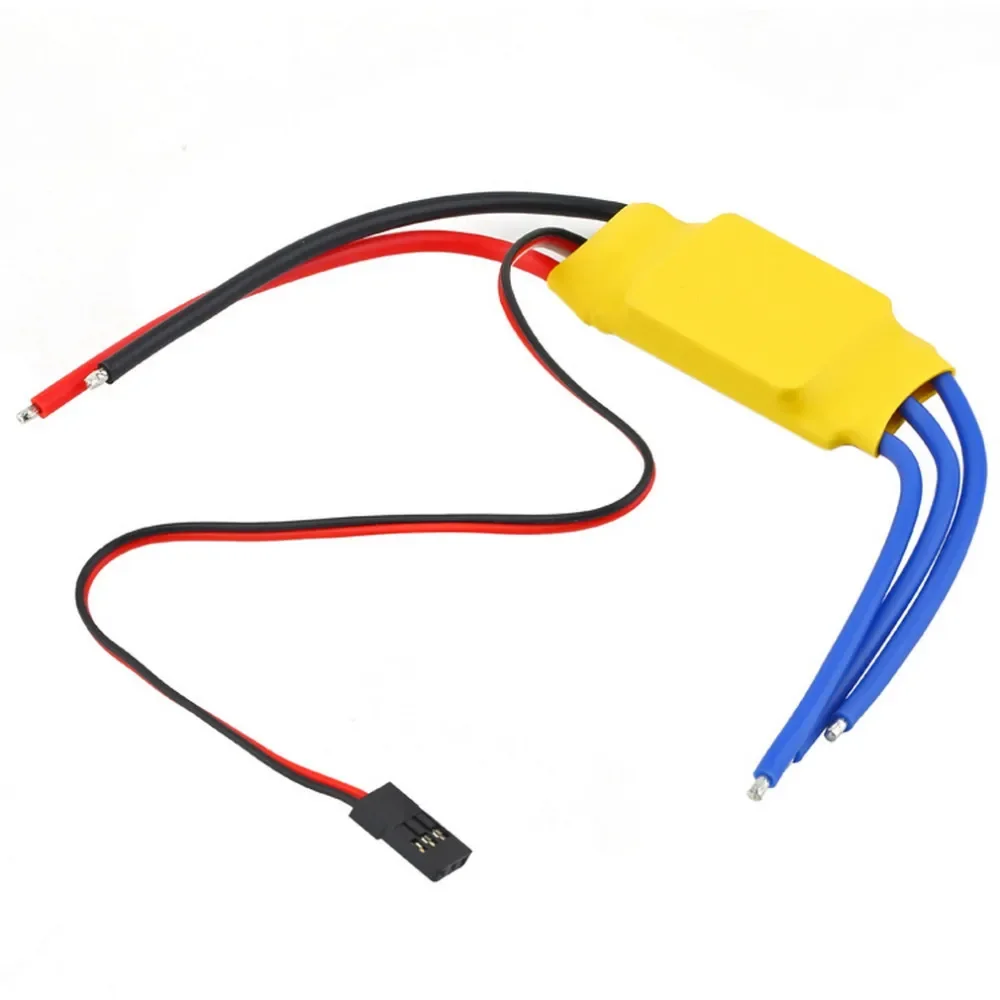

- ESC:

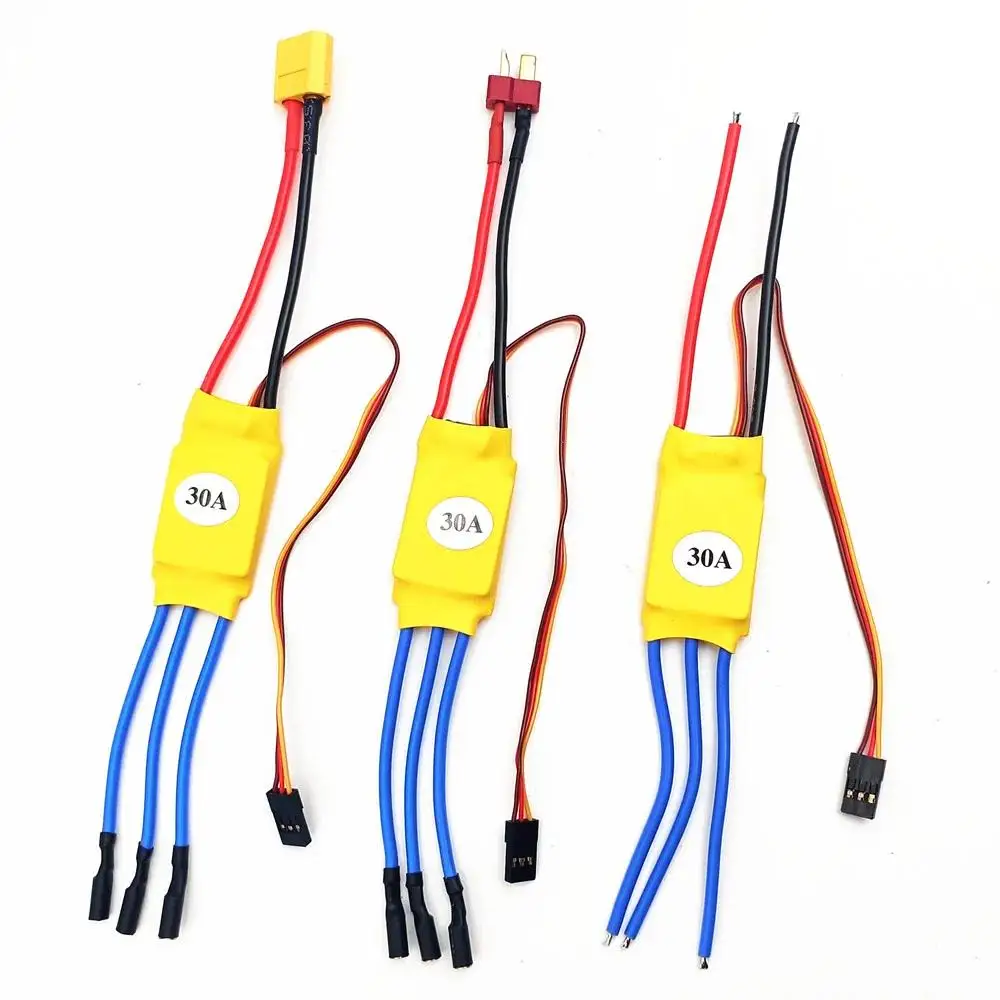

- Items: 30A
- Weight: 23g
- Dimensions: 45.0mm x 24.0mm x 9.0mm
- Current (A): 30-40
- BEC: 3A
- PWM: N/A
- Li-Po: 2-3 cells; Ni-Mh/Ni-cd: 4-10 cells
- Constant current 30A Max 40A <10s
- Li-Poly 2-3 cells; Ni-MH 4-10 cells Auto Detect
- Auto Low battery Slow down at 3.0V/cell Lipo, cut-off at 2.9V/cell Lipo
Note: Timing and PWM can be programmable if required. Currently, we just want to keep this product simple and easy to use for beginners.























B***n –
arrived quickly and undamaged. they are very nice and working well. the batteries are holding up very well.
A***r –
Alles Bestens.
Т***ч –
Неплохой комплект для авиамоделей из “потолочки”. Единственный минус – нет коннекторов для двигателя
