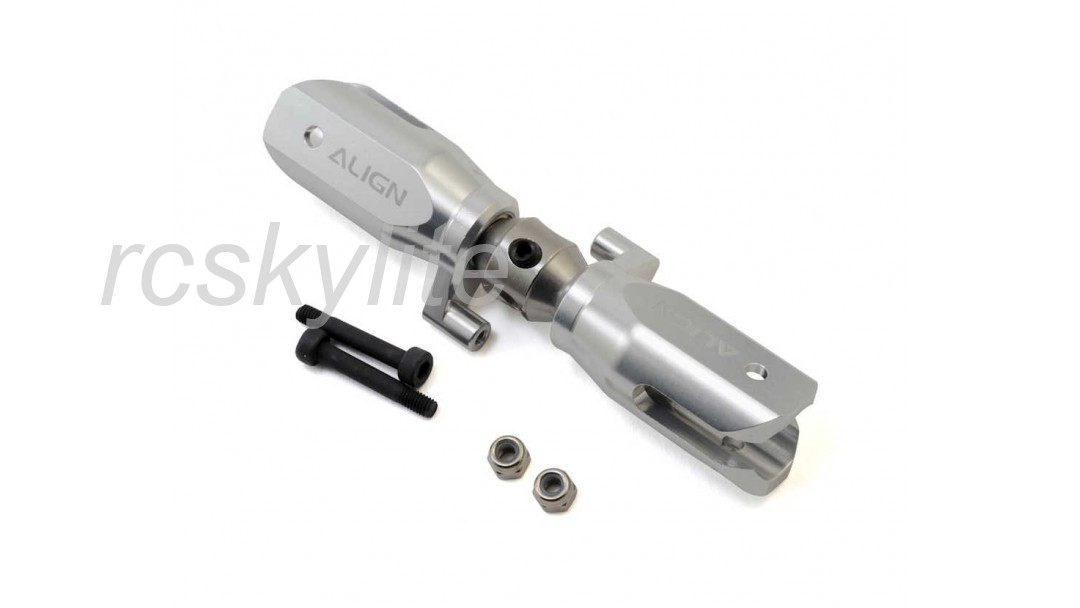

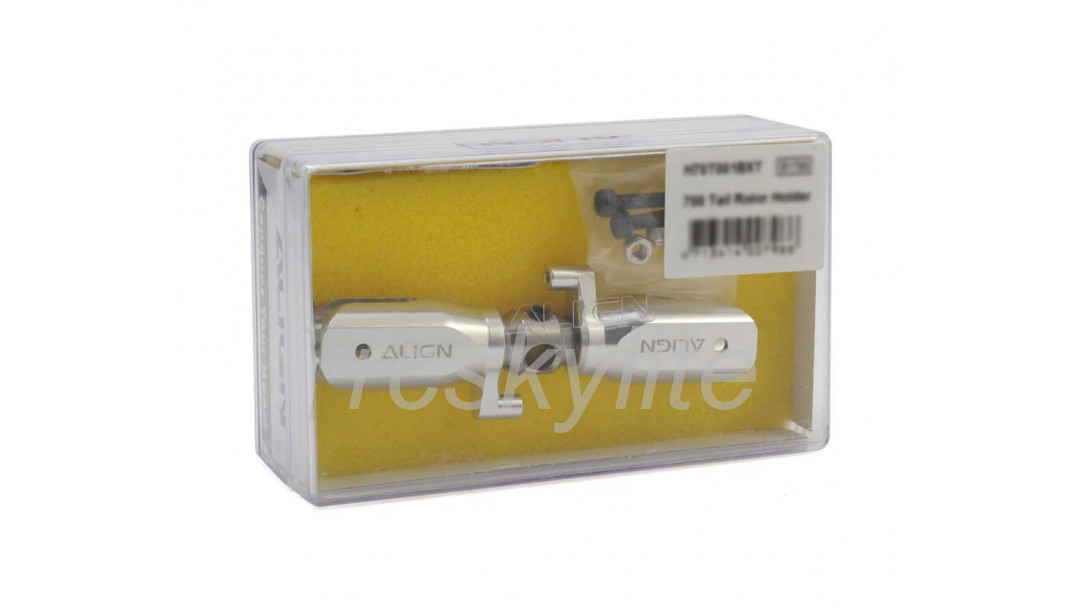

Align 700-800 Tail Rotor Holder H70T001BX

Description

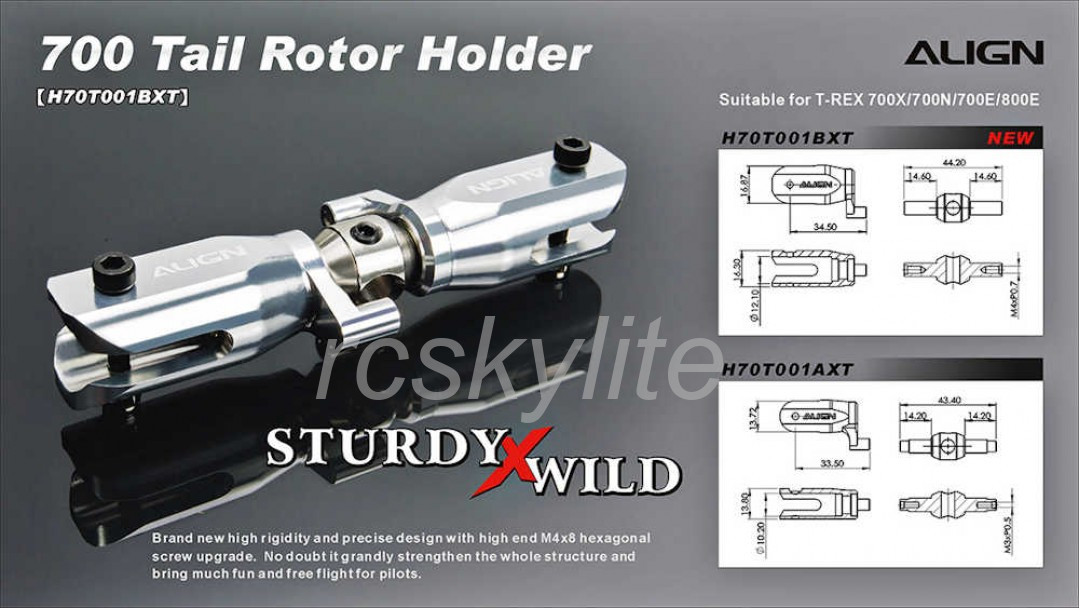

Align 700-800 Tail Rotor Holder H70T001BX is a CNC-machined, high-rigidity tail rotor holder designed for the T-REX 700, 700X, 700N, 700XN, 760X, and 800E Series. It features a precise design with an upgraded M4x8 hexagonal screw setup for improved strength and fit.

Specifications:

• Process: CNC
• Metal Tail Rotor Holder x 2
• 700 Tail Rotor Hub x 1
• Bearing MR106ZZ C0 x 4 (6x10x3mm)
• Thrust Bearing F6-12M x 2
• Tail Pitch Control Link x 2
• M4 Washer x 2 (4x8x1mm)
• M4 Set Screw x 1 (M4x4mm)
• Socket Button Head Screw x 2 (M4x8mm)
• Socket Collar Screw x 2 (M2.5x8mm)
• Socket Collar Screw x 2 (M3x19mm)
• M3 Nut x 2
• Blade Clip Replacement: 550-800 Tail Blade Clips – H70T004XXW
• Blade Clip Replacement: 700-800 Blade Clips – HN70H001XXW
• Bearing Replacement: MR106ZZ – H60106
• Bearing Replacement: F6-12M Thrust Bearing 5x10x4mm – H70R002XX
