Description
XXD A2212 2212 1400KV Brushless Motor 30A ESC Motor SG90 9G Micro Servo 8060 Propeller Set for RC Fixed Wing Plane
This comprehensive kit is designed for RC fixed-wing plane enthusiasts, featuring a high-performance 1400KV brushless motor, a 30A ESC, a SG90 9G micro servo, and an 8060 propeller set.
Key Features:
- High-efficiency 1400KV brushless motor with 80% efficiency and 4-10A current capacity

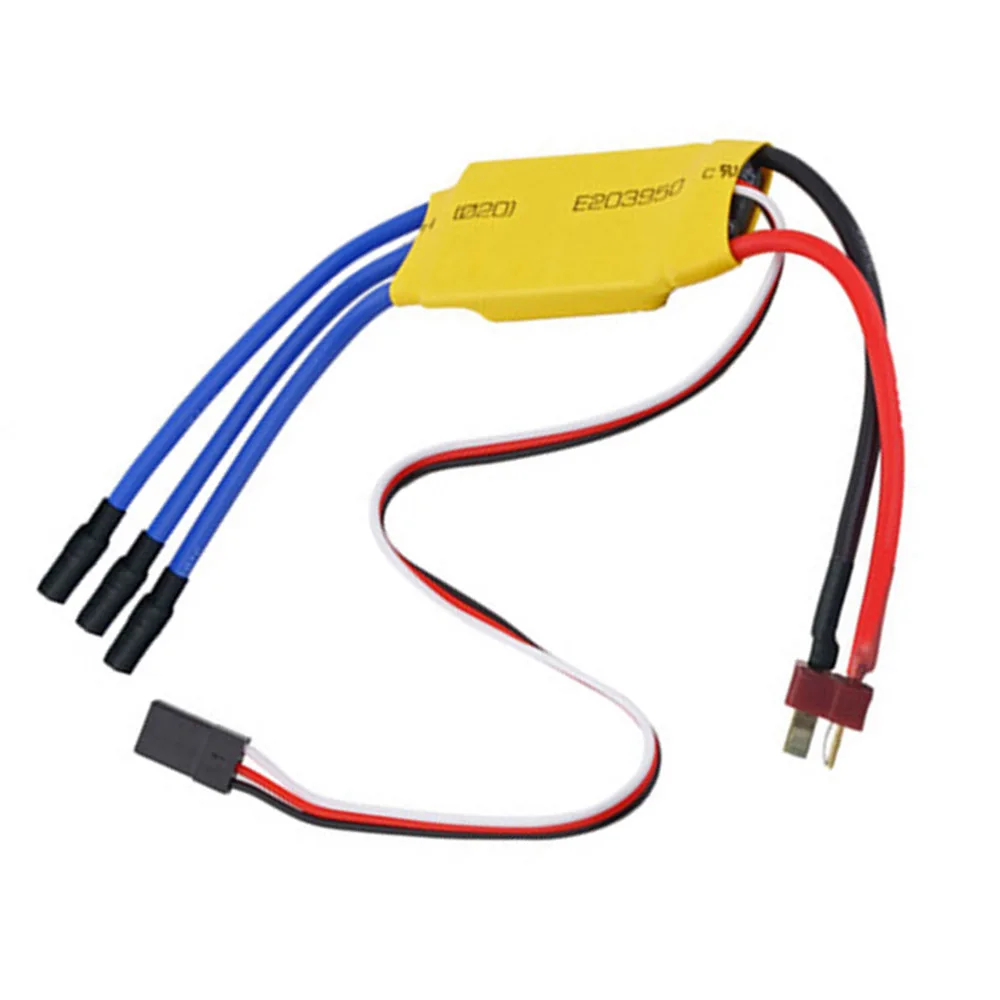

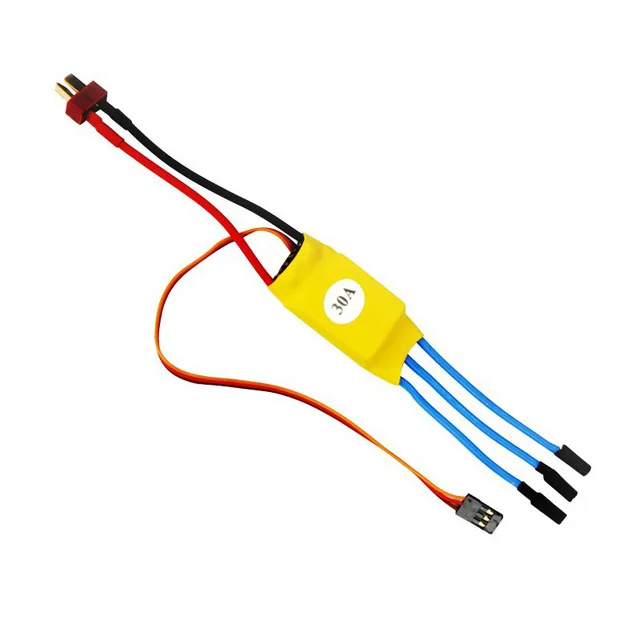

- 30A ESC with continuous output and burst output up to 40A for 10 seconds
- SG90 9G micro servo with 1.5 kg/cm torque and 0.12 sec/60 deg no-load speed
- 8060 propeller set for optimal performance
Technical Specifications:
| Motor Specifications | Value |
|---|---|
| KV | 1400 |
| Max Efficiency | 80% |
| Max Efficiency Current | 4-10A |
| No Load Current @ 10V | 0.5A |
| No. Of Cells | 2-3 Li-Poly |
| Motor Dimensions | Φ27.5 x 30mm |
| Shaft Diameter | Φ3.17mm |
| Weight | 60.1g |
| ESC Specifications | Value |
| Output | Continuous 30A, Burst 40A up to 10 Secs. |
| Input Voltage | 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery |
| BEC | 2A / 5V (Linear mode) |
| Max Speed | 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM |
P***h –
Все як в описі. Рекомендую
М***ч –
Спасибки, всё ок!
Б***ч –
Пришло в срок,все работает.Комплект полный.
a***r –
El equipo llego bien, protegido y buen aspecto! no he tenido tiempo de probarlo
L***o –
tutto come da descrizoine. un po sbilanciato ma per quello che a me serve è ok.
S***g –
Works as expected
